SATEL ETHM-1 Plus 7
SMS messaging [SMS messaging] – if this option is enabled, the INT-GSM module can
send notifications about alarm system events in the form of SMS messages.

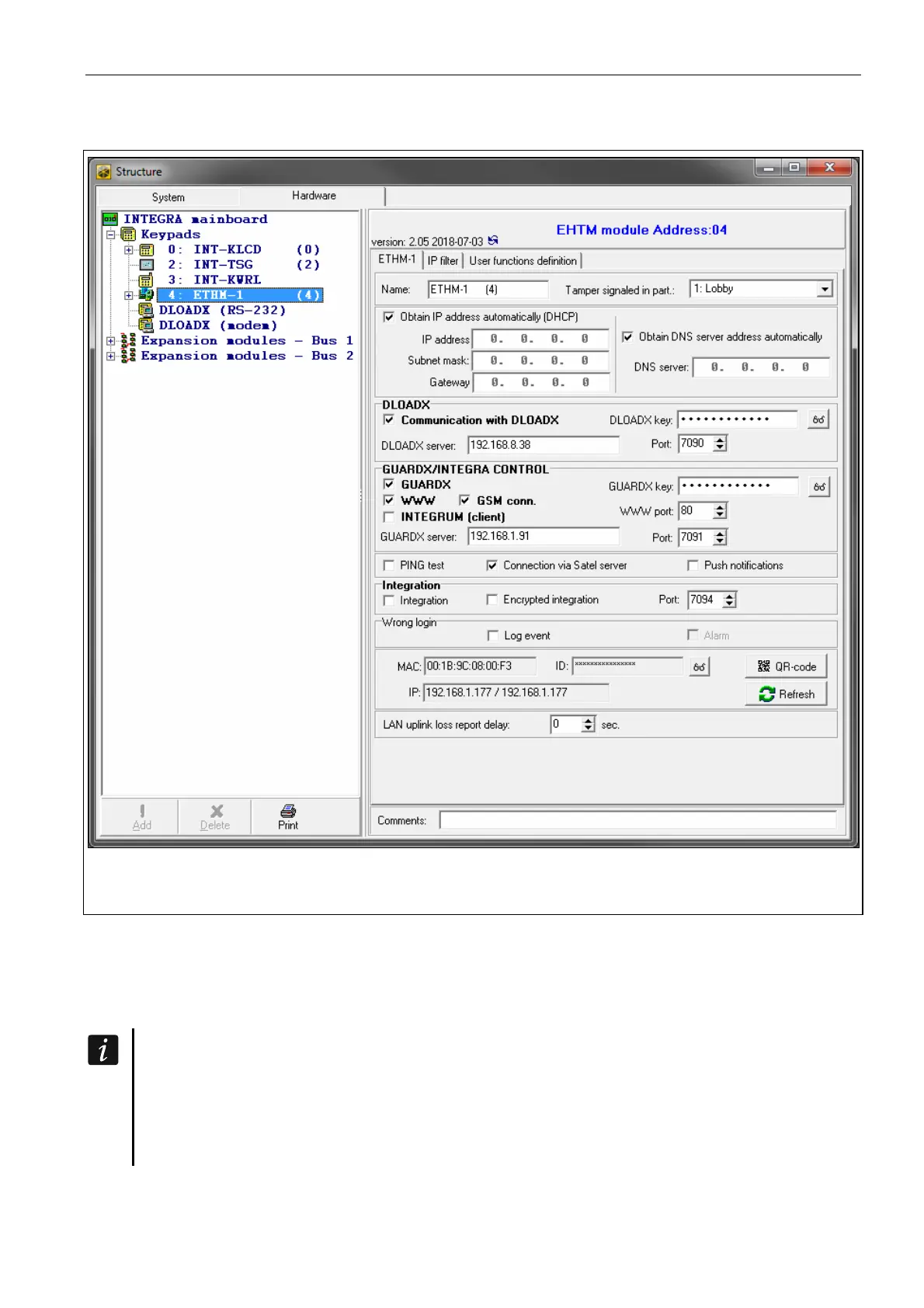

Fig. 5. DLOADX program: settings of the module connected to INTEGRA / INTEGRA Plus
control panel (module is identified as “ETHM-1”).
Network settings
Obtain IP address automatically (DHCP) [DHCP] – if this option is enabled, the module will
automatically download data on IP address, subnet mask and gateway from the DHCP
server (in such a case, you do not have to program these parameters).
The IP address assigned to the module can be read:
 in the keypad: using the IP/MAC/IMEI/ID user function available in the TESTS
submenu. For a detailed description of the function please refer to the user manual
for the control panel.
 in the DLOADX program: below the module parameters and options (Fig. 5 and 6).
IP address – module IP address.
Subnet mask [Netmask] – the mask of the subnet in which the module is working.

Satel ETHM-1 Plus Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	70 mA
maximum current consumption	80 mA

Operating Environment

environmental class	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
