CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 44 -

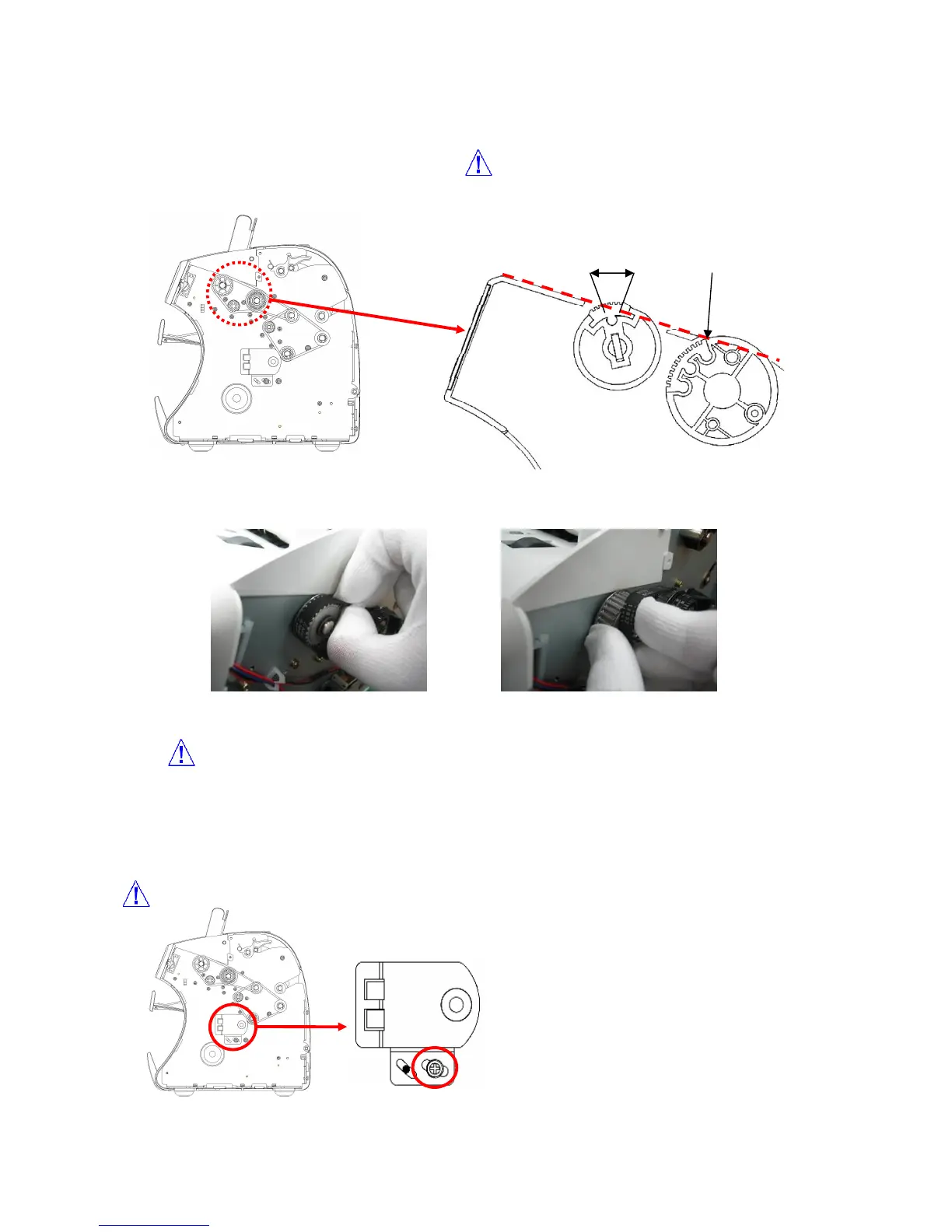

10-2. ADF & Pickup Roller Timing
10-3. Guide Selector
.
Loosen the belt and then adjust the timing.
Step 1. Loosen SCREW slightly.
4 Tooth ± 1 0 Tooth
ADF_ROLLER-P
PICK_UP_ROLLER-P
If the timing is not adjusted properly, the problem such as NO ID, OVER RUN and so on
could happen.
CAUTION
Turn off the machine before adjustment.
If the notes are damaged as Jam3 often happens, Selector may be not properly adjusted.
Fit the belt on pulley.
