SBM SB-7 - Shaft Case Detector

CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 73 -

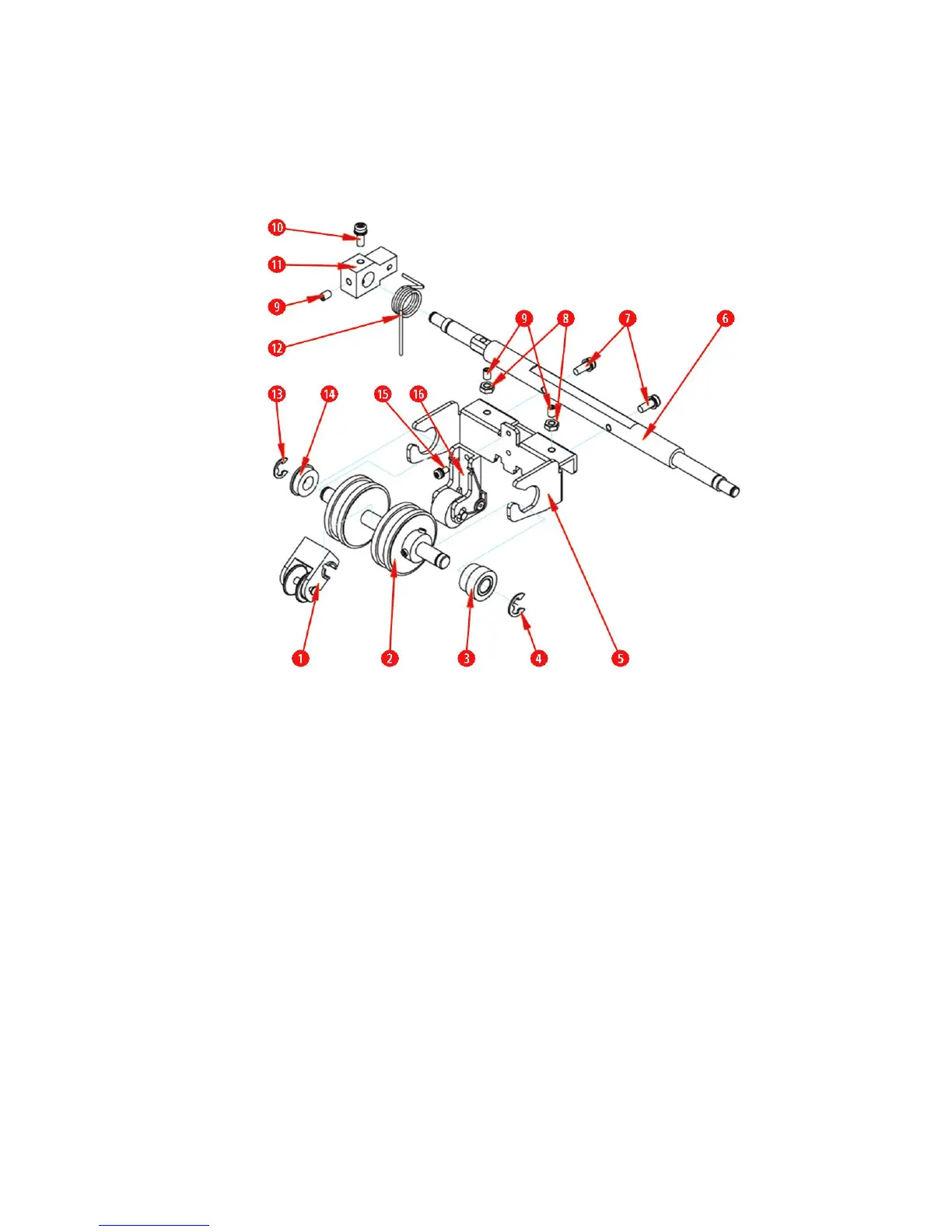

13-14. Shaft Case Detector
1 ASS'Y_GUIDE_PRESS_ROLLER_P
2 ROLLER_SEPARATOR_P
3 ASS'Y_BUSH_ONEWAY_BEARING_P
4 E_RING_Ø7(7x14x0.8)_Fe_ZB
5 BKT_SEPARATOR_P
6 SHAFT_CASE_DETECTOR
7 SCREW_M/C_PH/SWW_M4X10_Fe_Ni
8 HEX_NUT_M4X0.7_Fe_Zy
9 SCREW_SET_SIH_FP_M4x6_Fe_ZB
10
SCREW_M/C_PH/SWW_M4X20_Fe_Ni
11
ARM_ADJUST_LOWER
12
TORSION_SPRING_ADJUST
13
E_RING_Ø6(6x12x0.8)_Fe_ZB
14
BEARING_LF_1680ZZ
15
SCREW_M/C_PH/SWW_M3X6_Fe_Zy
16
ASS'Y_GUIDE_TRANSFER_ROLLER_P
