SBM SB-7 - Case Detector with MR

CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 74 -

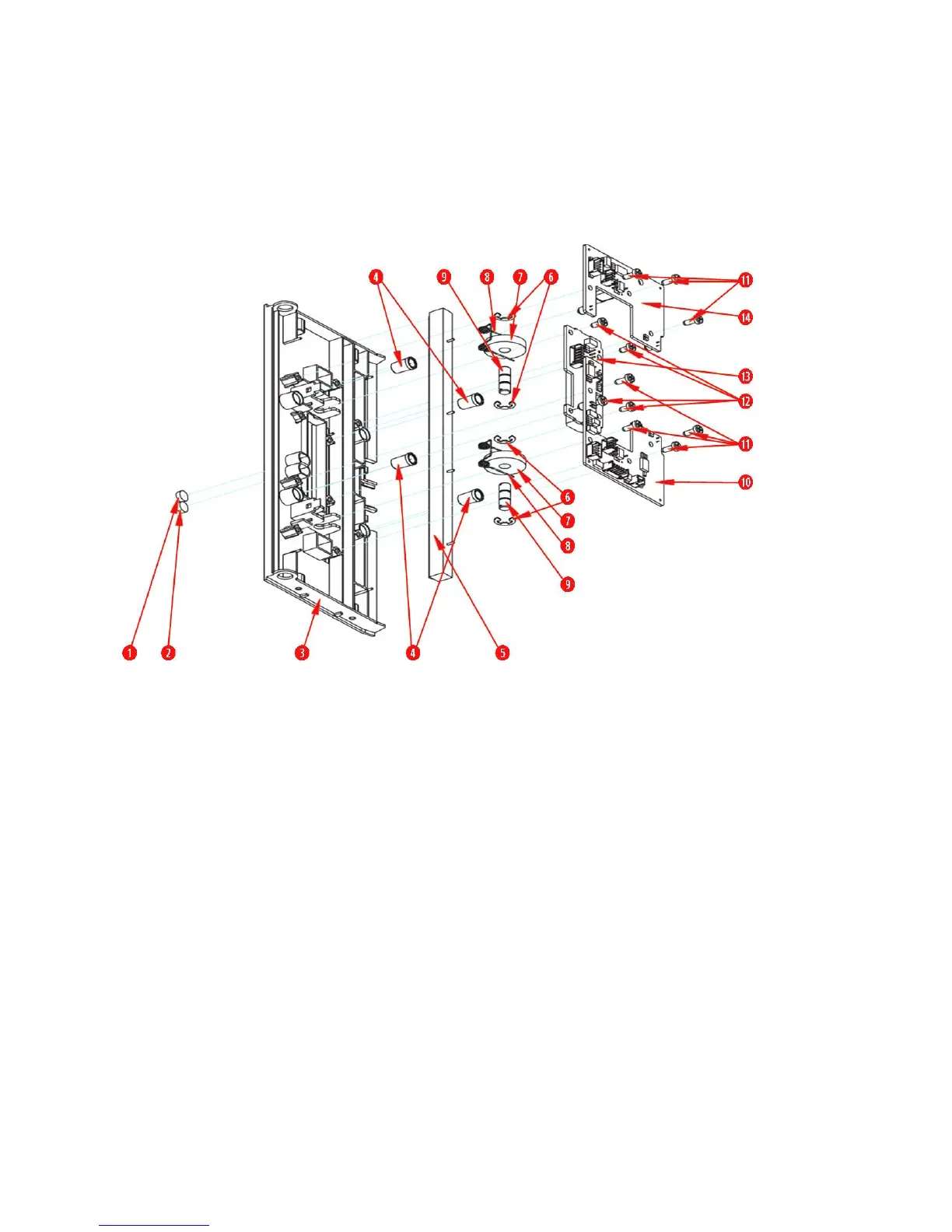

13-15. Case Detector With MR
1 UV_FILTER(N) (420nm, D7*2.5T)
2 SUV_FILTER (375nm, D7*2.5T)
3 CASE_DETECTOR
4 CAP_RP
5 ASS'Y_IR_TRN
6 E_RING_Ø5(5x11x0.6)_Fe_ZB
7 ROLLER_PINCH
8 TORSION_SPRING_PINCH_MR
9 SHAFT_PINCH_MR
10
P-MRS_L V1.4
11
SCREW_T/P_PH_T2_Ø3X8_Fe_Zy
12
SCREW_T/P_PH_T2_Ø3X6_Fe_Zy
13
P-MRA V1.3
14
P-MRS_R V1.3
