CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 62 -

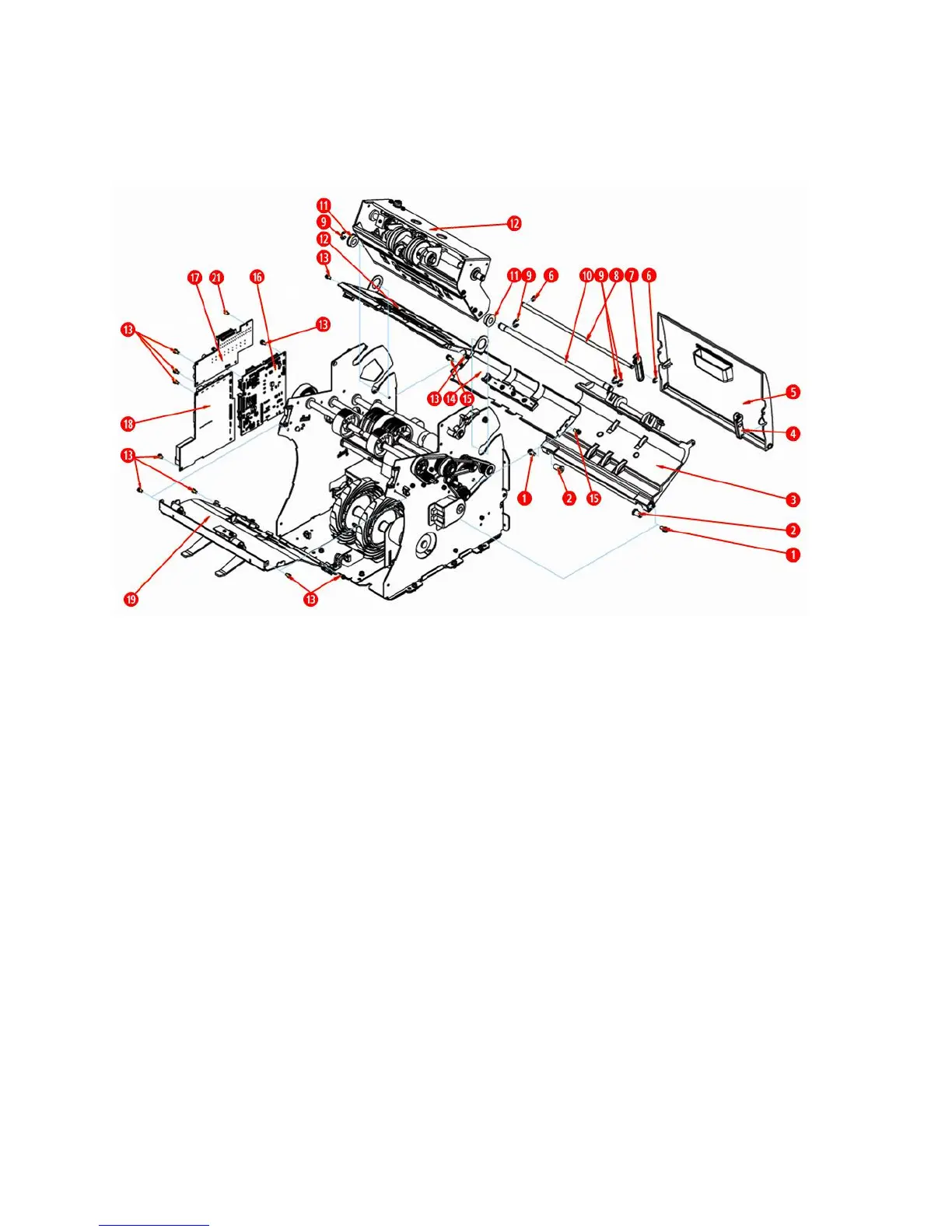

13-2. Ass'y Exp View
1 SCREW_M/C_PH/SWW_M4X8_Fe_Ni
2 PIVOT_HINGE_LOWER
3 ASS'Y_GUIDE_LOWER
4 LINK_COVER_REAR_L
5 COVER_REAR
6 E_RING_Ø4(4x11x0.6)_Fe_ZB
7 LINK_COVER_REAR_R
8 SHAFT_COVER_REAR
9 E_RING_Ø6(6x12x0.8)_Fe_ZB
10
SHAFT_COVER_TOP
11
BUSH_HINGE
12
ASSY'_PLATE_GUIDE_UPPER_P
13
SCREW_M/C_PH/SWW_M3X6_Fe_Zy
14
ASS'Y_PLATE_GUIDE_LOWER_P
15
SCREW_M/C_PH/SWW_M4X8_Fe_Ni
16
P-MAIN V1.4
17
P-AMP V1.3
18
P-POWER_IO V1.5
19
ASS'Y_PLATE_REINFORCE
20
ASS'Y_COVER_TOP
21
SCREW_M/C_PWH_M3X6_Fe_Ni
