CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 63 -

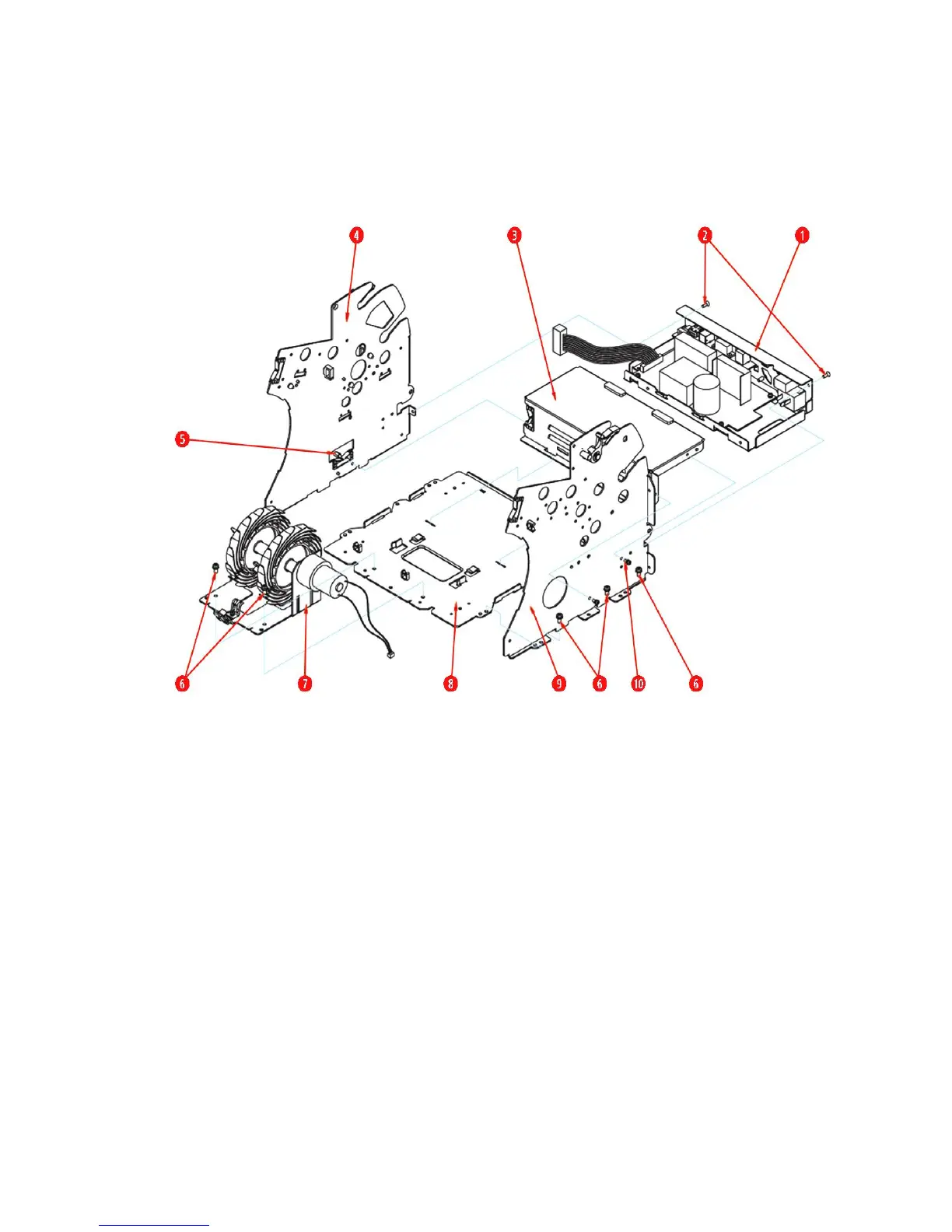

13-3. Frame Exp View
1 ASS'Y_BKT_SMPS_BOTTOM
2 SCREW_M/C_FH_M3X8_Fe_Ni
3 ASS'Y_BKT_SMPS_TOP
4 ASS'Y_PLATE_SIDE_L
5 SUPPORT_PCB
6 SCREW_M/C_PH/SWW_M4X8_Fe_Ni
7 ASS'Y_WING_STACKER_SENSOR
8 ASS'Y_PLATE_BASE_P
9 ASS'Y_PLATE_SIDE_R
10
SCREW_M/C_PH/SWW_M3X6_Fe_Zy
