SBM SB-7 - Reject Pocket Sensor Adjustment

CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 48 -

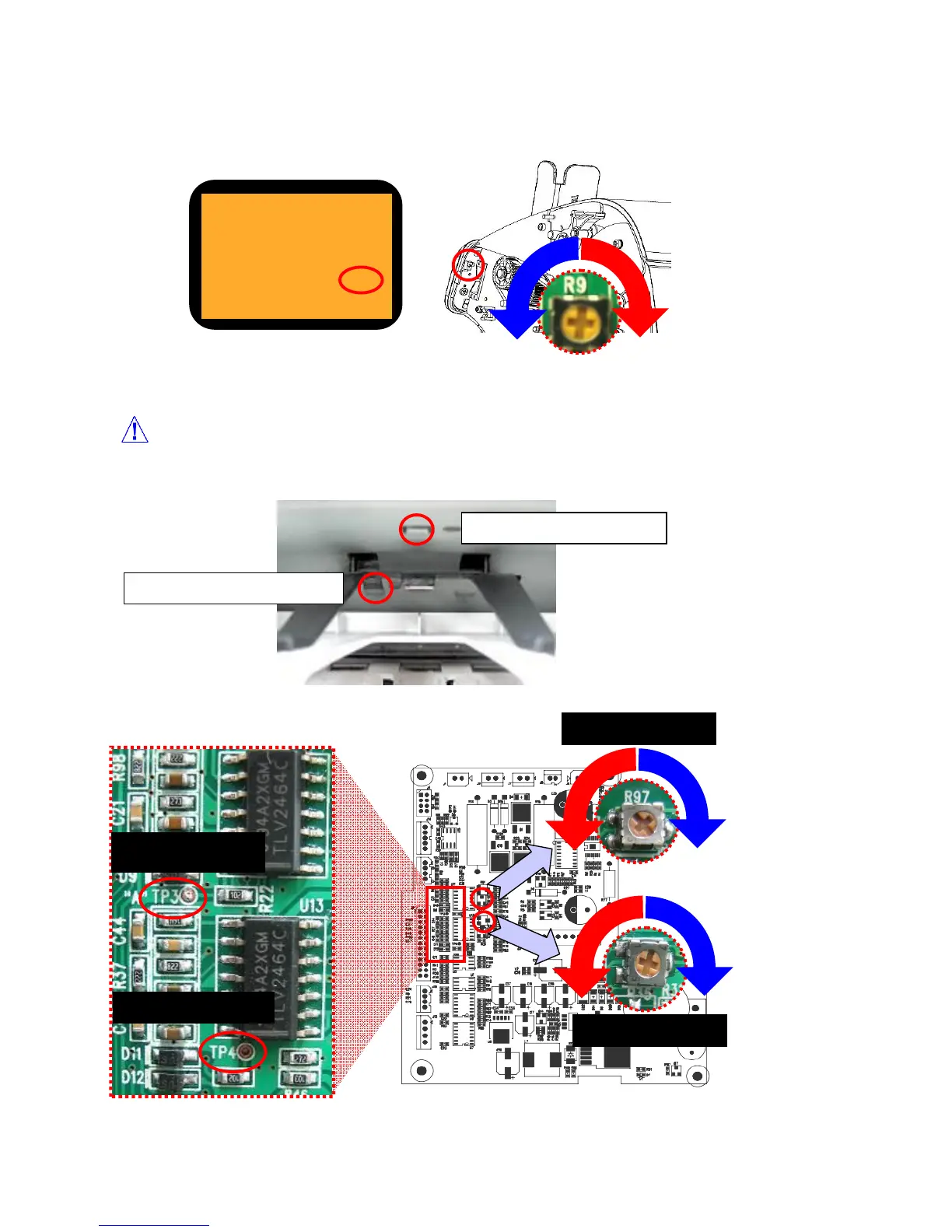

10-6. Reject Pocket Sensor Level
10-6-1. Reject Sensor
10-6-2. Test Point and adjust Point
Test Point 3 : Reject F
Test Point 4 : Reject R
Low
High
Low
High
Step 4. Adjust R9 (Variable Resistor) so that DIFFERENCE can be from 190 to 210.
HOPPER ON : 213
HOPPER OFF. : 13
DIFFERENCE .: 200
R9
High
Low
Reject F (Front Sensor)
Reject R (Rear Sensor)
Adjust point: Reject F
Adjust Point: Reject R
If LED lights even though there are no notes on the REJECT POCKET or if LED does not light
even though there are notes on the REJECT POCKET, adjust sensitivity of REJECT
SENSOR.
