9-4. IR SHADING DARK
<IR SHADING (DARK) SHEET: SBM IR SHADING V3.0 Black>
Prepare to have IR SHADING DARK
Open Front Cover and
brush the dust.

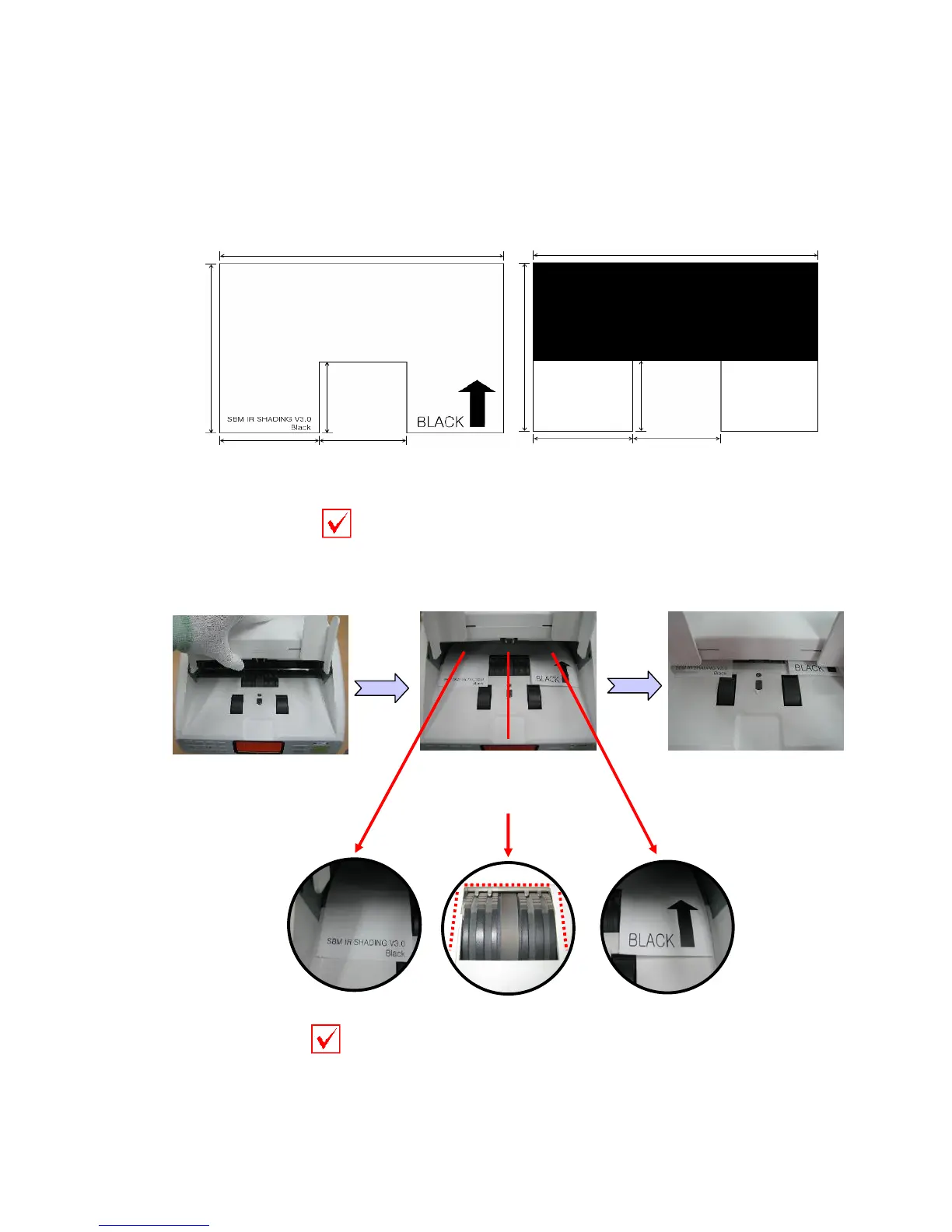

Place IR SHADING SHEET in
the middle of the Hopper like
the picture.
Close Front Cover
After prepare IR SHADING, refer to the below and have a shading
202 mm
This side faces upward
This side faces downward
145 mm
62 mm
70 mm
62 mm
Shading sheet provided from SBM should be used
