SBM SB-7 - Page 40

CURRENCY DISCRIMINATION COUNTER SB-7 (SB-1050) SERVICE MANUAL
- 40 -

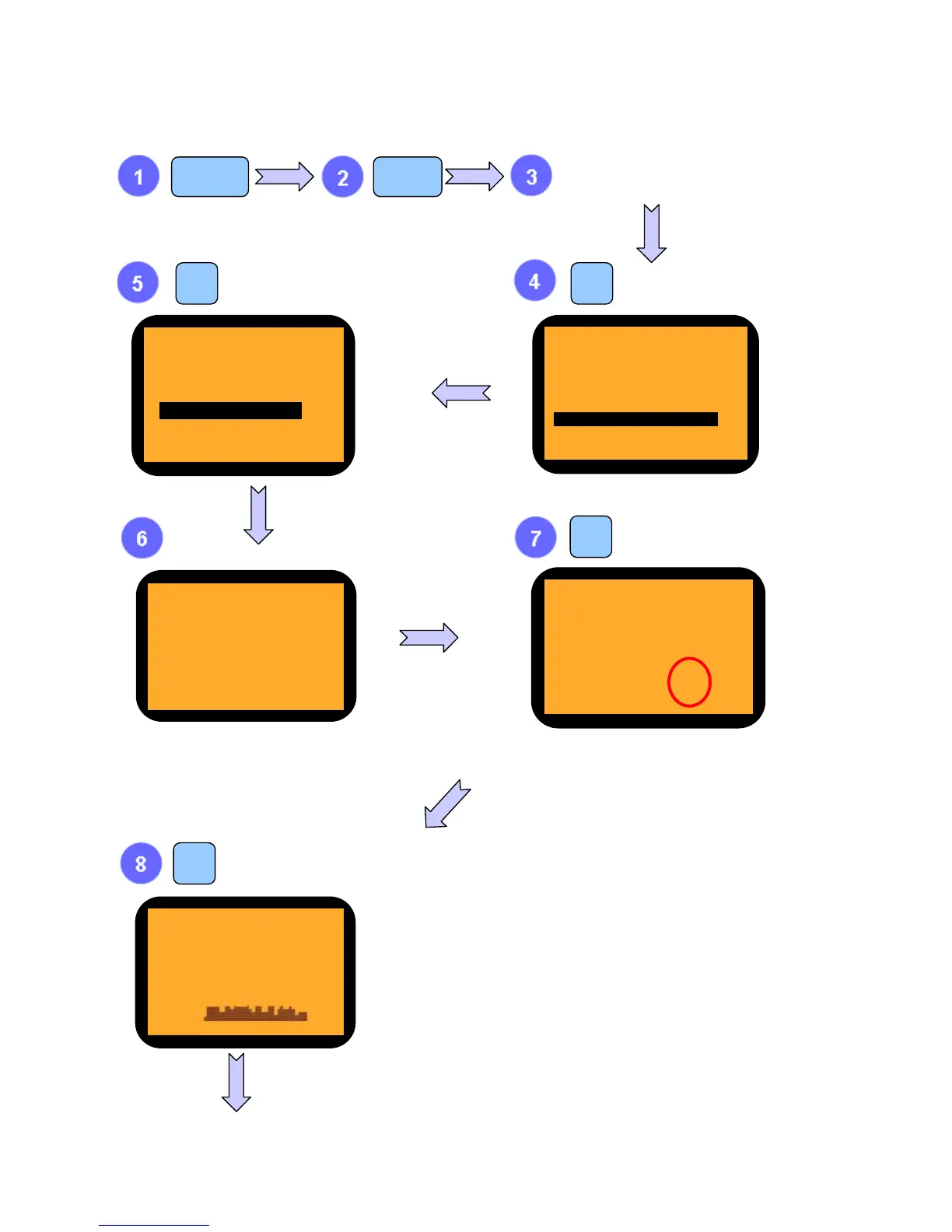

Check the result if it is ‘OK’
If ‘▼’ is pressed, shading value is
displayed.
To skip, press ‘9’
This shows DARK LEVEL.
If ‘▼’ is pressed, BLACK LEVEL is displayed.
DARK
500 -
Wait.
▼
IR SHADING
WAIT . . ABOUT 5 SEC
IR SHADING
MIN MAX AVG UNI
W : 109 154 126 77
B : 24 24 24 100
Dark : OK
BLACK : OK
DISTANCE : OK
MODE
CODE [ ***** ]
6 3
9 MENU
SERVICE MENU1
1. ERROR STOP CTRL.
2 .SENSOR LEVEL
3. SYSTEM REPORT
4. SET A/S CALL No.
5. SET MACHINE S/N
6. SHADING_______________
7. SENSOR SELECT
SHADING
1. UV SHADING
2. MR SHADING
3. IR SHADING (WHITE)
4. IR SHADING (DARK)
▼
