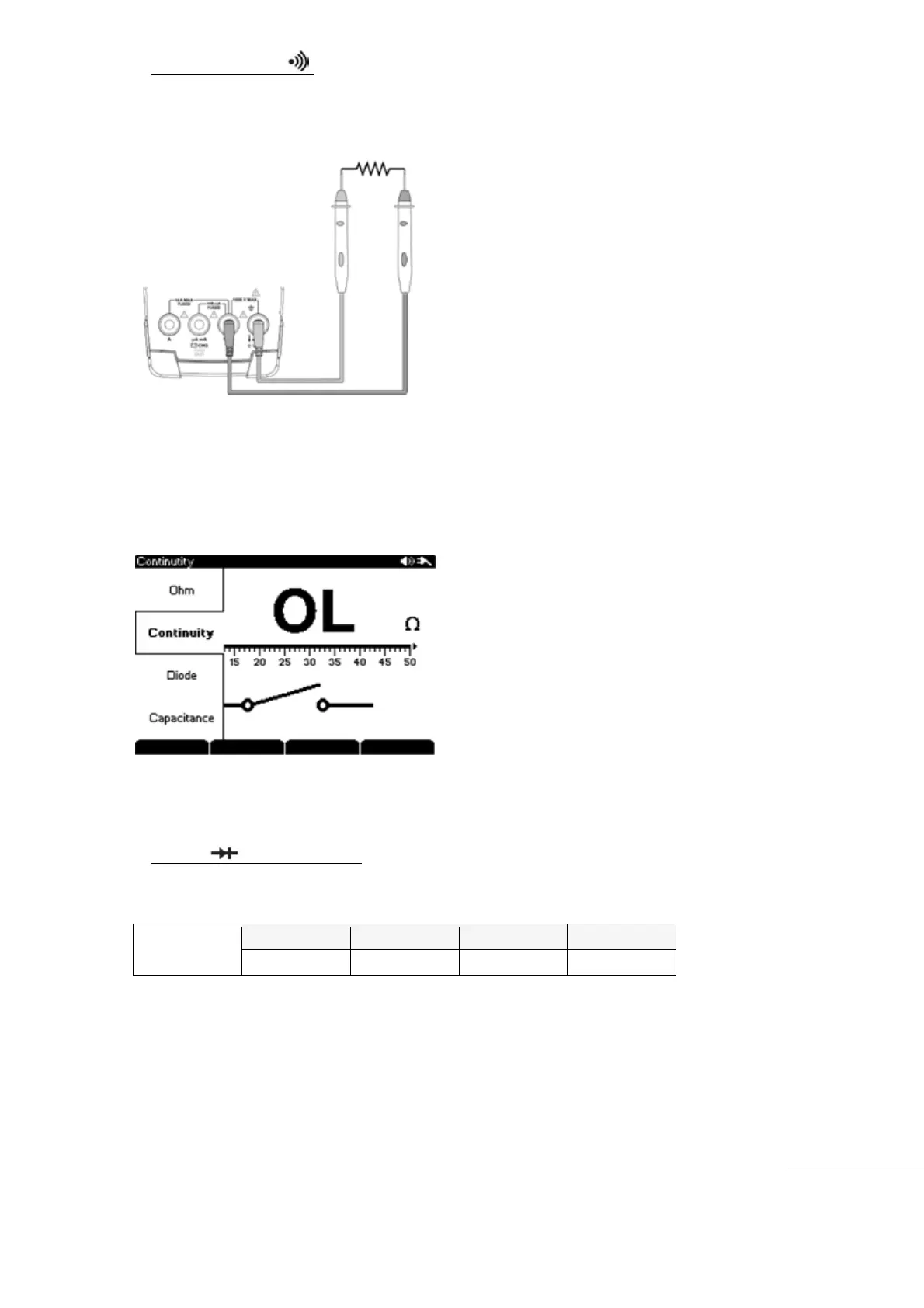

Continuity Test ( )
Continuity check for open/short circuits. The meter will display the Resistance value and an
Open / Short picture on the display. An audible Buzzer will sound for values less than 50Ω.
[Continuity Test]
Measurement range set automatically
Range: 500Ω (1 range)
Buzzer: sounds less than 50Ω
Measured value is displayed in main display and on the Bar-Graph display.
Diode ( ) measurement
Checks Diodes, Transistors, Silicon Control Rectifier (SCR) and Semiconductor devices.
Generally, the negative (-) terminal of the Diode is marked..
Can display a Maximum 3.0V forward bias voltage.
General Forward Bias Voltage is 0.3V~0.8V
If "OL" is displayed in reverse bias mode, diode is good.
If both Forward and Reverse bias are 0V, diode is SHORT
If both Forward and Reverse bias are "OL ", diode is OPEN
