SBS-6500 User Manual
Storage Battery Systems, LLC.

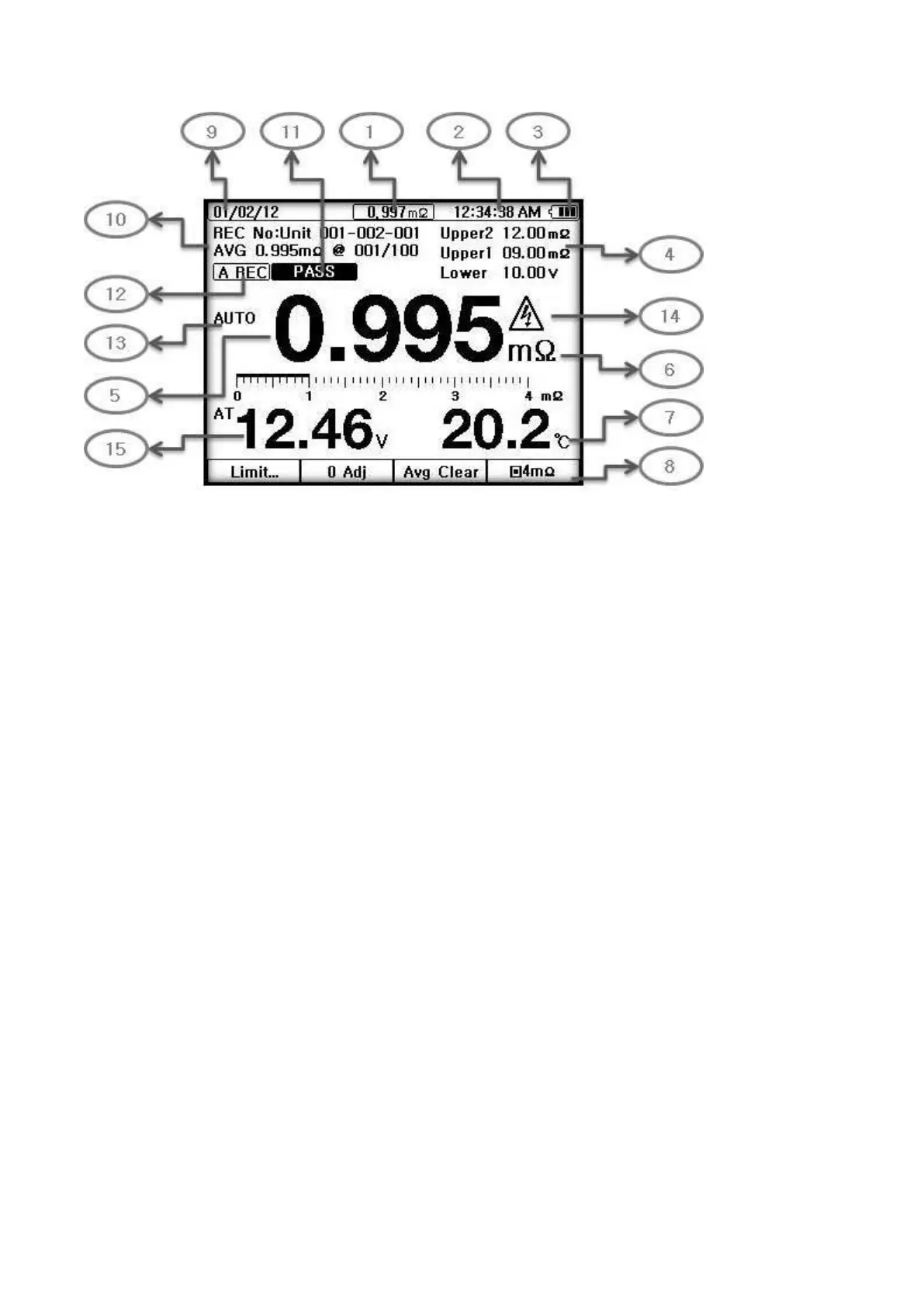

[Display]
① Present measurement value in auto record mode
(When measurement in auto hold mode, auto hold data “0.995” is holding at center of display
and present measurement data shows “0.997”. This data box does not appear if auto hold mode
is inactive.)
② Measurement date and time
③ Battery state of charge/AC adapter indication
④ Limit: upper2, upper1, and low voltage warning reference points.
⑤ Impedance value display
⑥ Unit of measurement
⑦ Temperature value display
⑧ 4m Ω range key
⑨ String-Cell-Test display (REC No: )
⑩ Measurement average and number of averaged data
(Displayed in conjunction with auto hold)
⑪ Comparator (pass –warning-fail) indication.
