Assembly
14.00 | GSM-P | Assembly and Operating Manual | en | 389104 35
Assembly of GSM with
inductive monitoring
with INW 40

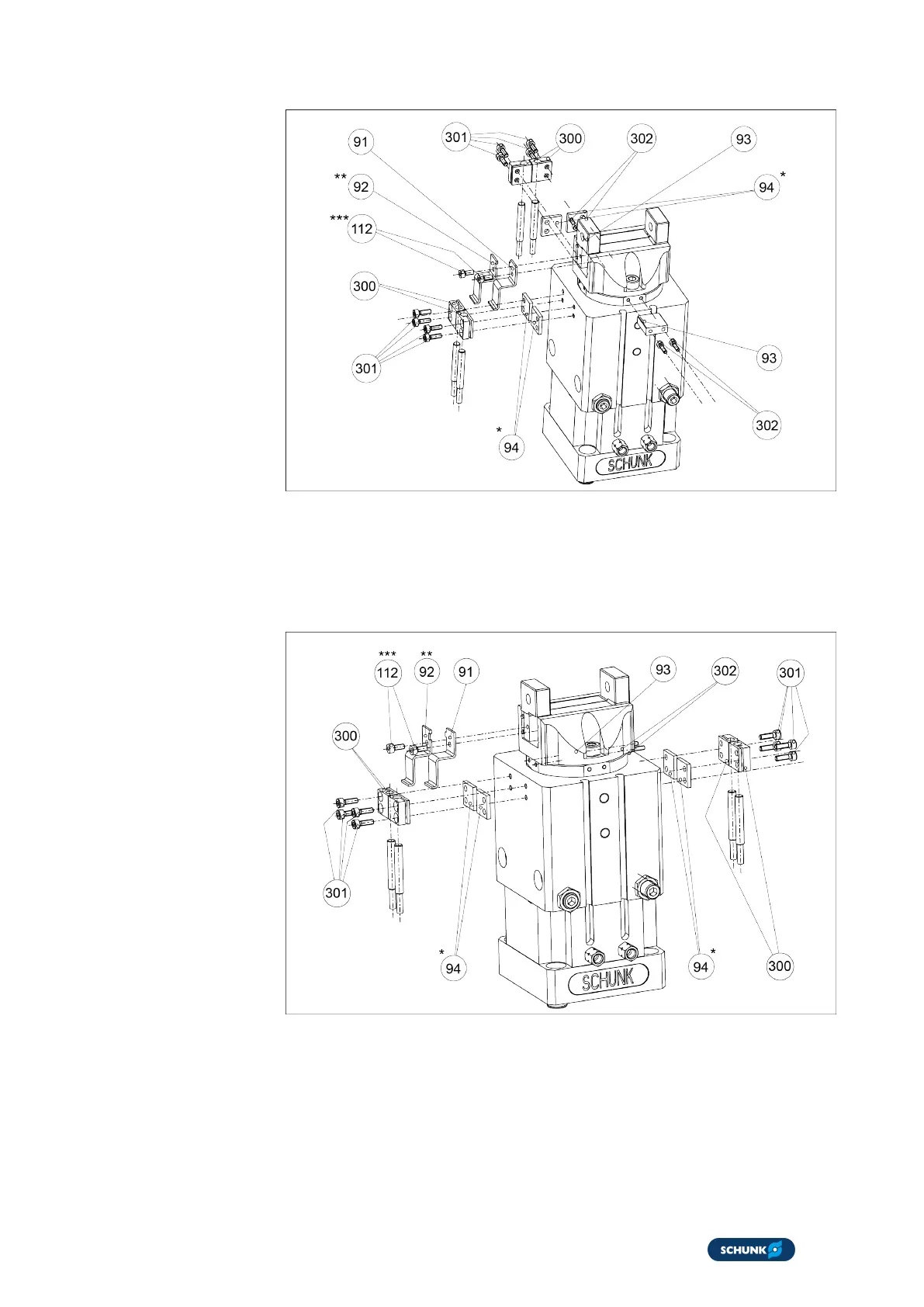

Assembly of GSM 090 variants with inductive monitoring
* Only included in the mounting kit for P-50
** In P-32, item 92 is identical to item 91
*** Item 112 is not a component of the mounting kit, it is
part of the gripping module
Assembly of GSM 180 variants with inductive monitoring
* Only included in the mounting kit for P-50
** In P-32, item 92 is identical to item 91
*** Item 112 is not a component of the mounting kit, it is
part of the gripping module
