Maintenance
42
11.00 | PGN | Assembly and Operating Manual | en | 389286

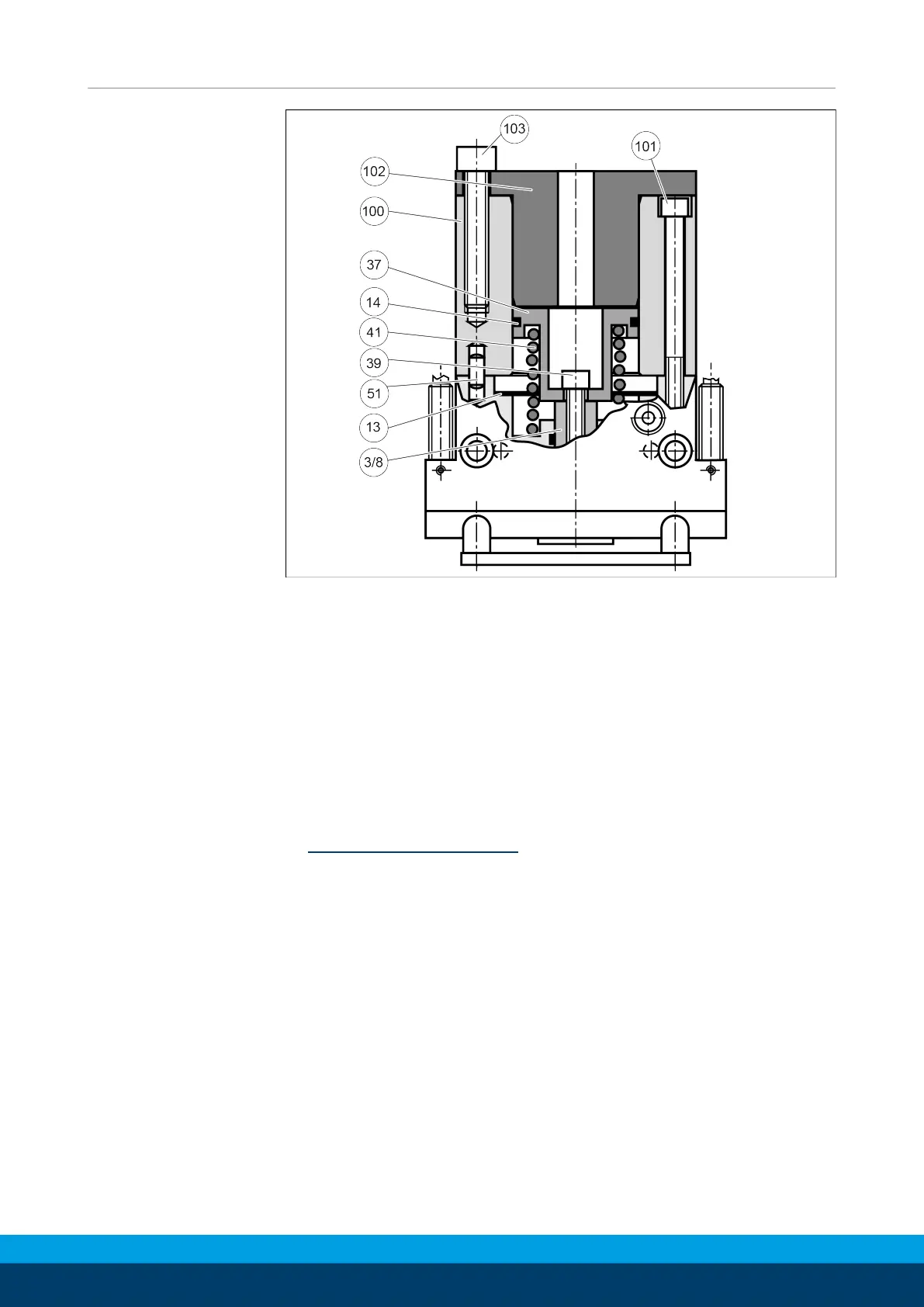

Assembly with device
for PGN 80, 100, 200
and 300
Assembly of the mounting device
Ø Assemble the base jaws and piston with sealing in the housing.
Ø Insert the pressure spring into the housing (41).
Ø Carefully slip device 1 (100) over the cylinder piston and as-
semble it with screws (101) on the housing.
Ø Carefully insert the cylinder piston (37) without seal into the
device bore and push it until it contacts the spring (41).
Ø Locate device 2 and screw it onto device 1 evenly until the cyl-
inder piston contacts the piston rod.
Ø Insert the screw (39) and thighten it with the required torque
Screw tightening torques [
}
43].
Ø Remove assembly device.
Ø Carefully place the seal (13) onto the housing.
Ø Locate the seal of the cylinder piston (14).
Ø Assemble the cover (36).

SCHUNK PGN Series Specifications

General

Actuation	Pneumatic
Number of Fingers	2
Material	Aluminum
Type	Parallel gripper
Holding force without pressure	0 N
Operating pressure	4 bar - 8 bar
