Maintenance
11.00 | PGN | Assembly and Operating Manual | en | 389286
41

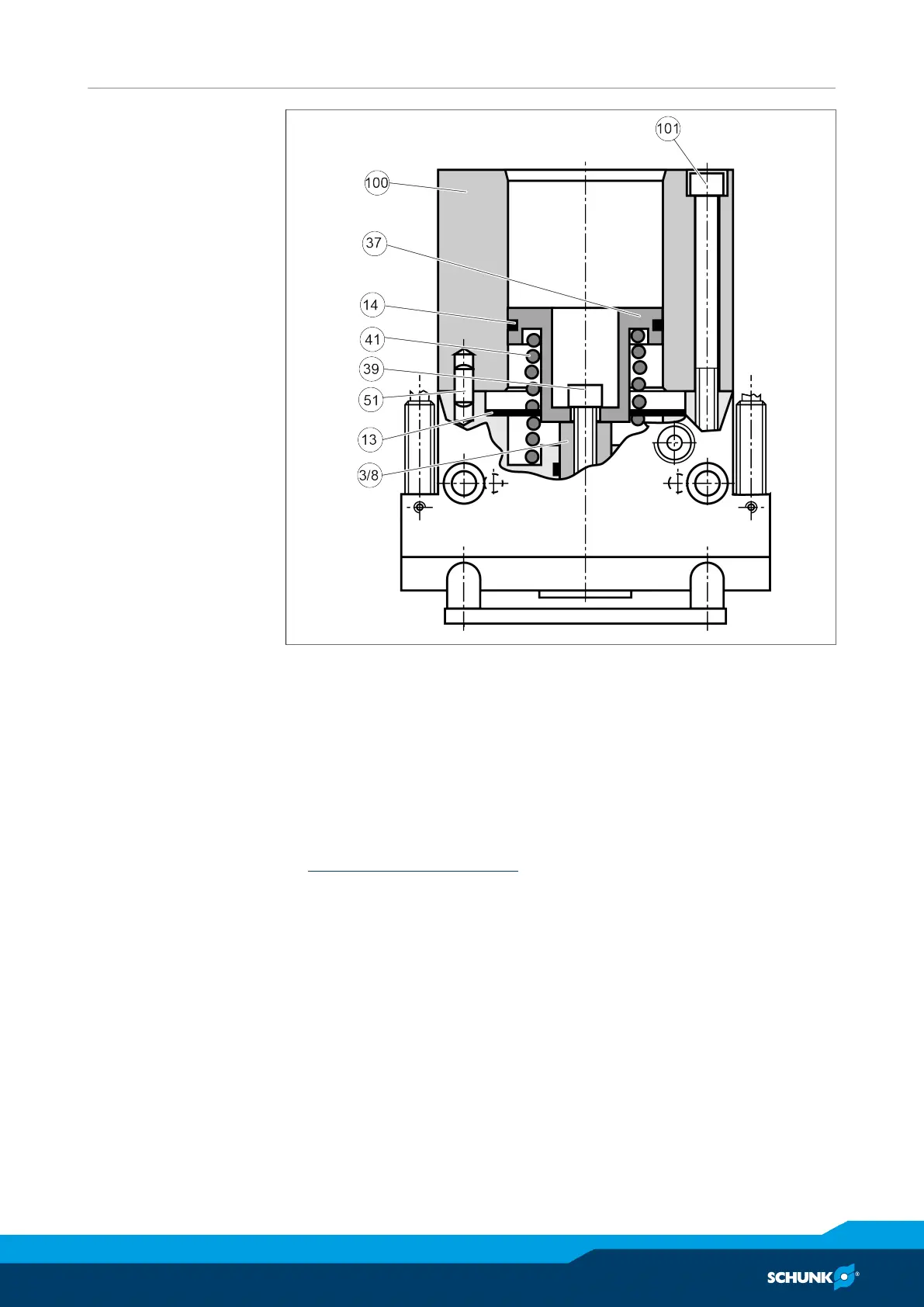

Assembly with device
for PGN 50, 64, 125
and 160
Assembly of the mounting device
Ø Assemble the base jaws and piston with sealing in the housing.
Ø Insert the pressure spring into the housing (41).
Ø Carefully slip device 1 (100) over the cylinder piston and as-
semble it with screws (101) on the housing.
Ø Carefully insert the cylinder piston (37) without seal into the
device bore and push it until it contacts the spring (41).
Ø Insert the screw (39) and thighten it with the required torque
Screw tightening torques [
}
43].
Ø Remove assembly device.
Ø Carefully place the seal (13) onto the housing.
Ø Locate the seal of the cylinder piston (14).
Ø Assemble the cover (36).
