Assembly
22 210.00 | PZN-plus | Assembly and Operating Manual | en | 389374
Size
①
Centering sleeve
②
Screws *
160 Ø14 M10 / 17
200 Ø16 M12 / 17
240 Ø16 M12 / 20
300 Ø22 M16 / 26
380 Ø28 M20 / 30
* Thread / max. depth of engagement from locating surface [mm]
Requirements for
customer adapter
plates

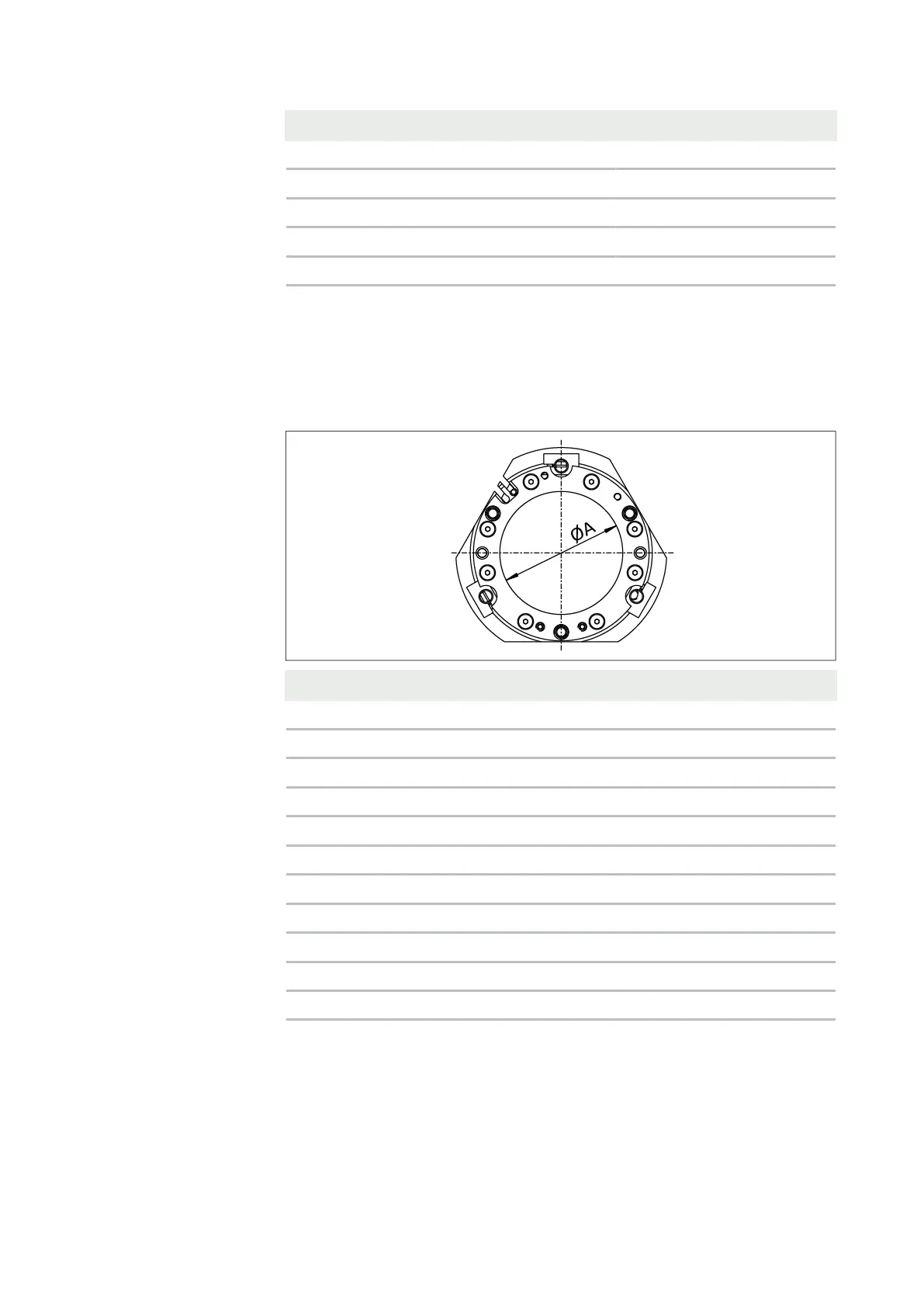

If the adapter plate has bores or recesses and therefore the
product is not fully flush, the minimum support surface must be
adhered to. The recess/bore in the adapter plate may not exceed
the dimension "A"; for dimensions, see the following table.
Size Max. recess "A" [mm]
40 Ø24
50 Ø32
64 Ø40
80 Ø55
100 Ø70
125 Ø85
160 Ø115
200 Ø150
240 Ø196
300 Ø236
380 Ø292
