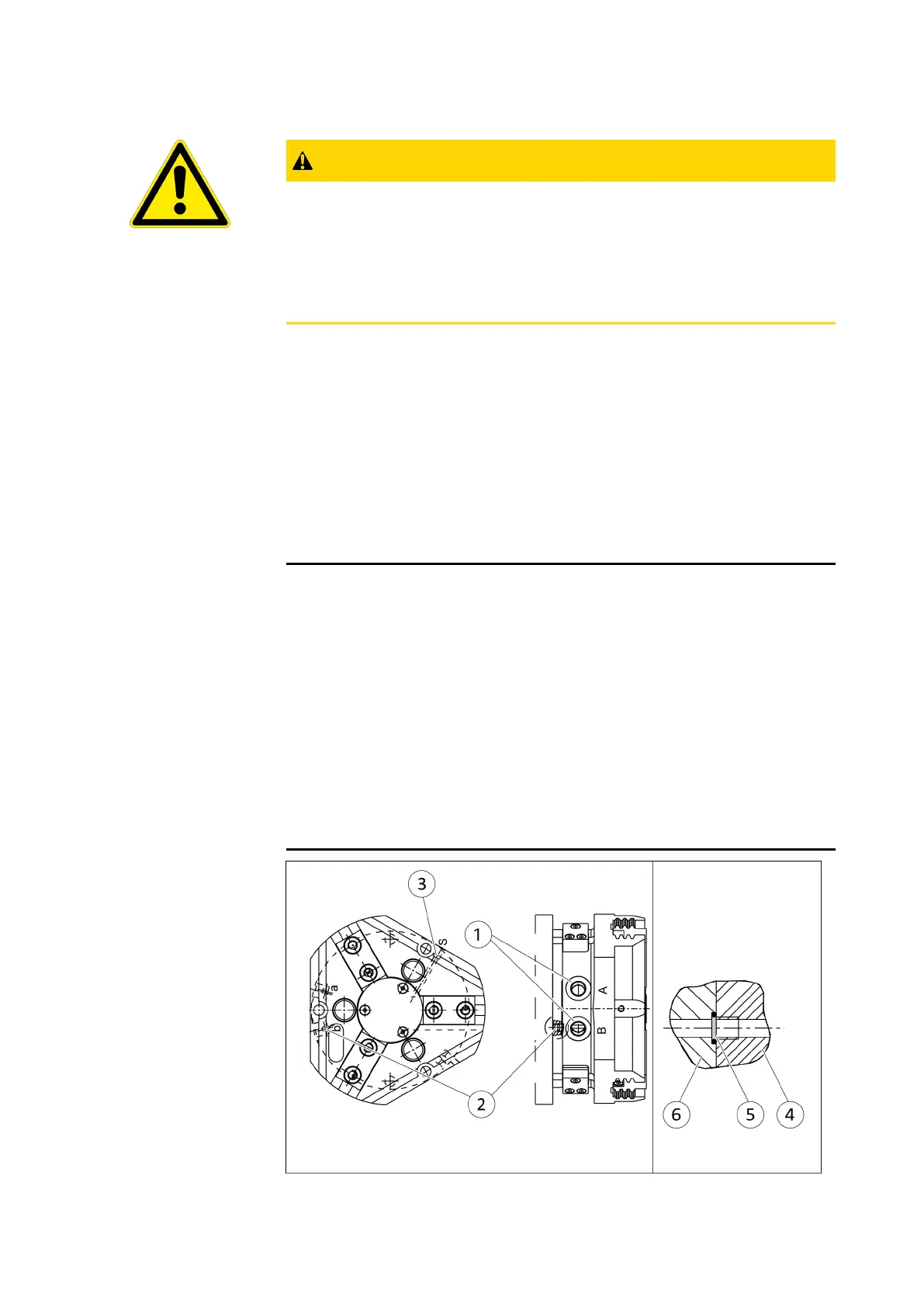

5.2.1.1 Mounting of the gripper by using a spring loaded pressure-piece
CAUTION
The spring-loaded pressure piece is under spring tension.
The pressure piece can fly out in an uncontrolled fashion and
cause contusions.
l
During assembly or disassembly, be especially careful with
the springs.
When mounting the gripper from the side of the gripper fingers,
the assembly of the pressure piece must be done after the
mounting of the gripper.
Mounting the pressure piece is described in the insert
"Installation instructions - pressure piece", which is included in
the pressure piece's scope of delivery.
5.2.2 Pneumatic connection
NOTE
l
Observe the requirements for the compressed air
supply, }3 [/18].
l
In case of compressed air loss (cutting off the energy line),
the components lose their dynamic effects and do not remain
in a secure position. However, the use of a SDV-P pressure
maintenance valve is recommended in this case in order to
maintain the dynamic effect for some time. Product variants
are also offered with mechanical gripping force via springs,
which also ensure a minimum clamping force in the event of
a pressure drop.
Air connections
