Assembly
210.00 | PZN-plus | Assembly and Operating Manual | en | 389374 45
5.3.14 Mounting flexible position sensor FPS
The flexible position sensor FPS consists of an evaluation unit and
the sensor FPS-S-M8.
CAUTION
Risk of damage to the sensor during assembly!
l
Observe the maximal tightening torque.
To be able to mount the sensor, the gripper has to be retrofitted
with a special mounting kit.
Variant Dust-tight:
Before attaching the sensor, remove the sealing bolts from the
bracket. Before adjusting the control cam, unscrew the set-screw
from the side cover.

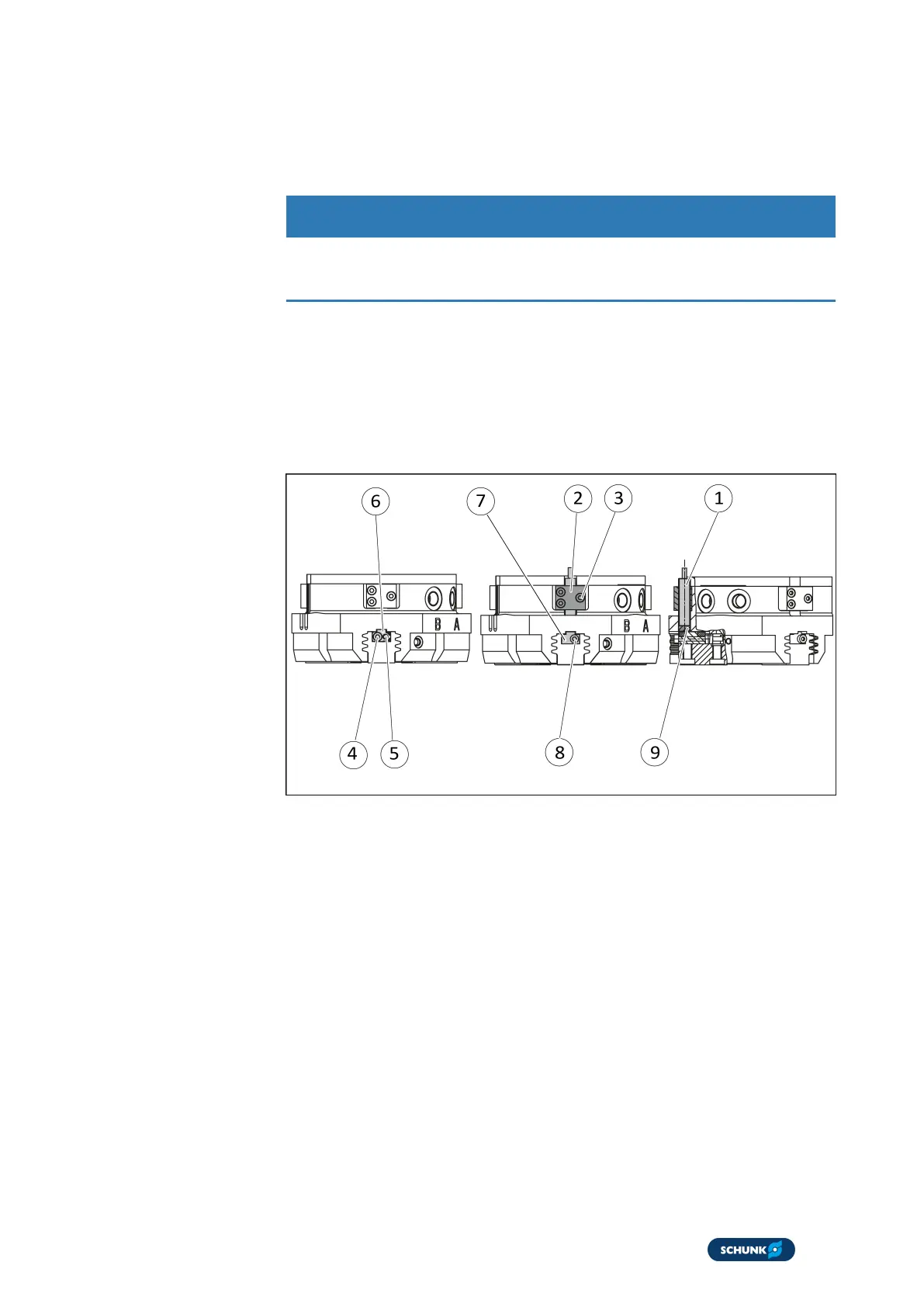

1. Move product to the "gripper open" position.
2. Loosen screw (4) and remove control cam (6) for the inductive
monitoring from the base jaw.
3. Remove screw (5) from the base jaw.
4. Slide control cam (7) from the mounting kit with the recess at
the front into the base jaw.
5. Screw the control cam (7) to the base jaw using the screw (8).
6. Slide spacer shim (9) into the bracket (2) to the stop.
7. Slide the sensor (1) to the stop into the bracket (2).
8. Tighten the screw (3) on the bracket (2).
Tightening torque: 0.2 Nm
9. Adjust sensor (1), see assembly and operating manual of the
sensor.
Variant Dust-tight:
Screw in set-screw into the side cover.
