Maintenance
60 210.00 | PZN-plus | Assembly and Operating Manual | en | 389374

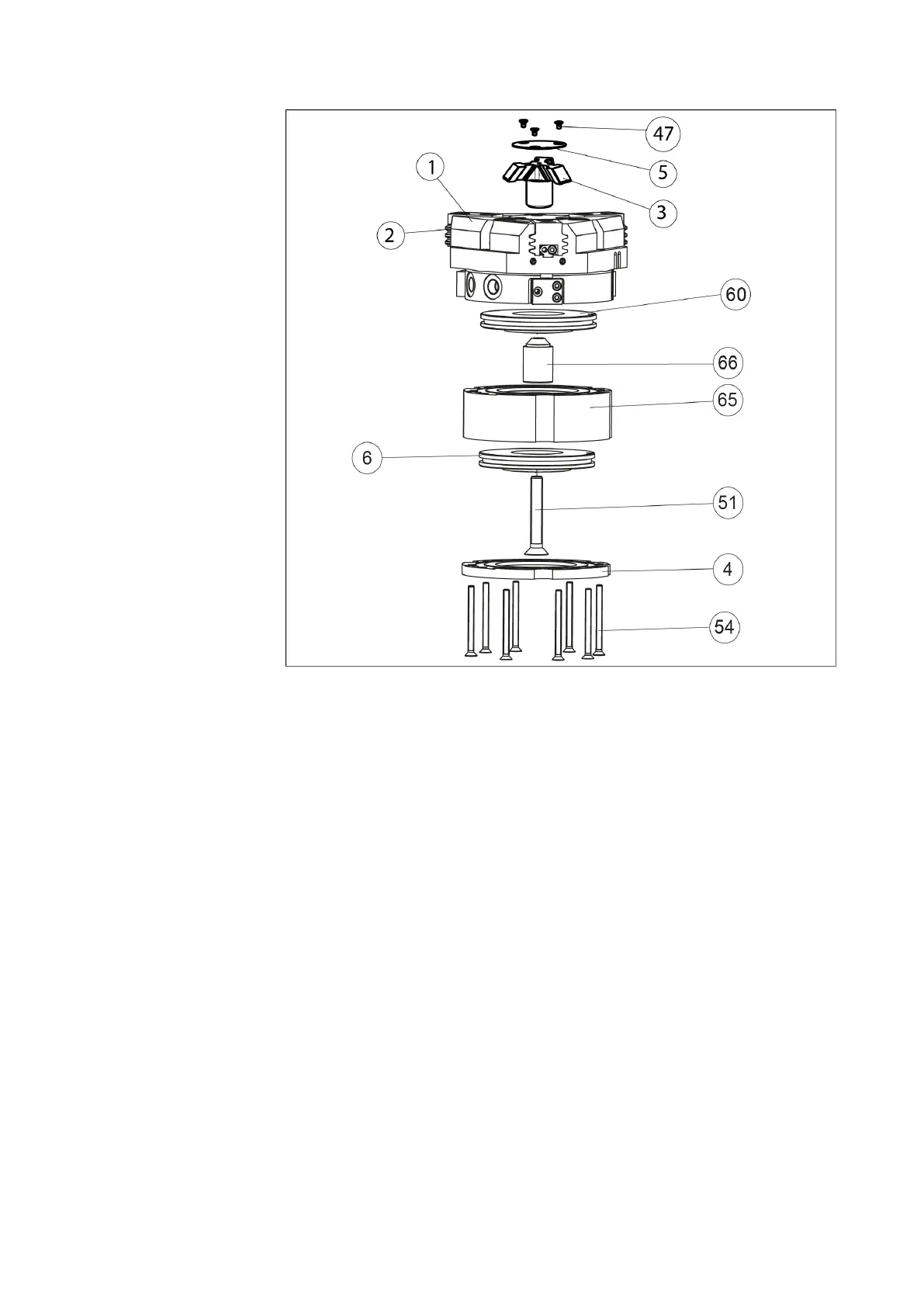

1. Remove all compressed air lines.
2. Unscrew the screws (47) and remove the cover plate (5).
3. Mark the installation position of the piston (3) and the base
jaws (2) in the housing (1).
4. Version with gripping force maintenance (AS) or (IS): As
described in the previous
chapters }7.4.3 [/54]/}7.4.4 [/57], clamp the gripper in a
press and unscrew the screws (54).
5. Version without gripping force maintenance: Unscrew
screws (54) and remove the cover (4).
6. Unscrew the screw (51) and remove the cylinder piston (6)
and the spacer piston (66) from the intermediate housing
(65).
7. Remove the intermediate housing (65).
8. Mark the installation position between the second cylinder
piston (60) and the housing (1). Remove the cylinder piston
(60) from the housing (1).
9. Push the piston (3) upwards out of the housing (1).
10. Pull the base jaws (2) out of the housing (1).
