Assembly
24
10.00 | SRU | Assembly and Operating Manual | en | 389439
5.2
Connections
5.2.1
Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length
Permissible unevenness
< 100
< 0.02
> 100
< 0.05
Mounting
The module can be mounted from the top, from the bottom or
from the side.

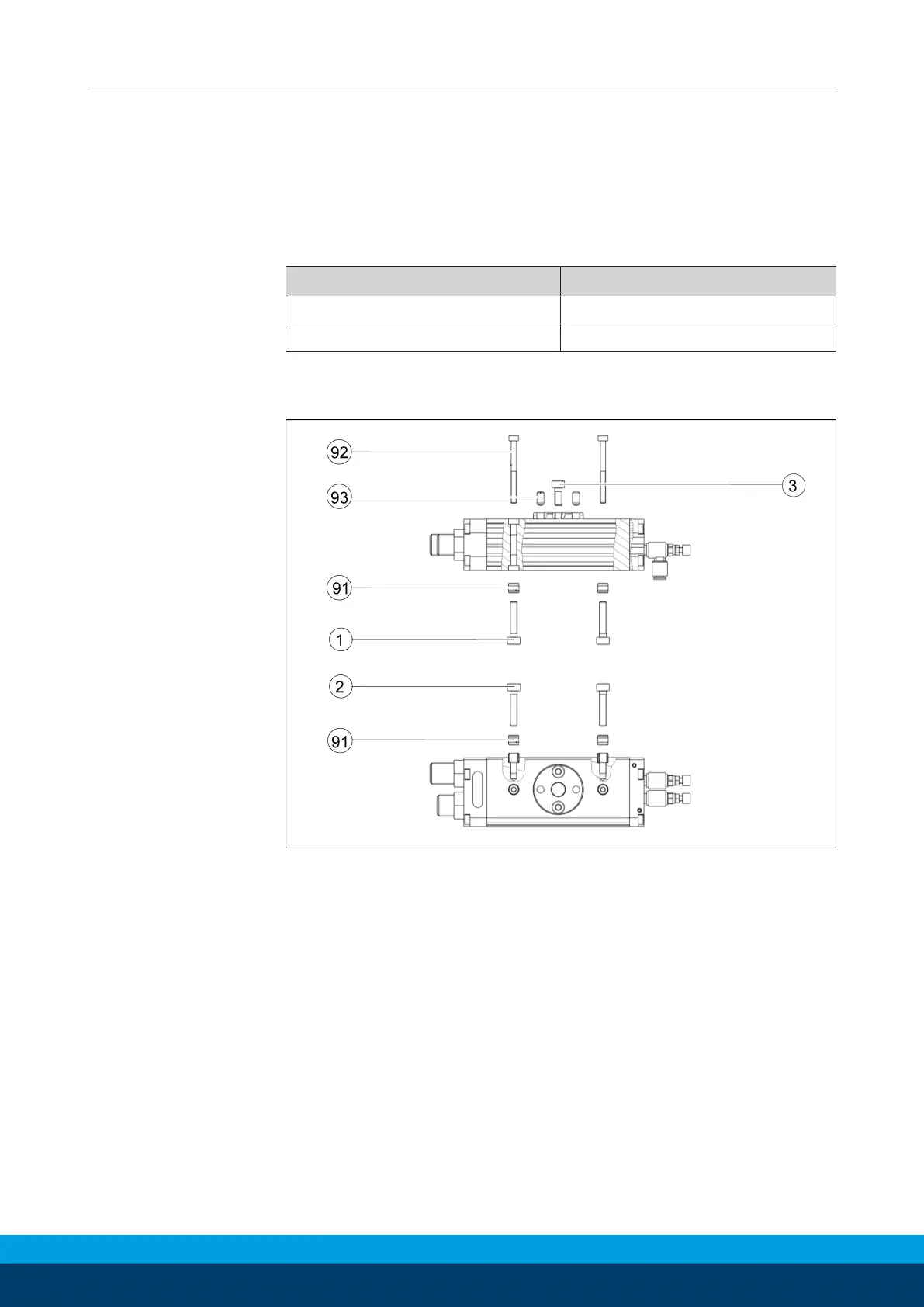

Assembly options
23
25
