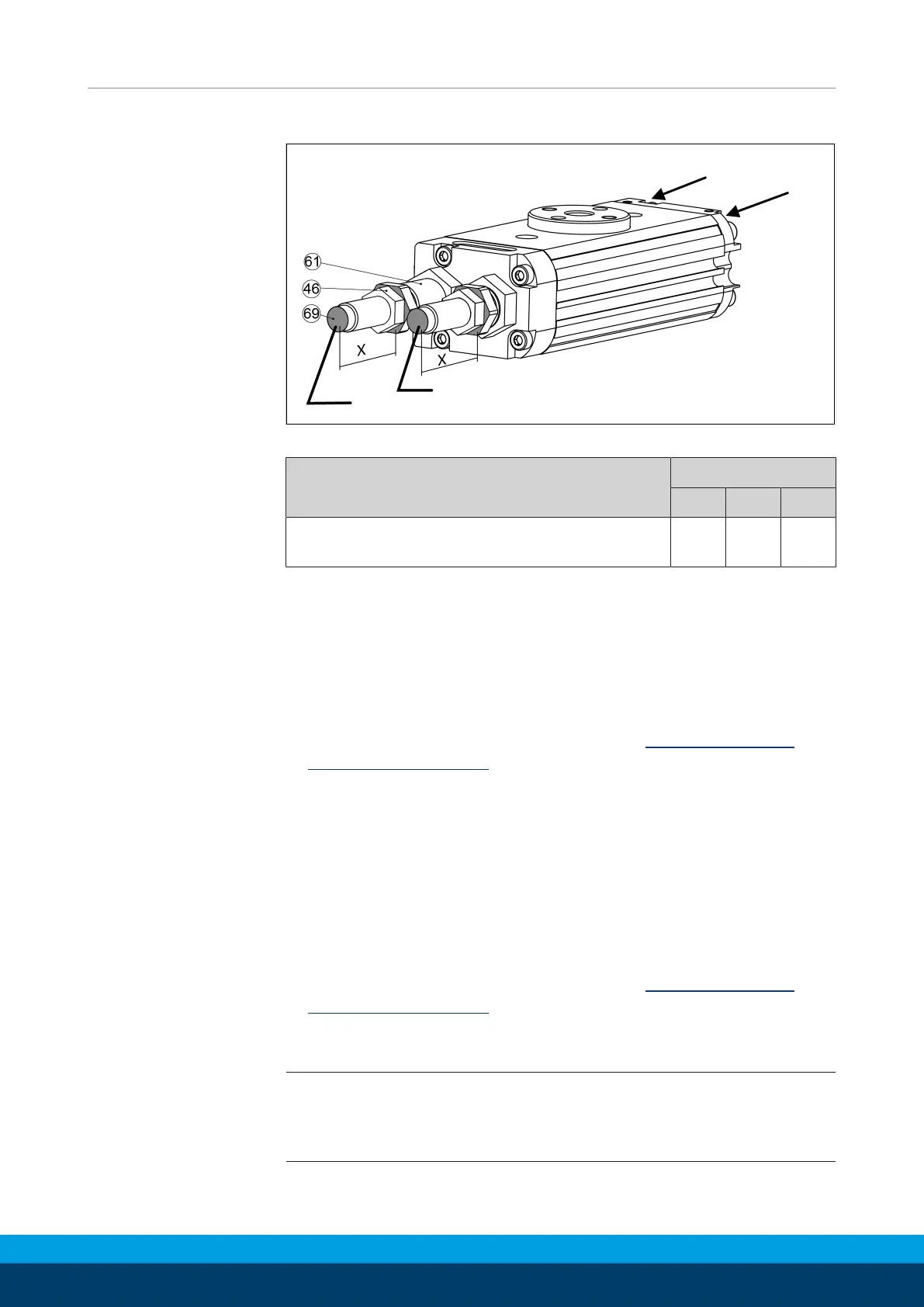

6.2.2 Shock absorber stroke (variant S)
Stop A
Connection B
Connection
A
Stop B
Adjustment of the shock absorber
Pos. X SRU
10 12 14
Maximum screw-in depth of the shock
absorber [mm]
20.5 24 34
Setting the shock
absorption for
end position 0°
Ø Apply air pressure to connection A.
Ø Loosen lock nut (46) on stop B, providing counter support for
the sleeve (61).
Ø Unscrew the shock absorber (69) to decrease shock absorption
and rotation time.
Ø Load and swivel module to check damping effect. NOTICE!The
end position must be approached softly,Adjustment of the
shock absorber stroke [
}
34]
Ø Hold sleeve (61) and shock absorber (69) tight and retighten the
lock nut (46).
Setting the shock
absorption for
end position 180°
Ø Apply air pressure to connection B.
Ø Loosen lock nut (46) on stop A, providing counter support for
the sleeve (61).
Ø Unscrew the shock absorber (69) to decrease shock absorption
and rotation time.
Ø Load and swivel module to check damping effect. NOTICE!The
end position must be approached softly,Adjustment of the
shock absorber stroke [
}
34]
Ø Hold sleeve (61) and shock absorber (69) tight and retighten the
lock nut (46) firmly.
NOTE
When the lock nut (40) is loosened, air can escape at the shock
absorber (49). This is due to the design and is normal.
