Commissioning
34
10.00 | SRU | Assembly and Operating Manual | en | 389439
6.2 Adjustment of the shock absorber stroke
NOTE
When received from the factory, the unit is set to utilize the
maximum shock absorber stroke.
Movement
Target position
End position
Target time
Time T
Damping

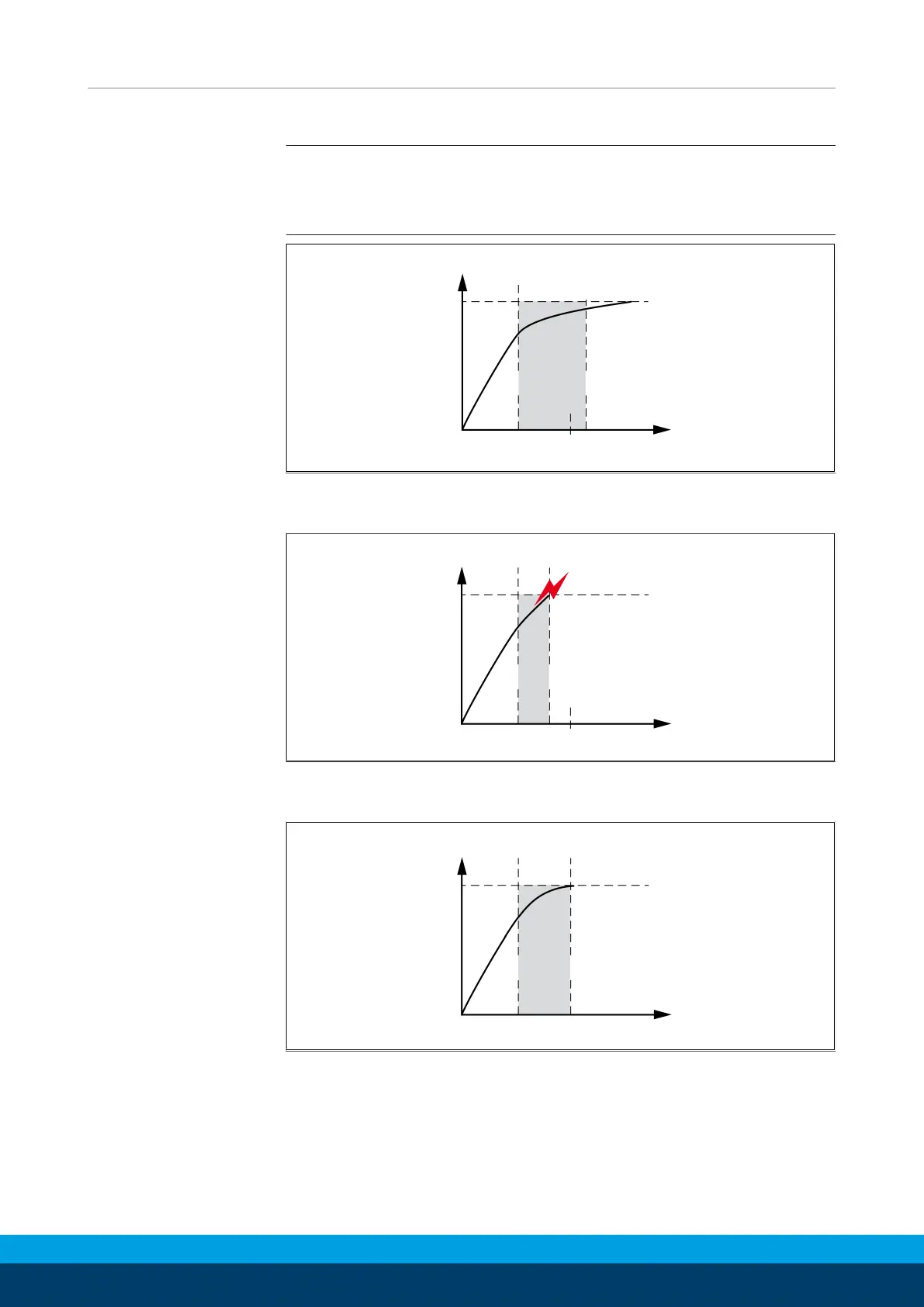

The shock absorber stroke is too long and the end position is
reached too slowly.
Movement
Target position
End position
Target time
Time T
Damping
The shock absorber stroke is too short and the unit arrives in the
end position too abruptly.
Movement
Target position
End position
Target time
Time T
Damping
Optimal shock absorber stroke.
