Assembly
10.00 | SRU | Assembly and Operating Manual | en | 389439
27
5.3 Settings

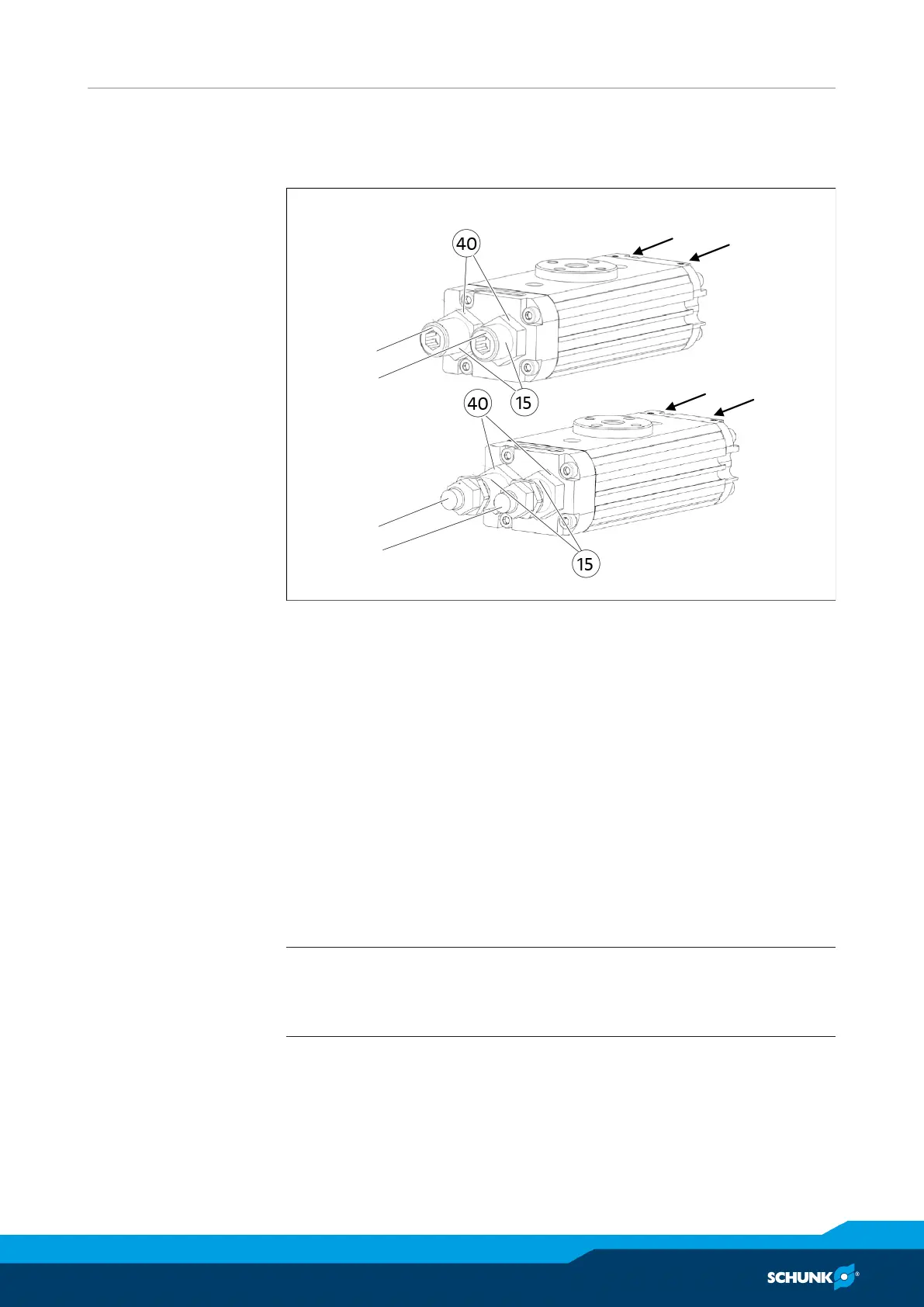

5.3.1 Adjustment of the end positions
Stop A
Stop B
Connection B
Connection A
Connection A
Connection B
Stop A
Stop B
Variant W
Variant H or
variant S
Adjustment of the end positions
Ø Apply pressure to connection A until the rotary unit has reached
its end position.
Ø Loosen the lock nut (40) at stop B.
Ø Set the end position with sleeve B (5) and stop B (15).
Ø Hold sleeve B (5) and stop B (15) tight and tighten the lock nut (40).
Ø Check the end positions.
Ø Apply pressure to connection B until the rotary unit has reached
its end position.
Ø Loosen the lock nut (40) at stop A.
Ø Set the end position with sleeve A (5) and stop A (15).
Ø Hold sleeve A (5) and stop A (15) tight and tighten the lock nut (40).
Ø Check the end positions.
NOTE
When the lock nut (40) is loosened, air can escape at the sleeve
(5) and at the stop (15). This is due to the design and is normal.
