5.2.2 Pneumatic connection
NOTICE
Avoid causing damage by approaching the end positions softly.
• Attach the one-way control valve to the product when
connecting to the center position.

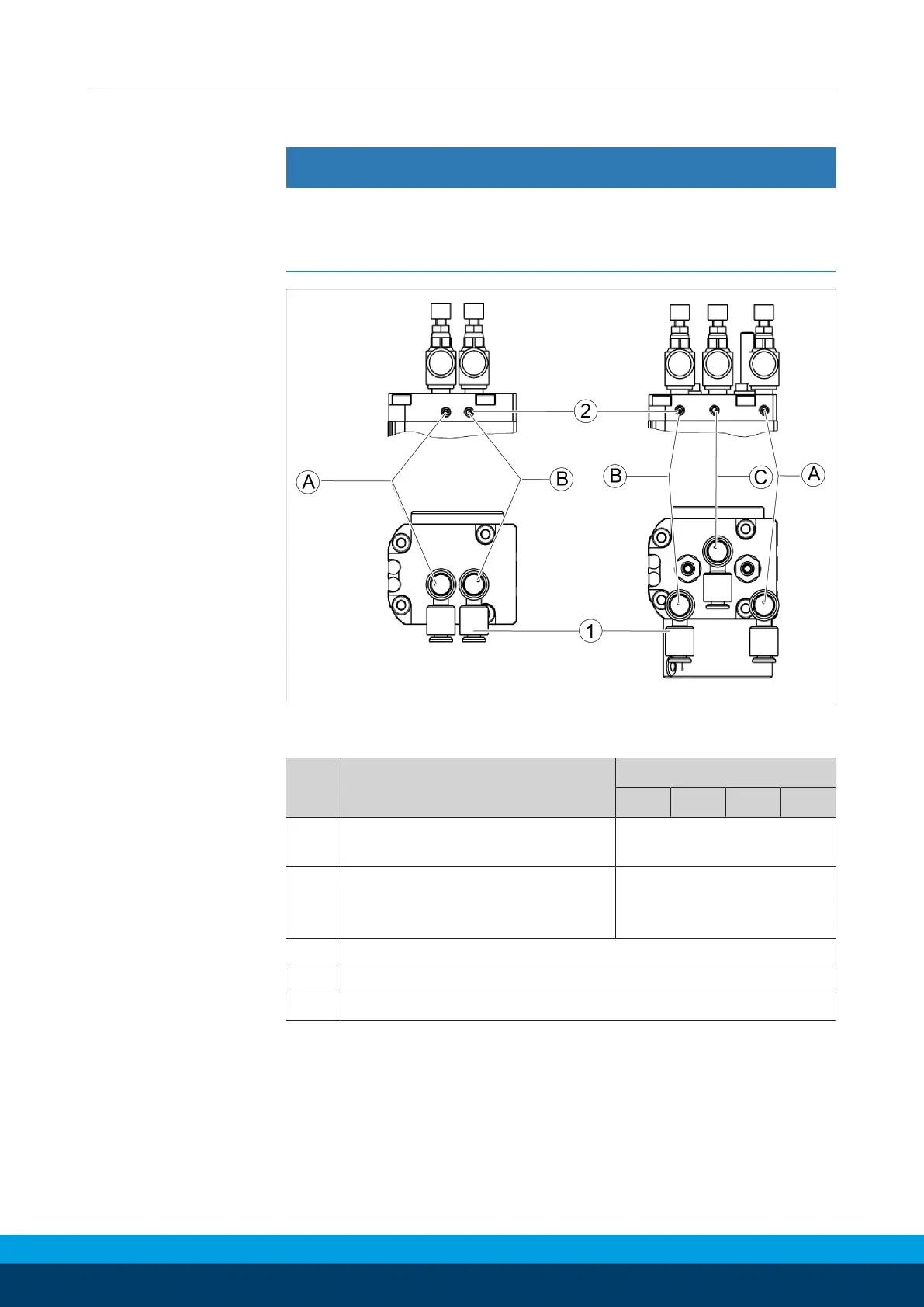

Air connections
Thread diameter of the air connections
Item Designation
SRU
8 10 12 14
1 Thread diameter hose
connection (A ; B ; C)
M3
2 Thread diameter hose-free
direct connection on base side
(a ; b ; c)
M3
A Hose connection für swiveling clockwise
B Hose connection für swiveling counter-clockwise
C Hose connection for swiveling in center position
Further information on the hose-free direct connection contains
the catalog data sheet.
