SCHUNK SRU Series User Manual

Commissioning
10.00 | SRU | Assembly and Operating Manual | en | 389439
35

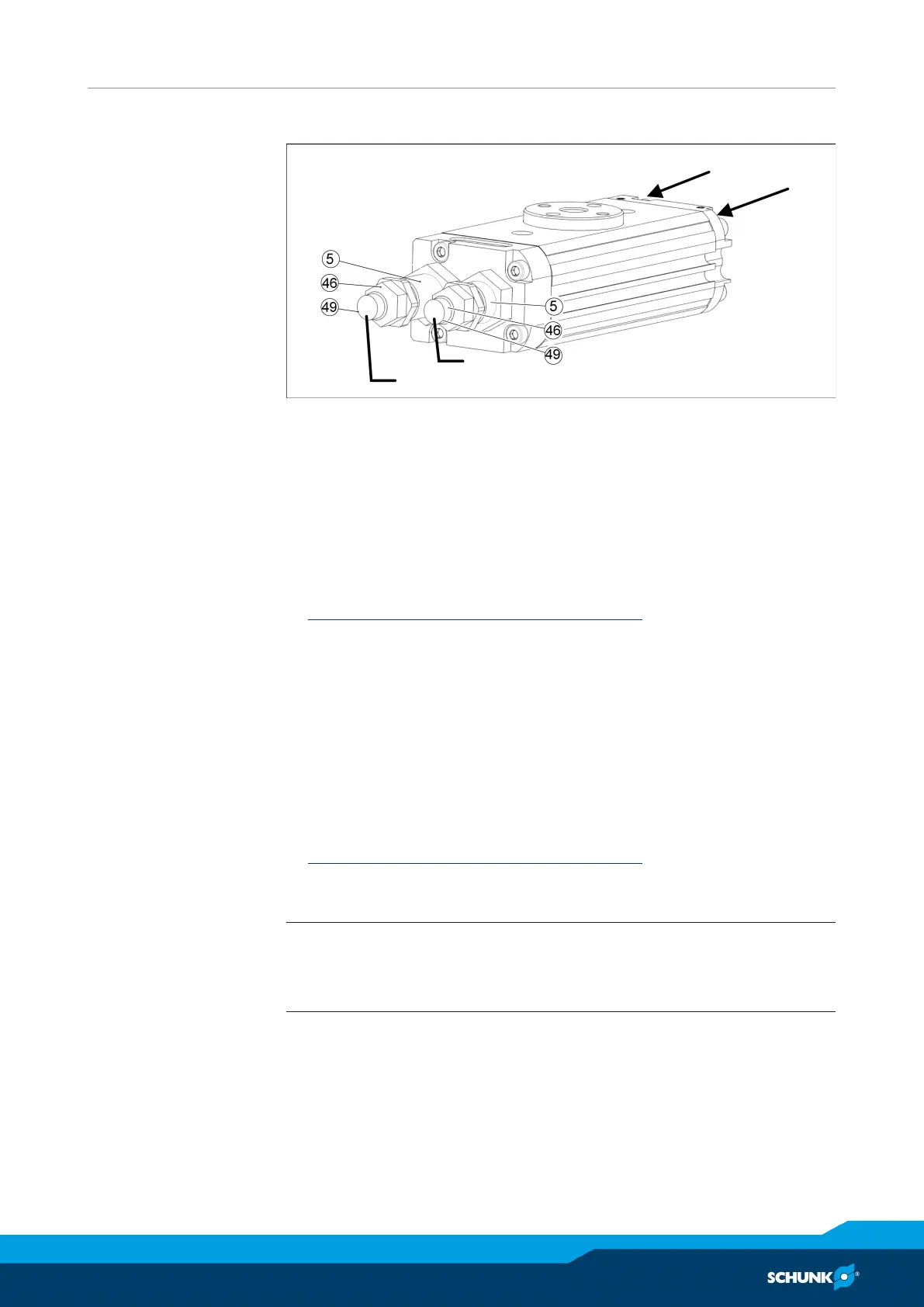

6.2.1 Shock absorber stroke (variant H)
Stop A
Stop B
B
A
Connection
Connection
Adjusting the shock absorber
Adjusting the
dampening for
end position 0°
Ø Apply air pressure to connection A.
Ø Loosen the counter nut (46) from the stop B, by holding the
sleeve (5).
Ø Unscrew the shock absorber (49) to decrease dampening and
swiveling time.
Ø Load and rotate the product to check the shock absorption
effect.NOTICE!The end position must be reached gently,
Adjustment of the shock absorber stroke [
}
34].
Ø Hold on to the sleeve (5) and shock absorber (49) and tighten
the counter nut (46).
Adjusting the
dampening for
end position 180°
Ø Apply air pressure to connection B.
Ø Loosen the counter nut (46) from the stop A, by holding the
sleeve (5).
Ø Unscrew the shock absorber (49) to decrease dampening and
swiveling time.
Ø Load and rotate the product to check the shock absorption
effect. NOTICE!The end position must be reached gently,
Adjustment of the shock absorber stroke [
}
34].
Ø Hold on to the sleeve (5) and shock absorber (49) and tighten
the counter nut (46).
NOTE
Air can escape from the shock absorber (49) if the counter nut
(40) is loosened. This is normal and part of the design.
