Technical Data
05/STM-48V/en/2011-04-01/CW 25
6.3 Brake
NOTICE
This is not a service brake. Its use as a safety component is not
permitted. The brake merely serves to support the standstill
torque.

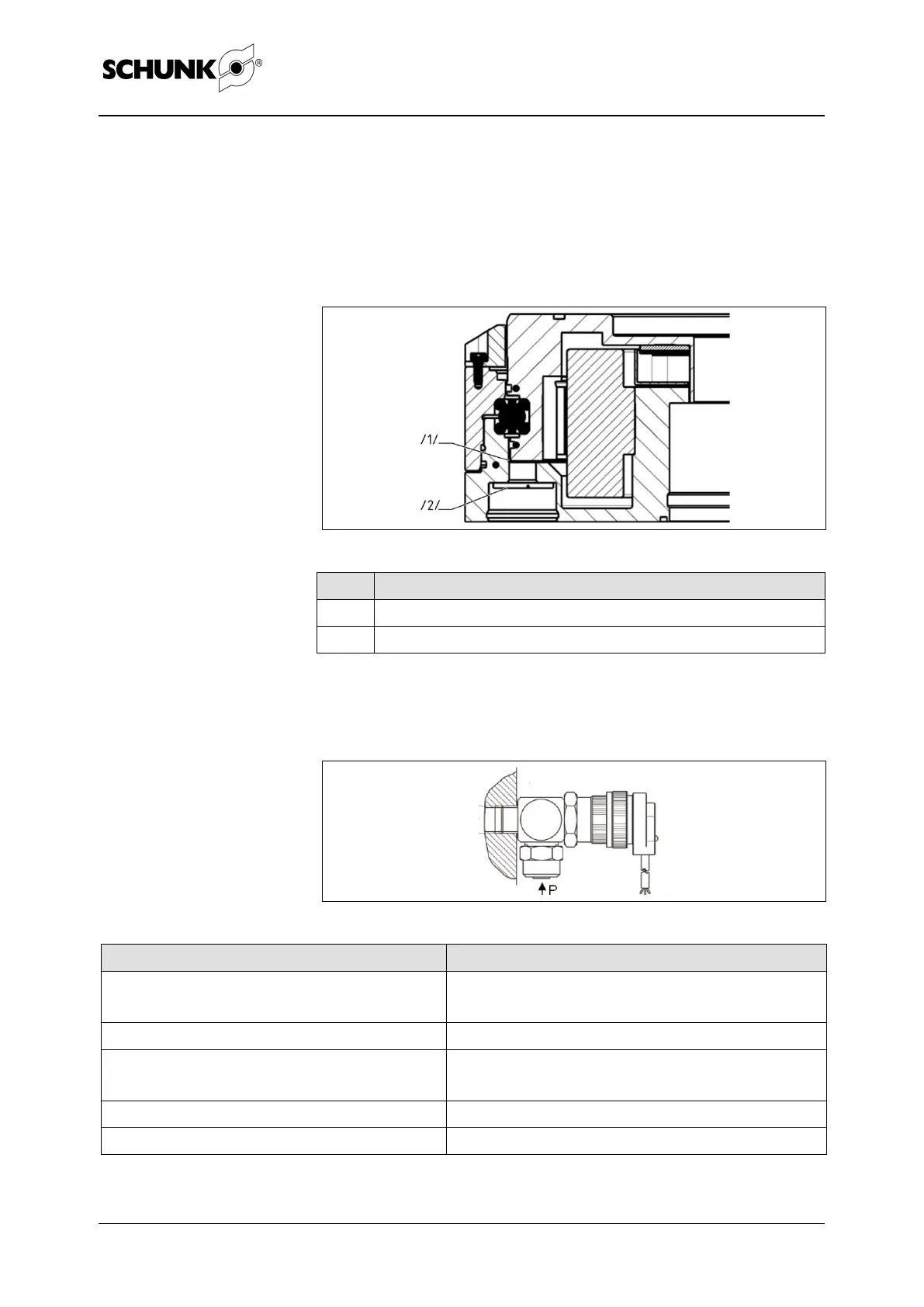

Figure 3 Brake design
Item
/1/
Contact surface between brake pad and rotor
/2/
Pre-loaded brake piston with brake pad
Table 10 Legend of Figure 3
6.3.1 Technical data for brake valve MV15
Figure 4 Valve assembly
Reference value
Values
Permissible medium
Filtered compressed air, oiled or dry
Compressed air purity classes ISO 8573 - 1 7 4 4
Nominal flow rate at 6 bar
45 Nl/min
Operating pressure range [bar]
P
-1…1
Power consumption
2.8W
Voltage
24V (+10% / -5%)
Table 11 Technical data for brake valve MV15
