SCHUNK STM 48V - Commissioning of the Digital Inputs; Commissioning of the Digital Outputs

Start up with PC
48 05/STM-48V/en/2011-04-01/CW
8. Select movement modes:

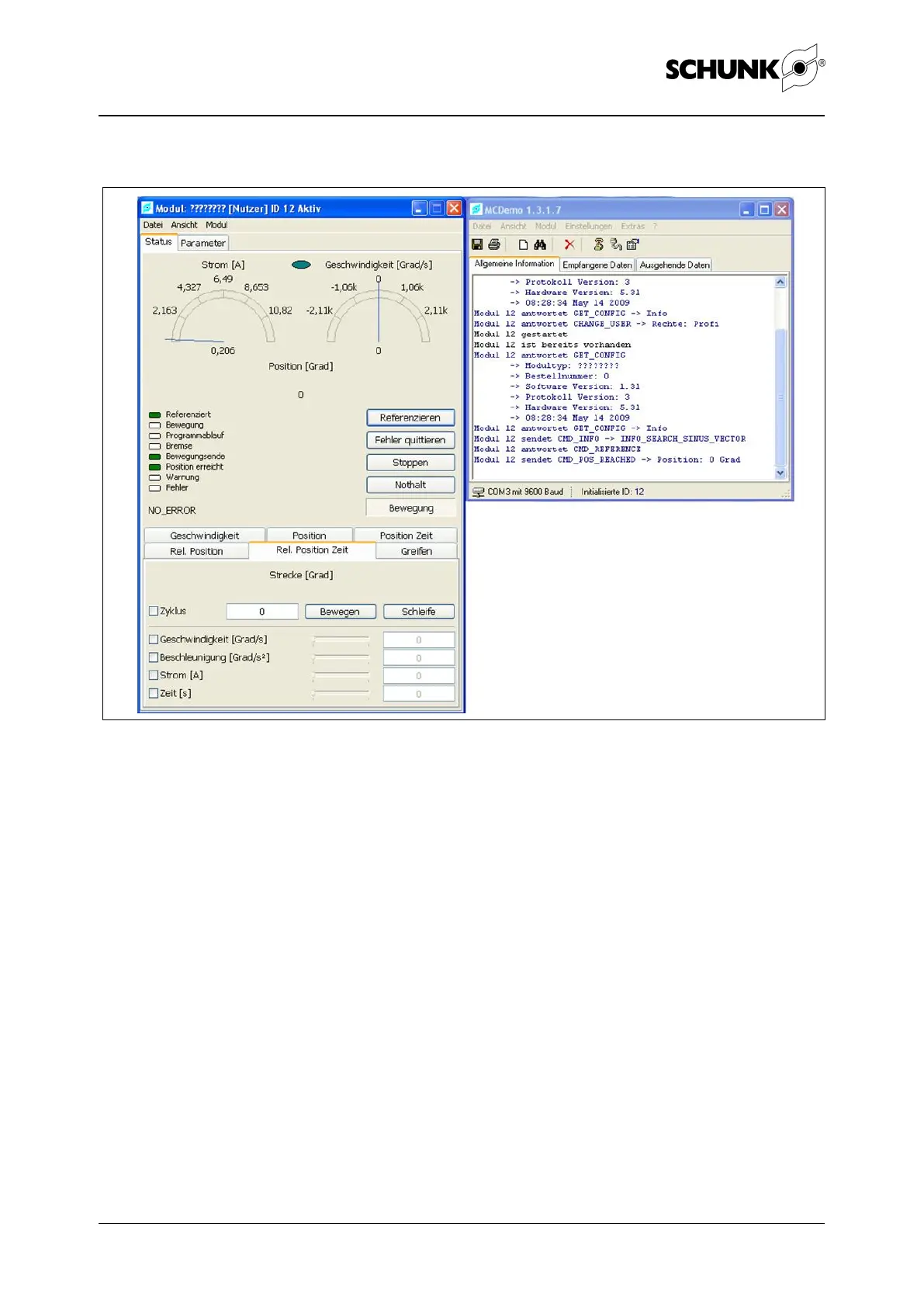

Figure 24
 Click on the desired tab (Relative position, Position, Speed
etc.) and enter the desired target values in the input window.
Note
A password is required to change the control, referencing and
device parameters. It is “Schunk“.
 See Motion Control documentation.
10.2.3 Commissioning of the digital inputs
 Refer to the chapter entitled "Digital Inputs" in the Motion
Control documentation (3.2.5.9).
10.2.4 Commissioning of the digital outputs
 Refer to the chapter entitled "Digital Outputs" in the Motion
Control documentation (3.2.5.10).
