Page 35
When using the tool station, crank the bar shear hold-down device completely down and remove the
punch and die. As with all functions on this machine, SAFETY GLASSES ARE REQUIRED when using
optional tools of any type. Each self contained tool has its own stroke and tonnage requirements. This
section will cover the operation and location of each tool. There is a graphical illustration of the available

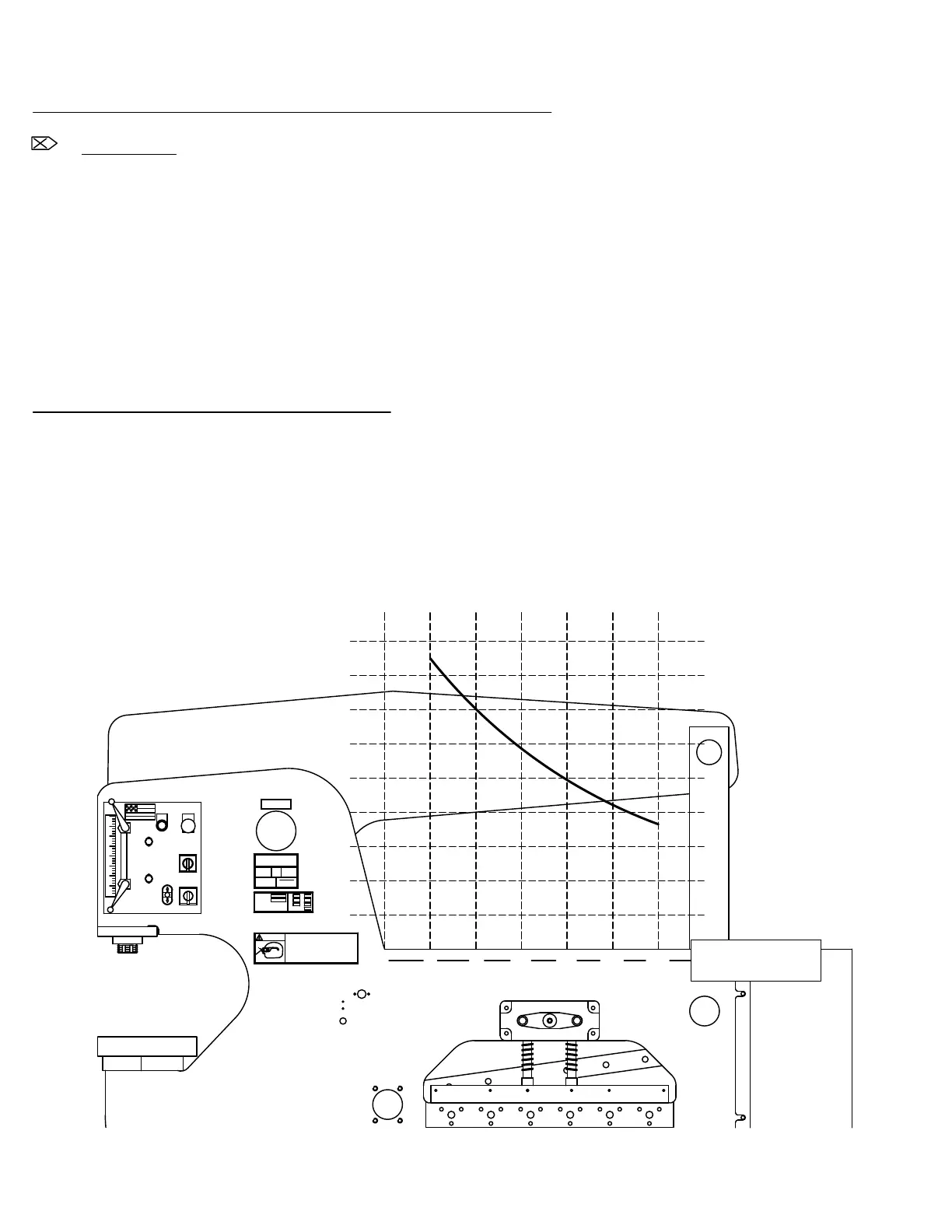

tonnage at locations along the Upper Arm. SEE FIGURE 13 BELOW. This graph will be helpful in
setting up various Scotchman or custom tooling.
7.0 OPTIONAL TOOL OPERATION
The 6 x 6 angle shear is a component tool designed to shear angle iron. It installs in the tool station on
this machine and has a maximum capacity of 6 x 6 x 1/2 inch (152 x 152 x 12mm) mild steel angle iron.
The selector switch must be in the SHEAR position to operate this tool.
7.1 6 X 6 ANGLE SHEAR
CAUTION: MOVE ALL TOOLS OUT FROM UNDER THE UPPER ARM WHEN THEY ARE
NOT IN USE.
FIGURE 13
WARNING
SAFETY GLASSES REQUIRED WHEN
OPERATING OR OBSERVING THIS MACHINE
NEVER-
NEVER-
NEVER-
NEVER-
NEVER-
NEVER-
NEVER-
TO PREVENT SERIOUS BODILY INJURY
Operate, install tooling, service or adjust machine without
operator's manual and safety film.
Service machine with electrical power connected.
Operate any station without the respective strippers or
Operate machine with protective guards removed.
Place any part of your body under blade, punch or moving
Operate punch station without checking the punch to die
alignment and tightness.
Punch half holes, punch or shear unknown materials, side load
