9.8 CYLINDER
ITEM PART # DESCRIPTION
A 006190 Clevis Pin
B 030580 Cylinder Clevis
C 030605 Cylinder (Includes B)
D 030595 Cylinder Anchor Pin
E 016620 2" Snap Ring
F 030233 Cylinder Shroud
G 224205 M-10 WLCS
H 030631 Rear Shroud - Ser. # 20600M & Prior
H1 080423 Rear Shroud - Ser. # 20601M & Up
I 030637 Front Shroud - Ser. # 20600M & Prior
I1 080422 Front Shroud - Ser. # 20601M & Up
J 030610 Cylinder Seal Kit (Not Pictured)

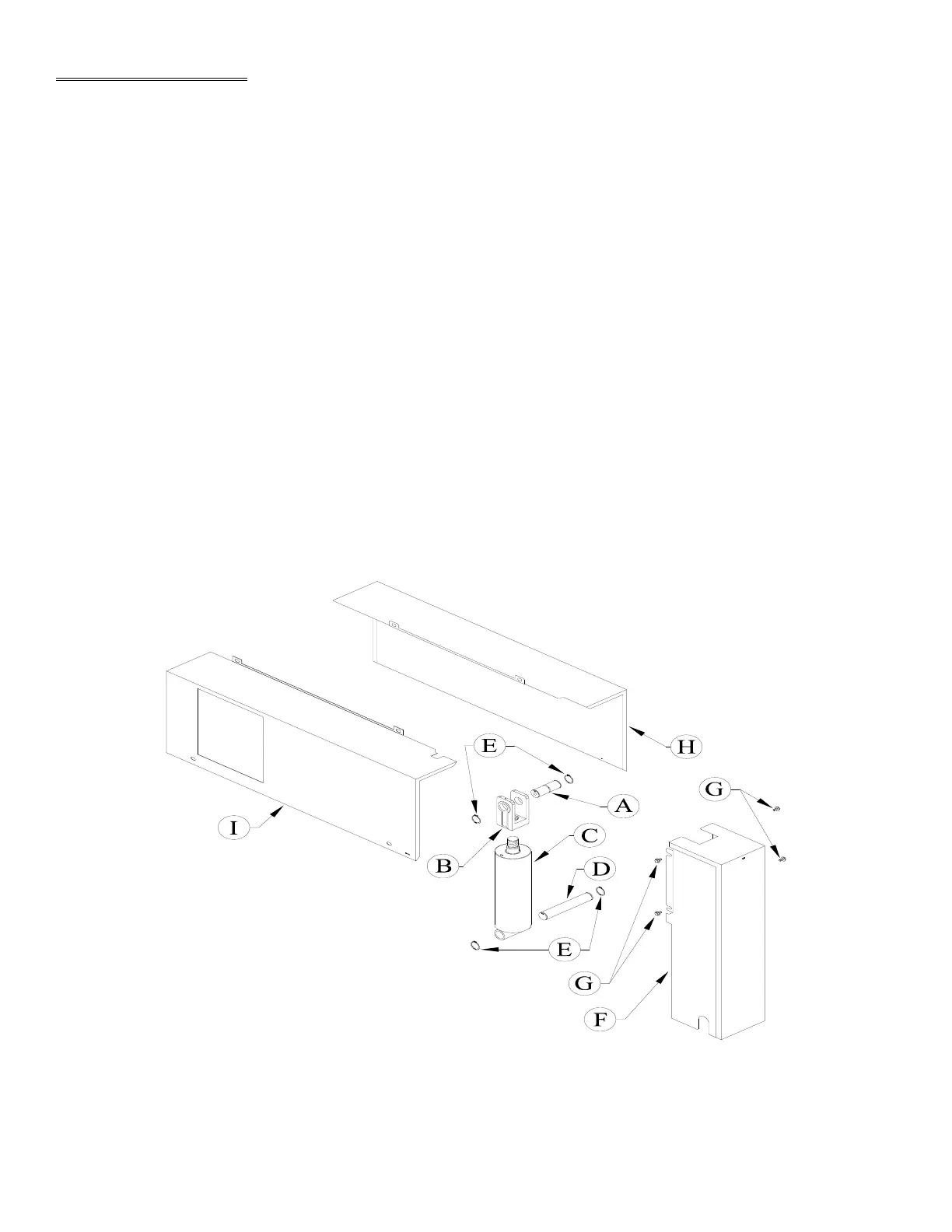

FIGURE 39
