Scotchman 9012-24M - Optional Gauging Equipment; 48 Inch Deluxe Back Gauge

Page 57

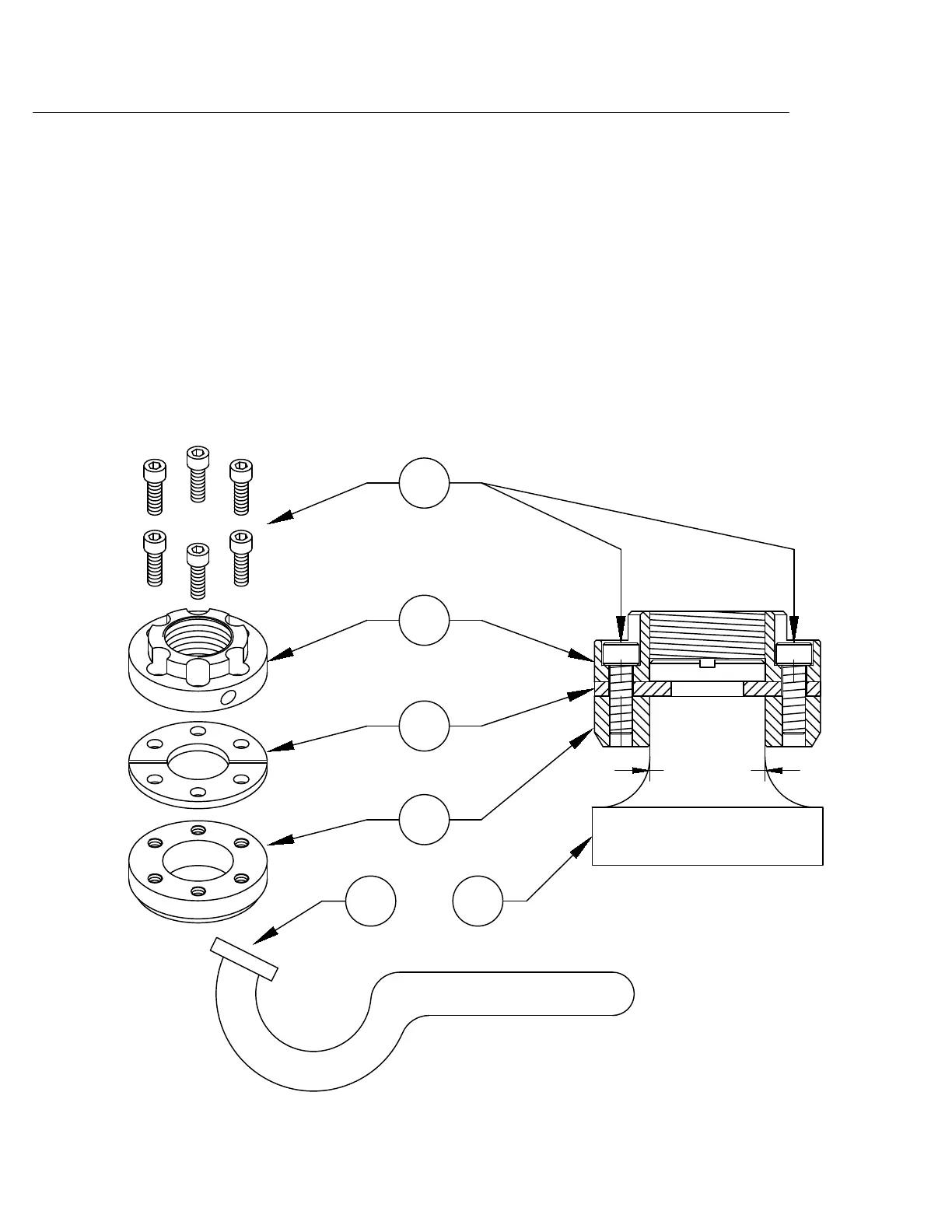

FIGURE 26
221212
M10 x 30
26501
26502
26502
26502
221212
M10 x 30
221212
M10 x 30
221212
M10 x 30
221212
M10 x 30
221212
M10 x 30
26500 Assy.
A
B
C
D
E
18507
F
221212221212
26500
2" Shank
Punch
SEE FIGURE 26 BELOW.
The heavy duty split-ring retaining nut is used in oversize punching applications that require a punch
with a 2 inch (51mm) shank diameter (E). This retaining nut requires a pin wrench (F), which should be
ordered when ordering the nut. Follow the instructions in SECTION 6.1 for proper punch and die
alignment. To use the heavy duty split-ring retaining nut, remove the six socket head cap screws (D).
Slide the retaining ring (C) over the punch shank. Place the split-ring (B) into the groove on the punch.
Place the ring nut (A) on the punch and replace the six socket head cap screws (D). Remove the bottom
of the standard stripper when using this punch.
7.11E HEAVY DUTY SPLIT RING RETAINING NUT
