9.9 CONNECTING LINK ASSEMBLY
ITEM PART# DESCRIPTION
A 030570 Connecting Link
B 006190 Connecting Link Pins
C 016620 2" Snap Ring
D 243101 M-6 Grease Zerk

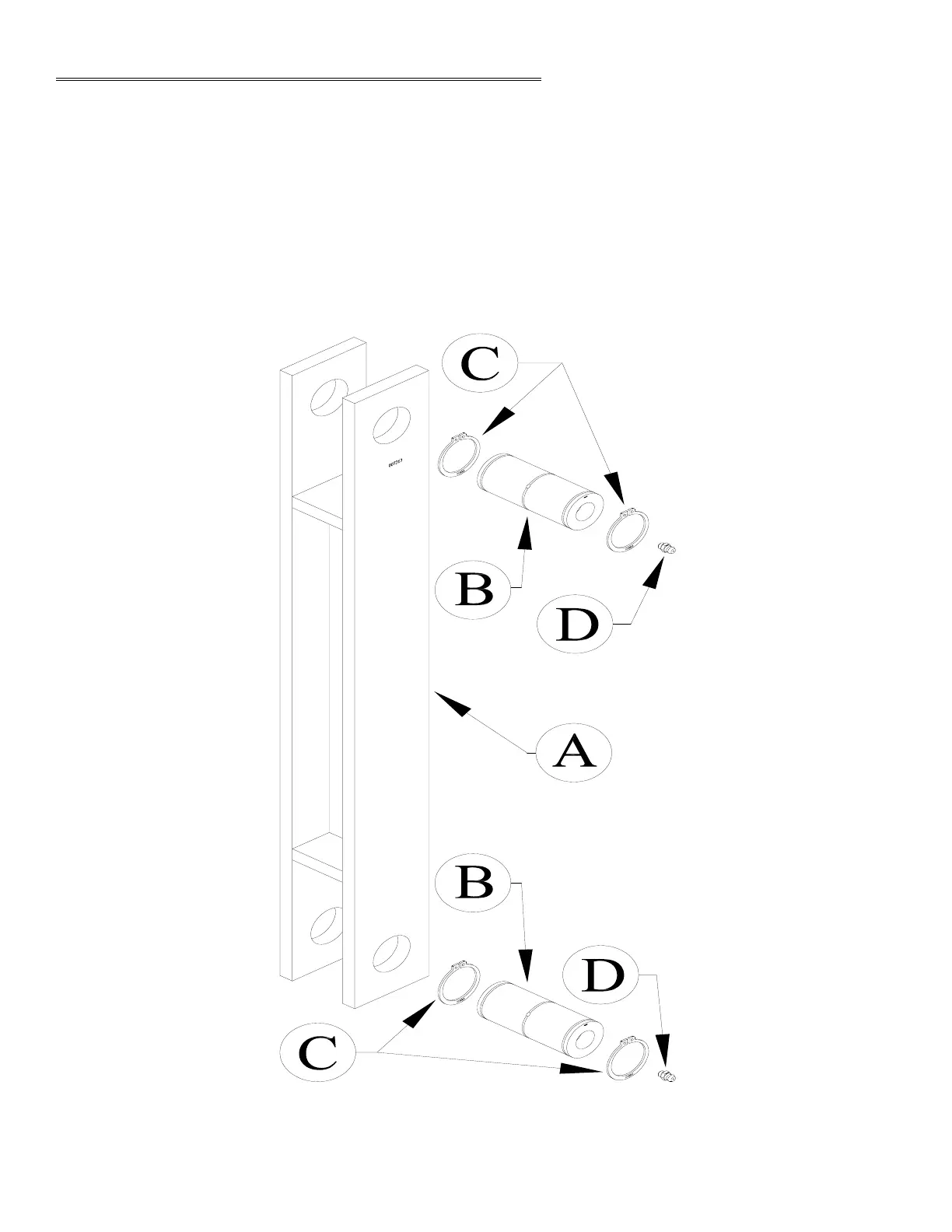

FIGURE 40
