Scotchman 9012-24M - Electrical Unit Parts List

Page 93

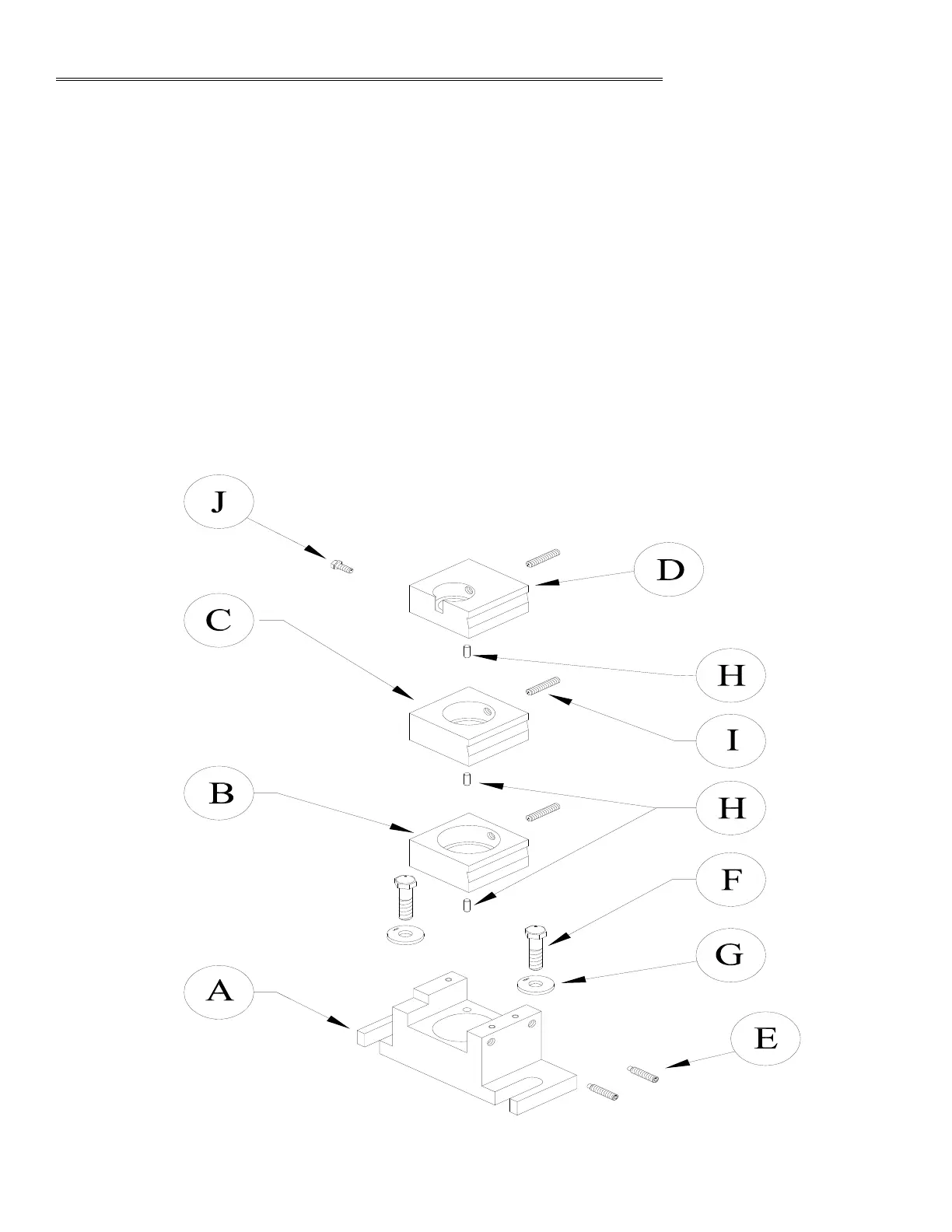

9.12 STANDARD DIE HOLDER WITH INSERTS
ITEM PART # DESCRIPTION
A 006013 Cast Die Holder
B 006302 3" Die Insert (76mm)
C 006252 2-1/2" Die Insert (63mm)
D 006202 2" Die Insert (50mm)
E 218058 M-10 Set Screw
F 201625 M-16 HHCS
G 113017 Reid Washer
H 077145 Pin
I 219060 M-10 x 50 SS
J 204220 M-10 x 30 HHCS
FIGURE 44
