Page 63
21. Slide the bottom half of the urethane stripper onto the stripper mounting plate (A) from the inside
of the machine.
22. Make sure that the spring retainers (G) are positioned so that the lip on the retainer fits against
the machined area on the front of the mounting plate (A). Finger tighten the retaining nuts (I).
23. Power the machine and jog the ram down until the urethane stripper contacts the top of the die
die holder. Continue to jog the ram down, compressing the urethane springs until the retaining
nuts (I) can be tightened down to the shoulder on the stud.
24. Install the stripper guard (H) on the front of the stripper.
CAUTION: REMEMBER THAT THE MAXIMUM CAPACITY OF THIS STRIPPER IS 1
INCH MATERIAL. ALSO, REMEMBER THAT THE STRIPPER MOVES WITH THE
PUNCH.

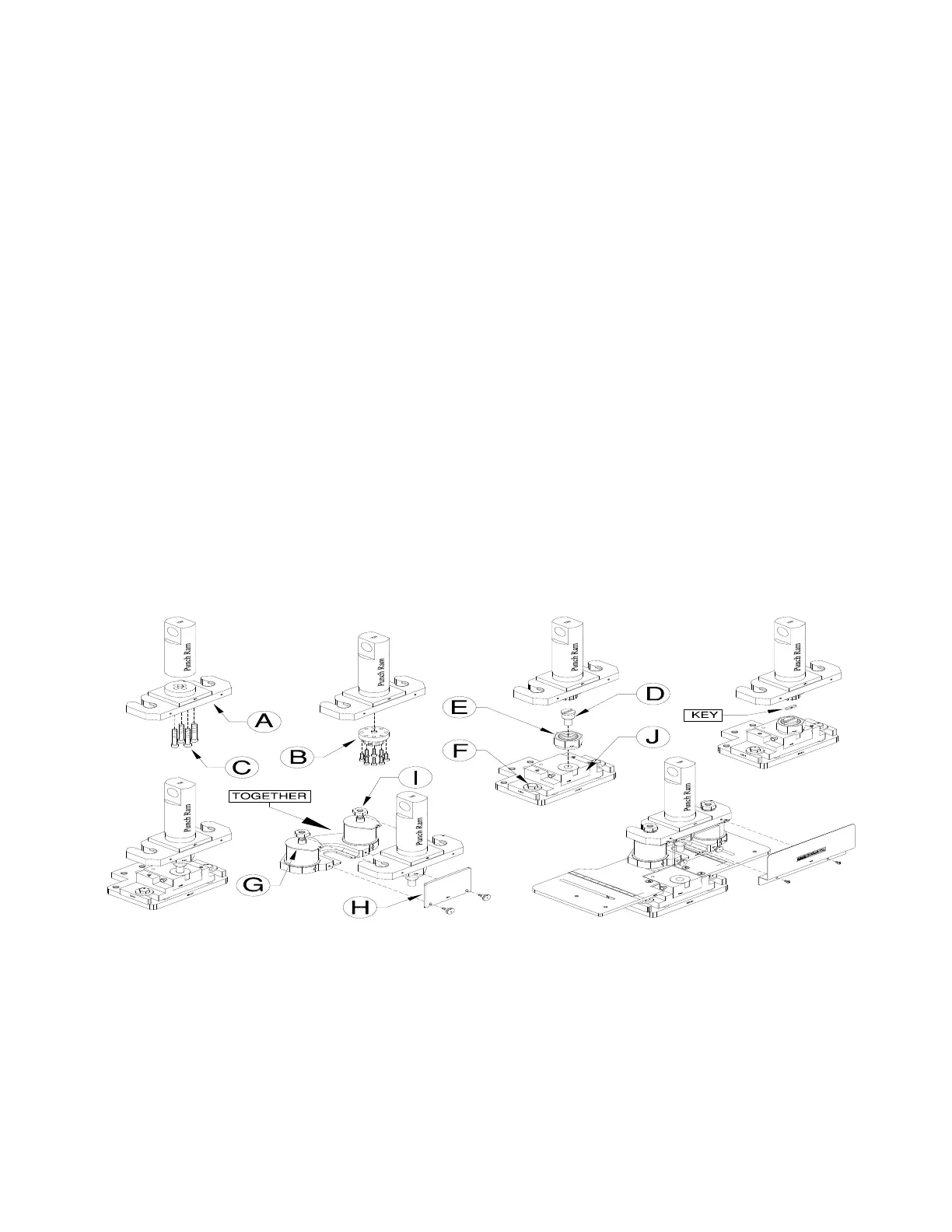

FIGURE 28
