11. Oil all of the seals before reassembling the cylinder.
12. After the piston and head are assembled on the shaft, they can be tapped back into the tube with a
brass or plastic hammer.
13. Re-thread the cylinder head into the tube.
14. Reconnect the hoses to the cylinder.
15. Use care removing the blocking device (A) from under the arms. Since the cylinder does not
contain oil, it may drop some when the blocks are removed.
16. Cycle the machine several times to purge the air out of the hydraulic system.

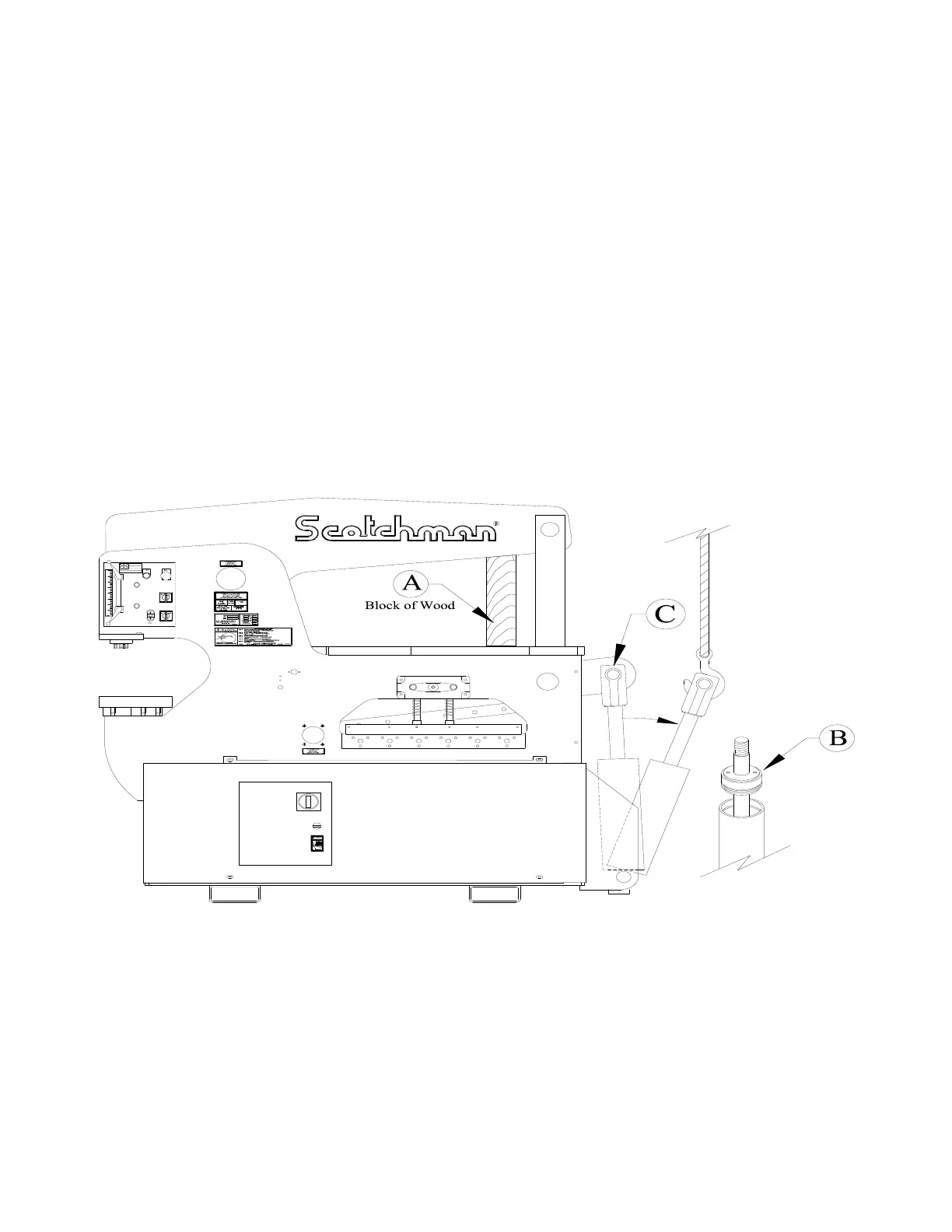

FIGURE 31
