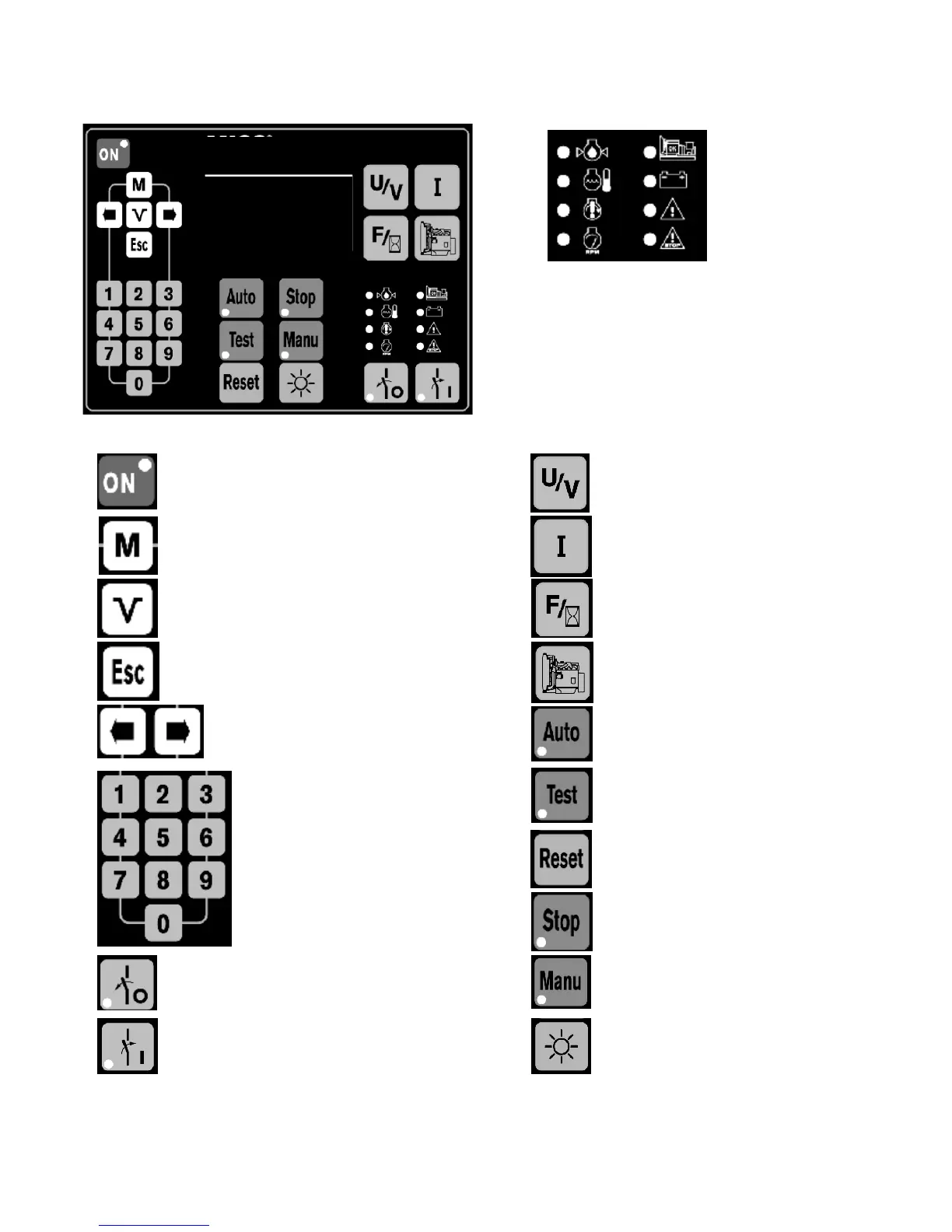

Presentation and technicals characteristics_____________________________________________________________________________________________________
Power on after automatic shutdown
(with LED).
Button to access the main menu (pro-
gramming/display)
Button to validate a selection.
Button to exit a selection Button to display the engine parame-
ters
Buttons to browse through menus and
adjust contrast
Button to select Auto mode (with LED).
Button to select Test mode (with LED).
Number pad
Button reset a fault.
Button to select Manu mode (with
LED).
Button to open genset breaker (with
LED).
Button to select Manu mode (with
LED).
Button to close genset breaker (with
LED).
Button to test the LEDs (except ON
button LED).
1. Oil pressure fault/shutdown (red LED on).
2. Water Tº fault/shutdown (red LED on).
3. Overcranking fault/shutdown (red LED on).
4. Overspeed fault/shutdown (red LED on).
5. Genset on load or ready to take the load (green LED on).
6. Charge alternator fault/shtdwn (red LED on).
7. General alarm/warning (yellow LED flashing).
8. General fault/shutdown (red LED flashing).
Button to display the voltages.
Button to display the currents
Button to display the frequency and
hours counter
1
2
3
4
5
6
7
8
