10/01
29
66 - OOtthheerr ssyymmbboollss
Loss of system voltage (symbol 9)
Loss of the system voltage (or loss of mains) is represented on the screen by a crossed-out transformer.
The micro-cutout time-delay (parameter 103 of
Timing
menu) is displayed next to this symbol and decrements automati-
cally from the adjustment setting to 0.
Example of screen showing system voltage is no longer available. 12 seconds remain prior to startup
of the generating set (micro-cutout time delay).
55 - DDiissppllaayy ooff mmeecchhaanniiccaall vvaalluueess
By pressing the Engine button successively, the following is displayed: oil pressure, water temperature, oil temperature, battery voltage, engine
speed and fuel remaining in daily tank.
The notations: %, RPM and Volts are preserved. For more information on the meaning of the notations,
refer to the user paragraph 5.
The notations: Bars and C° are preserved. For more information on the meaning of the notations, refer
to the user paragraph 5.
A third screen can be accessed using the
Engine
button with Anglo-Saxon notations for the oil pressure (PSI), the water temperature (°F) and
the oil temperature (°F).
Note: if the oil temperature is not selected (Sensors menu) or if the analog pack has not been selected, the symbol(s) will not appear on the
screen.

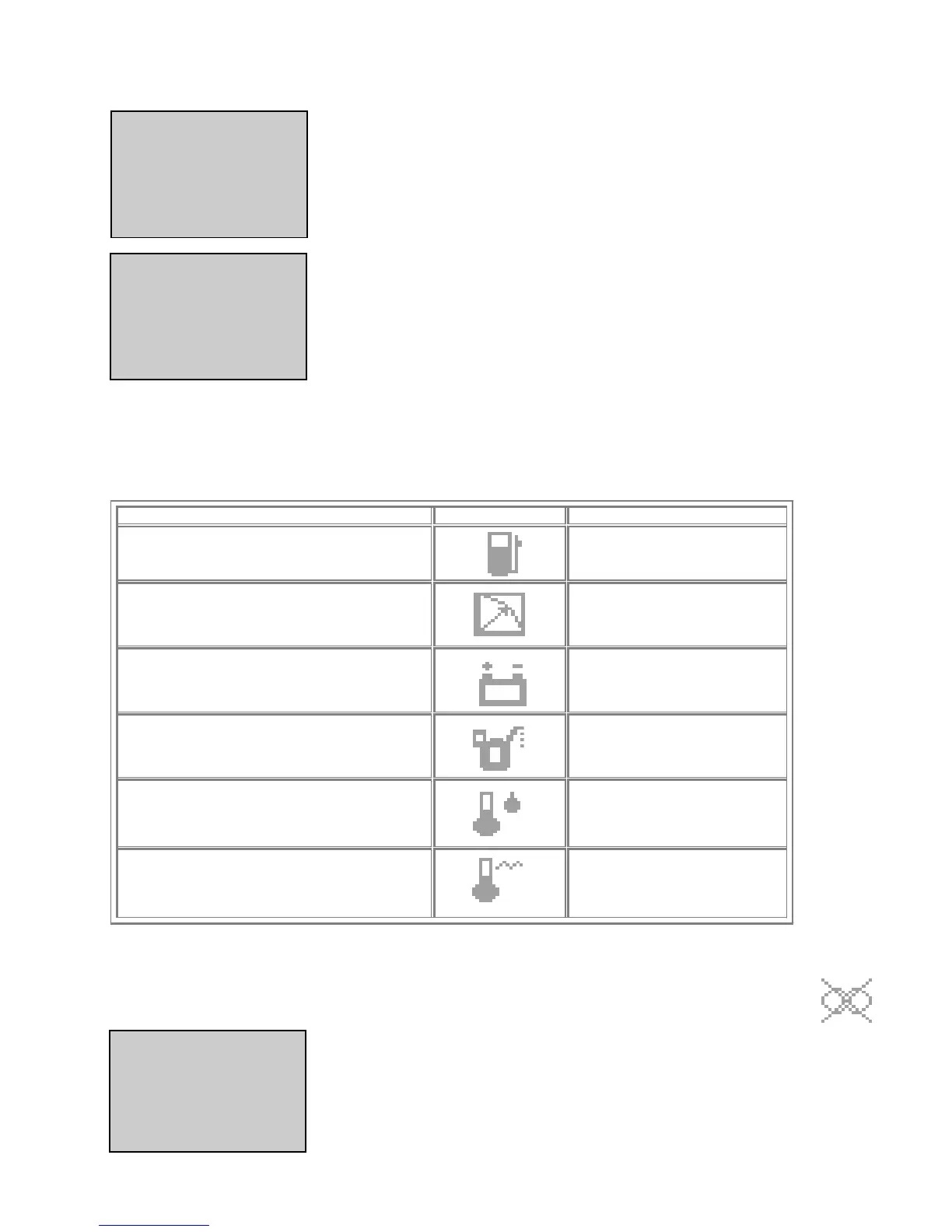

All the symbols related to the engine parameters are represented in the table below.
_____________________________________________________________________________________________________Appendix - software version 1.05e: "international" language
