5

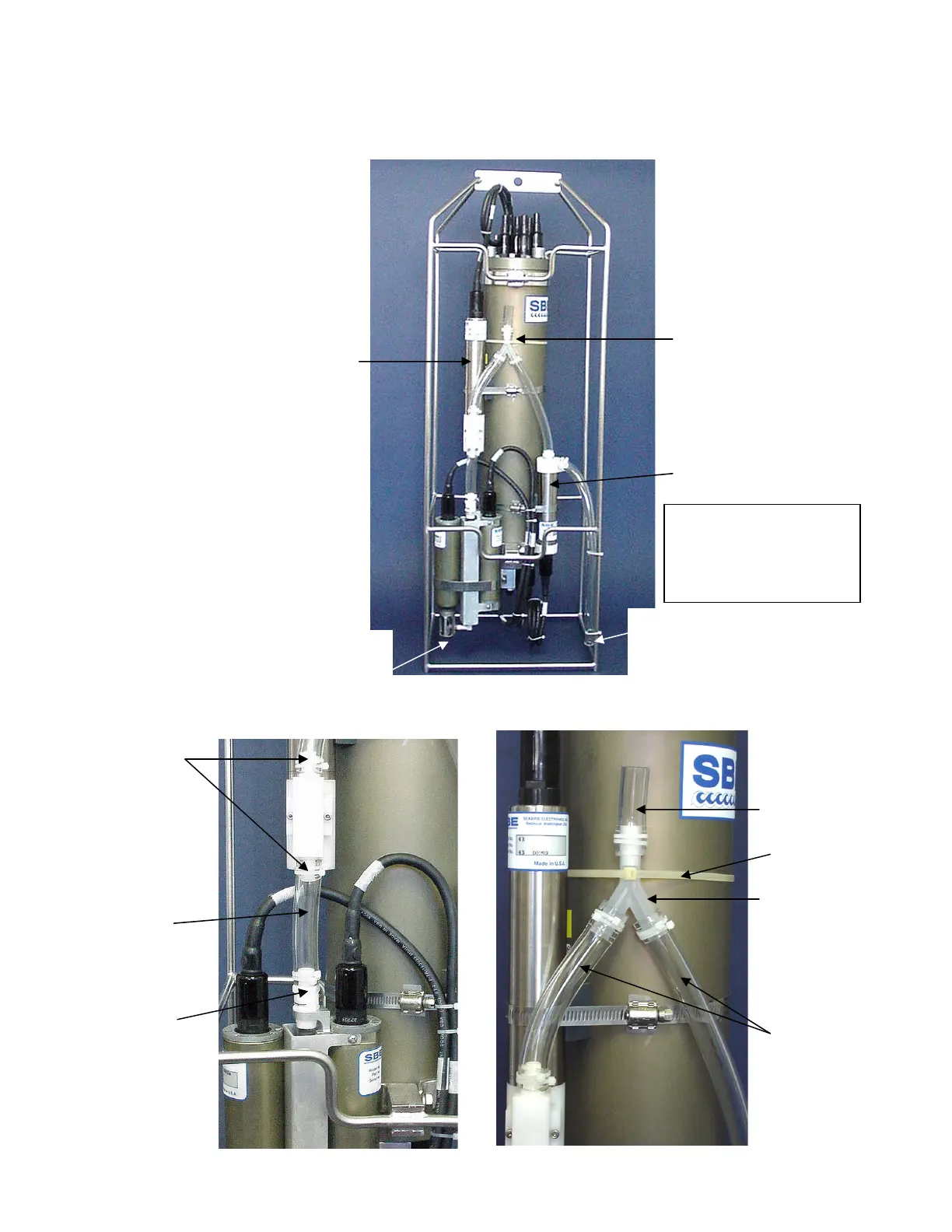

Vertical Configuration Schematic and Details (continued)
Secure each tubing connection with two cable ties.
See Y fitting
Detail below
Pump
Exhaust tubing – same
horizontal plane as TC Duct
intake. Attach to guard cage
strut with cable ties.
Overall View
TC Duct intake – same
horizontal plane as
exhaust tubing
DO sensor
Y Fitting Detail
100 mm (4 in.)
length of
Tygon tubing
Y fitting with
air release
valve
Cable tie
Tygon tubing
Temperature/Conductivity to
DO Sensor Detail
Tygon
tubing
Slide larger
diameter
Tygon tubing
over smaller
diameter
Tygon tubing
to provide
tight seal at
DO sensor
Quick
release
coupling on
conductivity
cell
Note:
Exhaust tubing is usually
omitted by Sea-Bird for an
SBE
19, 19plus, 19plus V2,
or 25.
233
