CAUTION: Ensure to maintain the
seat high enough so as to have
room to pull the seat post out with-
out touching the body.

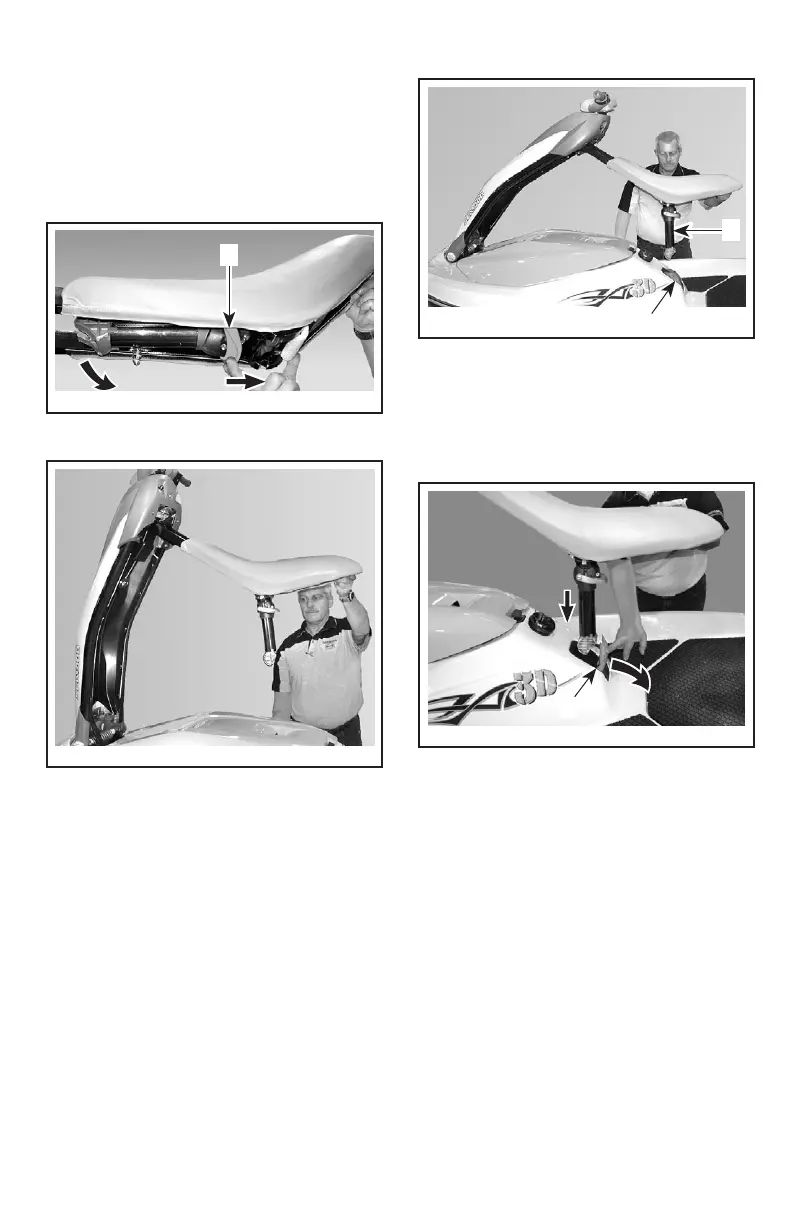

Pull the red locking lever rearward and
pull the post out of the seat.
F22L0MY
1
1. Lock lever
F22L0SZ
Rotate the post to a vertical position
and move the seat to line up the post
with its receiver.
NOTE: Notice that when rotating
post, it will lock at an intermediate
position. Push the red lever again to
release the lock and continue to rotate
post until it becomes vertical.
F22L0NY
2
1
1. Post vertical
2. Receiver
Lift the receiver cap and hold open
while inserting the seat post in re-
ceiver. Ensure post knuckle is fully in-
serted into the receiver.
F22L0OY
1
1. Lift receiver cap
To lock post in position:
– Slide seat rearward.
– Firmly push seat down. You should
hear a “clunk“.
_____________________
41
