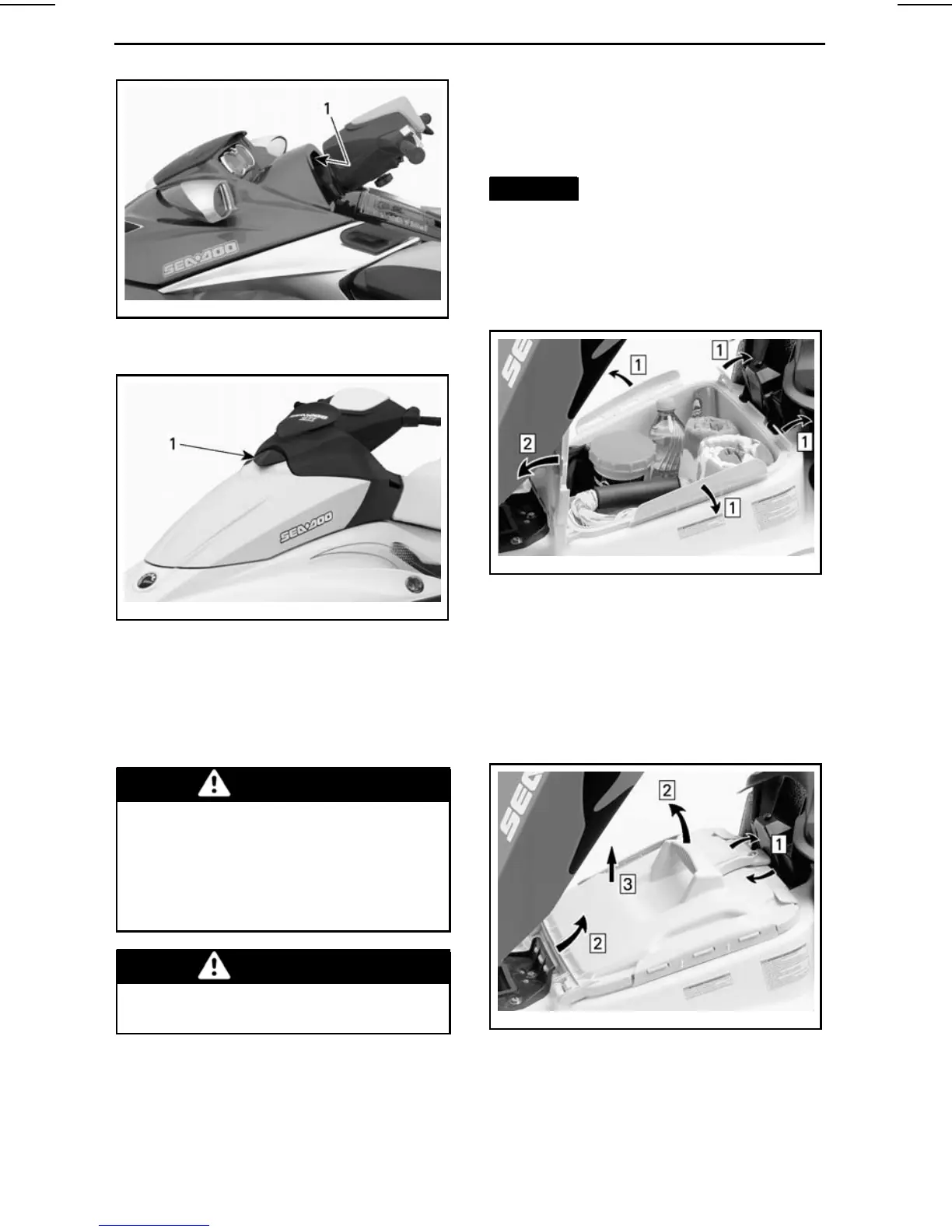

CONTROLS/INSTRUMENTS/EQUIPMENTS
smo2007-002-001_a
TYPICAL — RXP-X 255 MODEL
1. Latch lever
smo2007-002-002_a
TYPICAL — GTS PRO MODEL
1. Latch lever
NOTE: Verify periodically the tight-
ness of the storage cover lock pin.
Tighten if needed and make sure stor-
age cover latches properly.
WARNING
Never leave any heavy or break-
able objects loose in the storage
area/basket. Do not overload.
Never operate the watercraft with
any storage compartment cover
open.
WARNING
Never store or carry anything un-
derneath storage bin.
Self-Contained Removable Storage
Bin
GTS Pro
NOTICE
MAXIMUM load is 11 kg
(25 lb).
Cover Opening
Release cover latches then pull on
cover handle to open.
smo2008-001-067_a
Step 1: Release cover latches
Step 2: Open cover
Storage Bin Removal
Ensure cover latches are properly
locked.
Releasebuttonthenpullonstoragebin
handle to remove from watercraft.
smo2008-001-069_a
Step 1: Turn release handle
Step 2: Lift and tilt to release front tabs
Step 3: Remove storage bin
44
