MAINTENANCE PROCEDURES

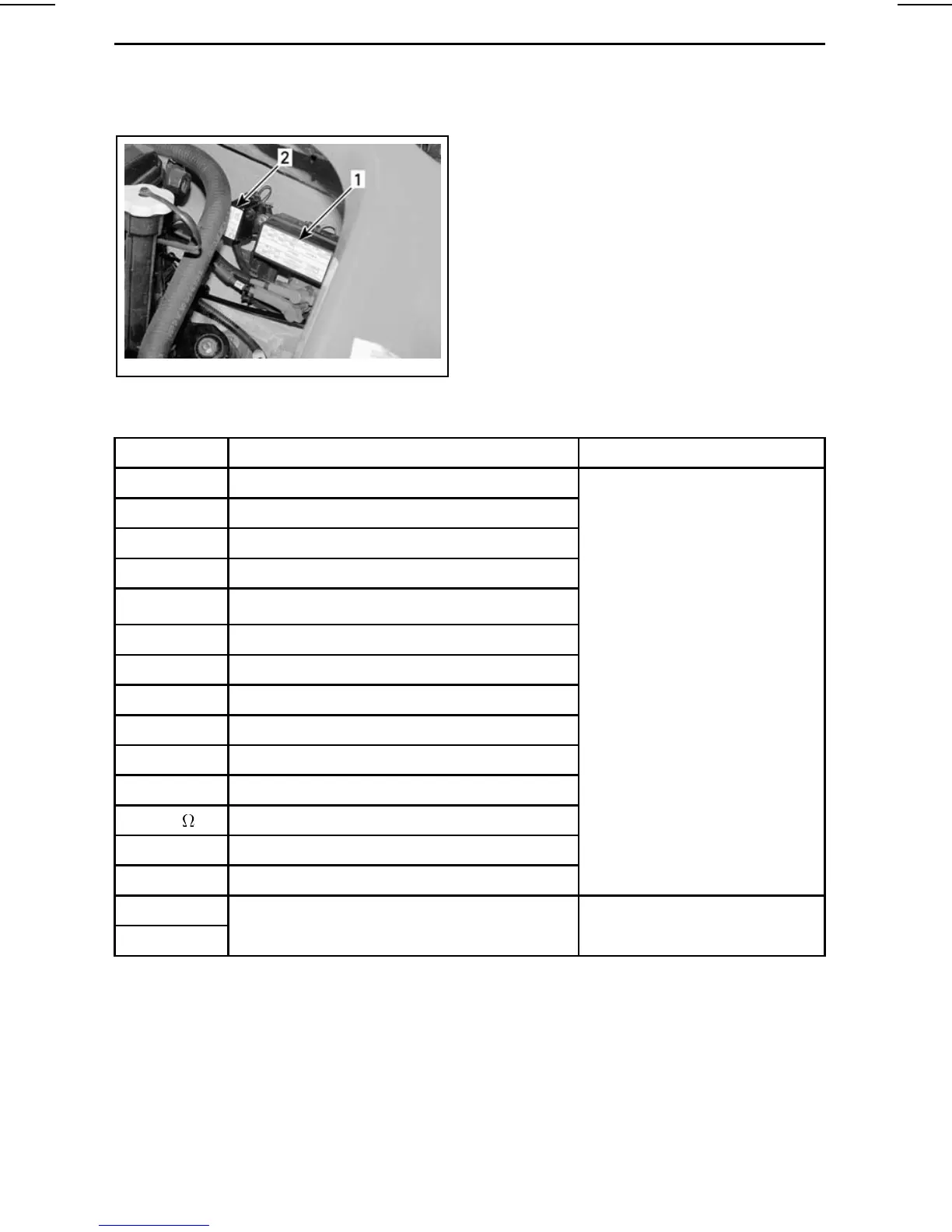

Fuse Location/Description
smo2008-001-071_a
TYPICAL
1. Fuse box
2. Main relay fuse box
To remove fuse box cover, squeeze
locking tabs together, hold and pull
fuse box cover to open.
FUSE DESCRIPTION LOCATION
3 A Information center gauge
3 A Beeper
3 A Depth sounder (if so equipped)
3 A Fuel level
7.5 A
VTS (if so equipped)
10 A Fuel pump
10 A
Cylinder 1 (ignition coil and injection)
10 A
Cylinder 2 (ignition coil and injection)
10 A
Cylinder 3 (ignition coil and injection)
3A
T.O.P.S. sensor
15 A Diagnostic connector
500 Fuel level
10 A Electric starter
3A
CAPS
Fuse box
(engine compartment)
30 A
30 A
Main
Main relay fuse box
(engine compartment)
76
