4. Use wedges to lift the upper panels off
of the lower panels about ½ inch.
5. Install a good bead of caulking
between the bottom of the upper
panels and the top of the lower panels,
remove the wedges and radome lifting
brackets, then firmly tighten all the
bolts.
6. Remove the tape from the upper and
lower panels. All tape should now be
removed from the radome.
7. The ADE Assembly is now
complete, ready for web straps to
be attached for lifting the ADE
onto the ship.

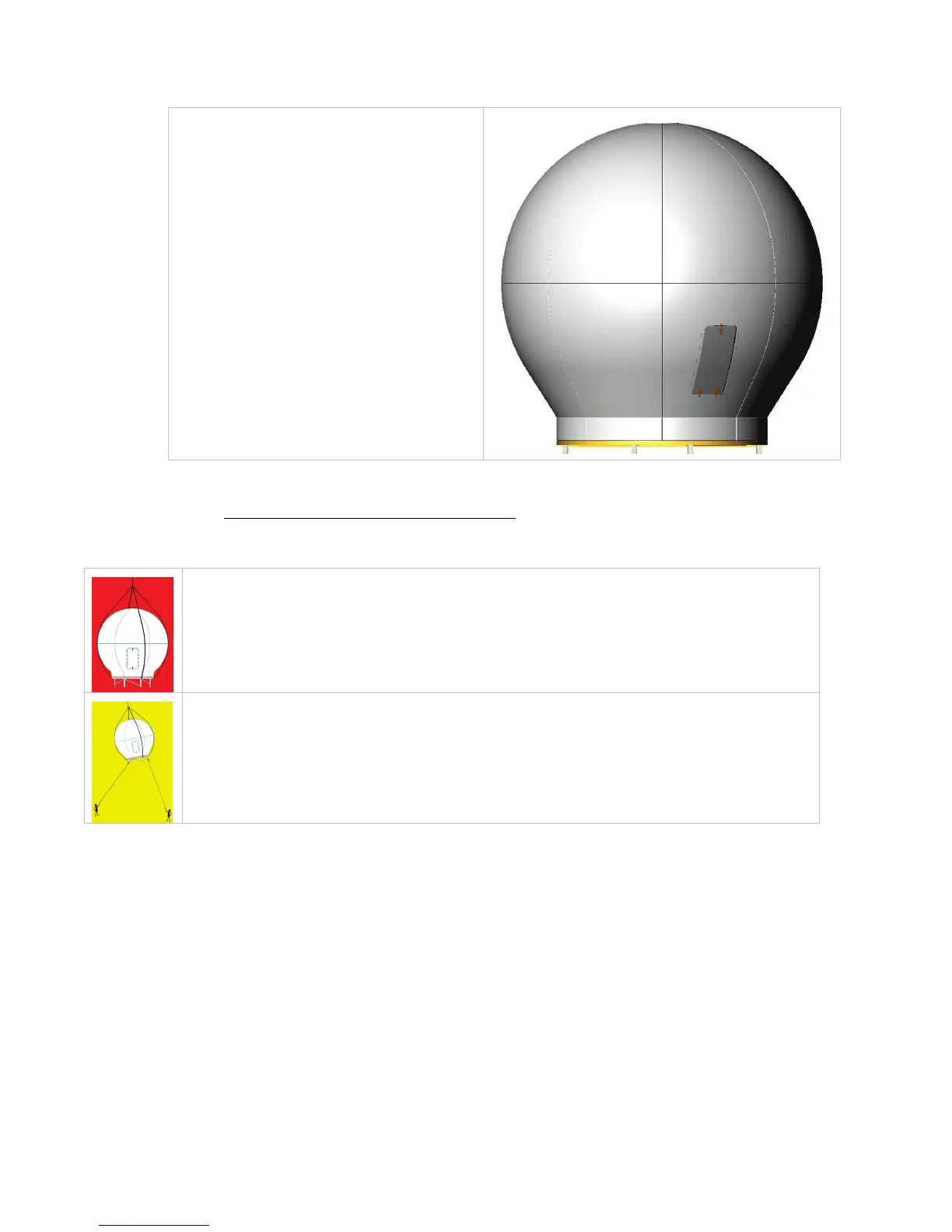

3.4.6. Prepare the 168” Radome ADE for Lift
Refer to the Base Frame Assembly drawing for your system and the procedure below.
WARNING: Hoisting with other than a webbed four-part sling may result in catastrophic crushing
of the radome. Refer to the specifications and drawings for the fully assembled weight of your
model Antenna/Radome and assure that equipment used to lift/hoist this system is rated
accordingly.
CAUTION: The antenna/radome assembly is very light for its size and is subject to large swaying
motions if hoisted under windy conditions. Always ensure that tag lines, attached to the radome
base frame, are attended while the antenna assembly is being hoisted to its assigned location
aboard ship.
