14400MK2-21 C/Ku-Band TVRO Maintenance and Troubleshooting
6-5
6.5.2. Radio M&C
The RS-232, RS-422, or RS-485 (depending on configuration) Radio M&C signals pass from the BDE computer
through the RF M&C port of the base modem and are modulated and demodulated. These M&C signals are
diplexed with the Pedestal M&C signals before passing through to the above decks modem. The Pedestal
modem then converts the RF Signal back to RS-232/422/485, before routing to the M&C port of the above
decks radio equipment via an interface cable.
6.5.3. Channel Identification
There are four base frequencies used in the 400MHz FSK modem assemblies:
• The BDE Modem Transmits Pedestal M&C at 452.5 MHz
• The BDE Modem Transmits Radio M&C at 447.5 MHz
• The ADE Modem Transmits Pedestal M&C at 465.0 MHz
• The ADE Modem Transmits Radio M&C at 460.0 MHz

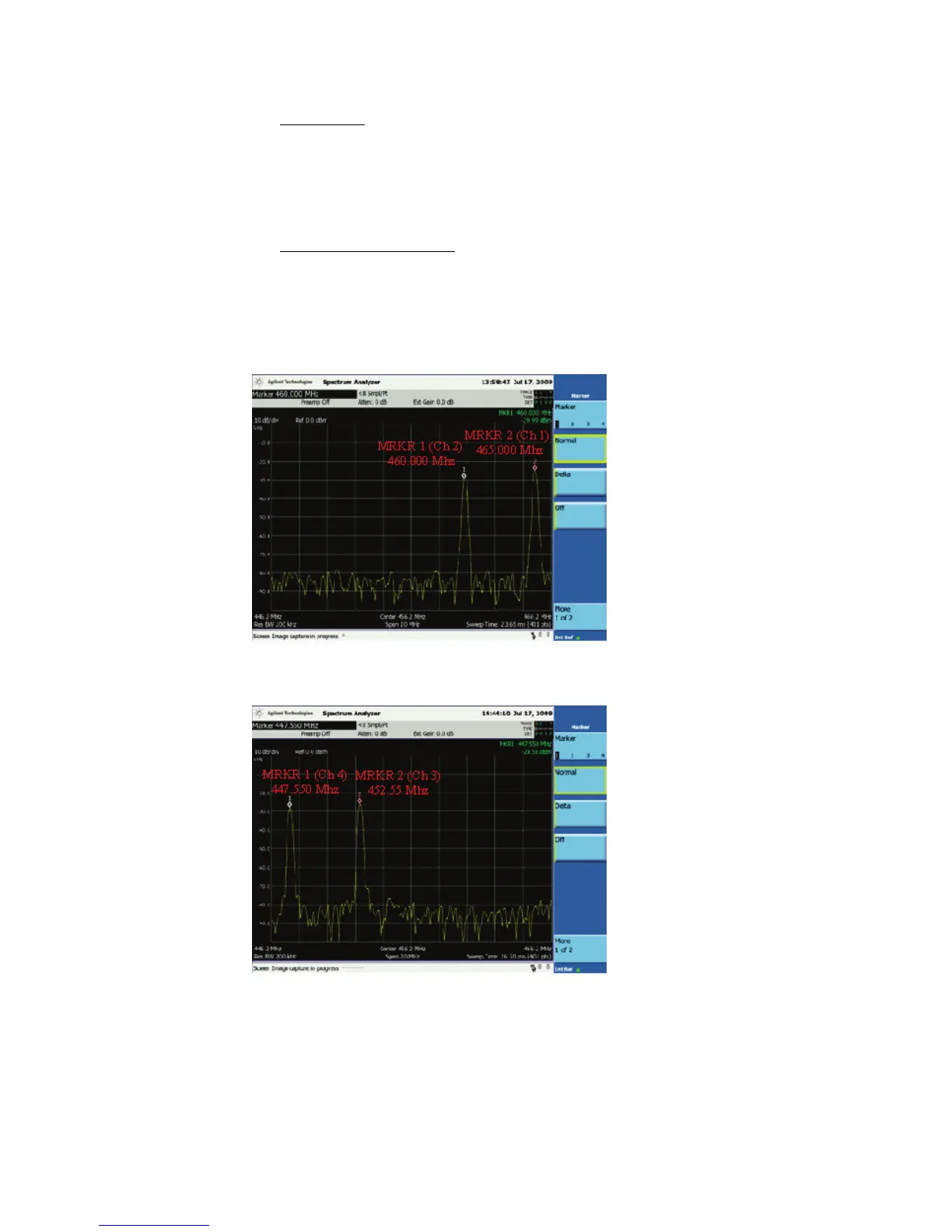

Figure 4 ADE Modem Transmit Frequency Markers
Figure 5 BDE Modem Transmit Frequency Markers
