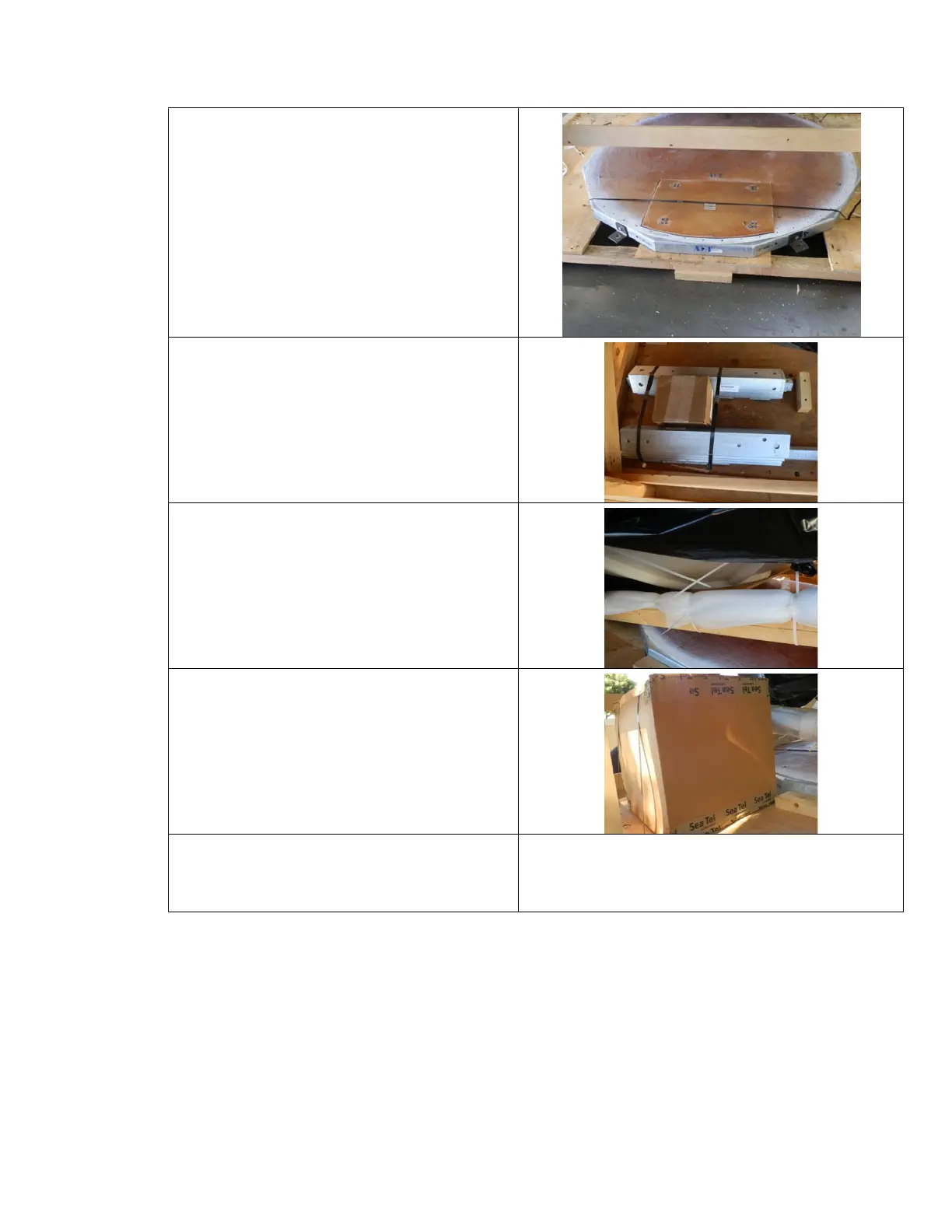

ST94-21 C/Ku-Band TVRO Installation
5. Cut the 2 metal bands holding the base
frame in place.
6. Remove the base frame, by hand or with a
forklift, out from under the reflector support
structure.
7. Move the base frame to the location where
it will be assembled.
8. Cut the straps that restrain the Base Frame
Legs, Braces, Feet and Hardware Kit Box.
9. Move these items to the area where the base
frame will be assembled.
Note: You will assemble the Base Frame later in the
installation instructions.
10. Cut the tie-wraps that hold the Feed Struts
(Top, Left, and Right) to the wooden
diagonal.
11. Keep the struts in this area as the feed will be
installed on the reflector while it is still
mounted to the reflector support structure.
12. Cut the tie-wraps that hold the Feed
Assembly and LNB Box (Contains: Feed
Assembly, LNB and Coaxial Cables) on the
pallet.
13. Keep the Feed assembly in this area.
14. Install the feed struts (one at a time) to the
reflector, aligning the labels on the end of
the feed strut to the label on the dish.
15. Remove the feed assembly from its box.
