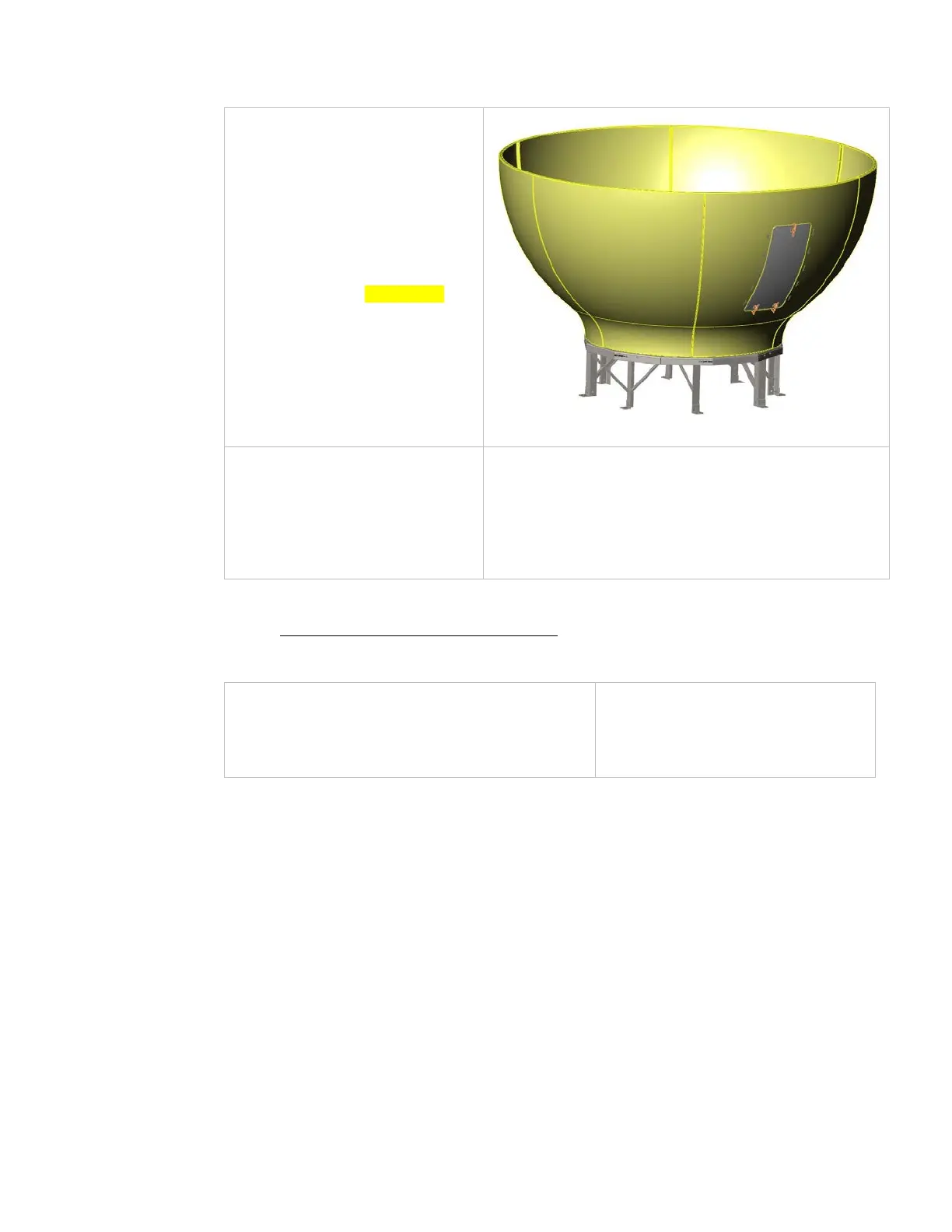

4. Use wedges to lift the lower
panel assembly up off of the
riser panels about ½ inch.
5. Install a good bead of
caulking between the bottom
of the lower panels and the
base frame (smaller dual
beads of caulking can be
applied from outside and
inside if you prefer) , remove
the wedges, apply Loctite to
and then firmly tighten all of
the horizontal seam bolts.
6. Clean excess caulking off
inside and outside of the
radome.
7. Remove tape from the
horizontal edges of the lower
panels.
The bottom half of the radome is
complete. Next you will assemble
your antenna pedestal General
Assembly and install it into this
portion of the radome, before
putting the top half of the radome
on.
3.8.6. Sub-assemble the Antenna Pedestal
Refer to the General Assembly drawing for your system and the procedure below.
1. Install the Base Stand onto the Base Pan using
the hardware provided. Apply Loctite to and
tighten the mounting bolts.
Note: As an alternative, the stand can be mounted to,
and lifted with, the pedestal in step 12 below.
