Installation ST94-21 C/Ku-Band TVRO

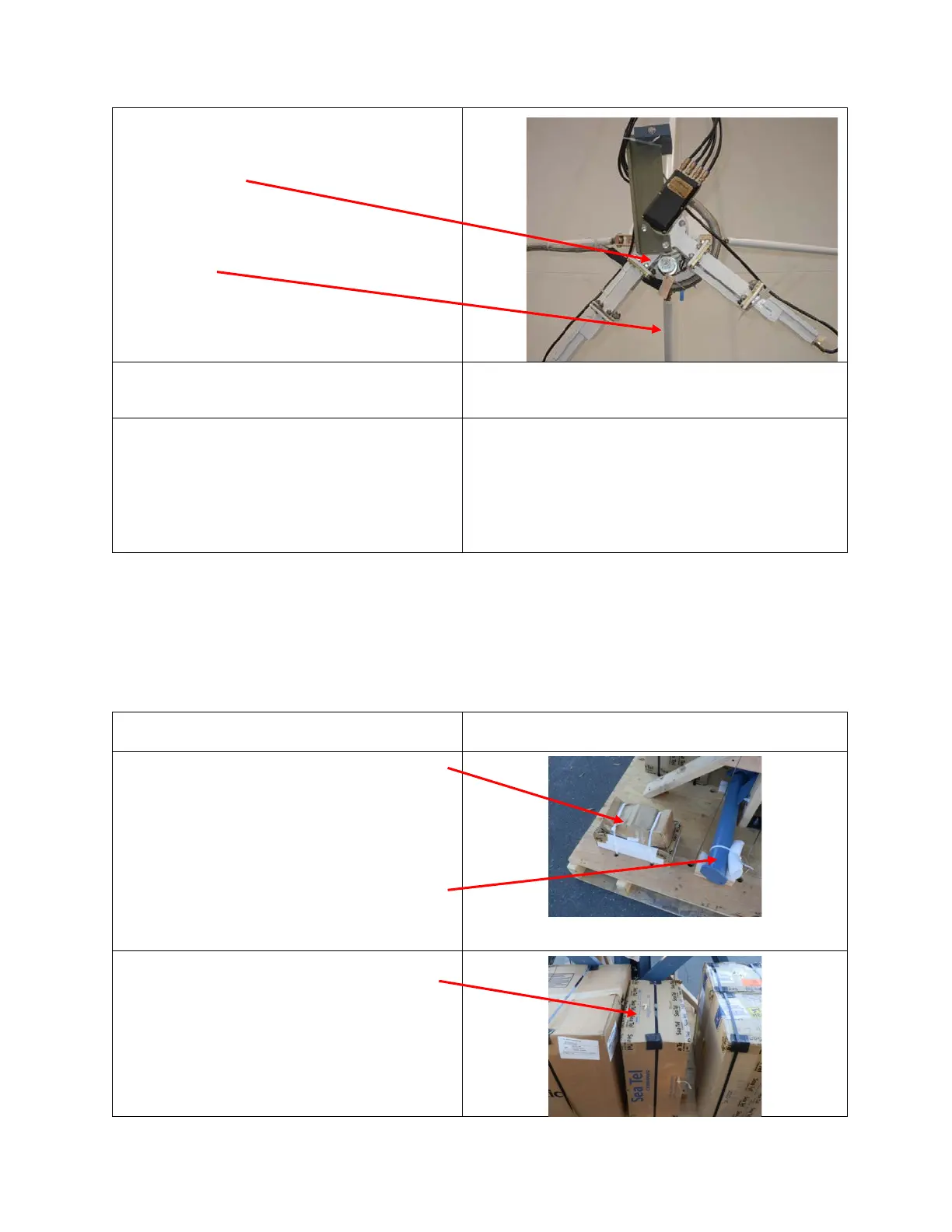

16. Mount the feed assembly with the Linear
drive motor at the bottom strut.
Linear Drive Motor
Bottom Strut
17. Assemble the Feed Assembly to the feed
struts, aligning the labels on the end of the
feed strut to the label on the feed assembly.
18. Keep the assembled reflector/feed assembly
mounted on the reflector support structure
until you are ready to install it on the
Pedestal.
Note: You will install the reflector later in the
installation instructions.
3.6. Unpacking the Pedestal Crate
The Pedestal crate contains the Pedestal Assembly, Spider, DAC & BDE box, RF units, Wave Guide boxes, Hardware Kits
and the Air Conditioning unit if one is with the shipment. If there are two RF units the Wave Guide and hardware for
each is in separate boxes.
Unpacking the Pedestal Crate:
1. Open the crate, to expose the contents, as
2. Cut the bands holding the Balance Weight
Box along with the Hardware and
Miscellaneous Box. Stage these items in the
location where the Pedestal will be
assembled.
3. Cut the band holding the Hardware to
assemble Pedestal to Spider. Assure that this
hardware stays with the mounting spider.
4. Cut the remaining restraints and remove the
mounting spider. Stage it with the location
where the base frame will be assembled.
5. Cut the bands holding the DAC and BDE Box
(pictured in center). Stage this box where
the Below Decks Equipment is temporarily
located.
EAR Controlled - ECCN EAR99
