Seaga Quick Break Combo QB2000 - Product Loading Guidelines

10QB2000 9.2022 vers 1.0

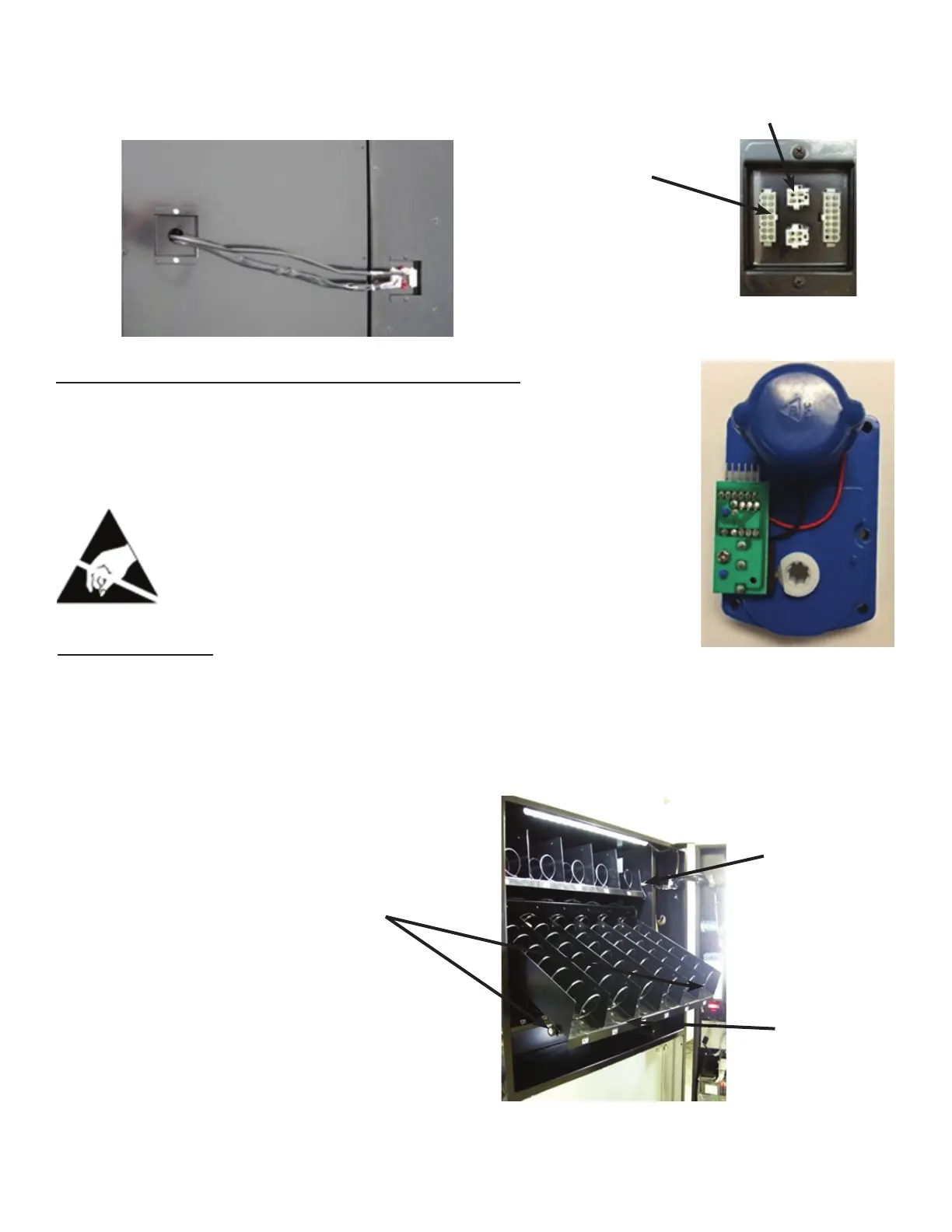

Figure 4 – Wire Harnesses
Aux. Unit
Wire Harness
Main UnitAux. Unit
Light Harness
Theory of Operaon for Snack & Entree Trays
When a snack vends, power is sent to the motor (that drives the coil) and it turns
unl the motor hub is back to the internal “home switch” then it stops and the
vend is considered to be complete. The motor simply rotates 360 degrees and
stops.
Loading Snacks
Trays
Each snack tray has a release lever located on the right side. To place the tray in load posion, hold down on
the release lever and li the tray up slightly; slide the tray forward (toward you) unl the roller hits the stop
built into the side rail. Gently lower the front of the snack tray unl it is lted down, and all coils are exposed
(Figure 5).
Figure 5 – Snack Tray in Load Posion
IMPORTANT: Make sure front
wheels on both sides are
properly engaged in the side
rails when placing tray back
in sales posion
Each tray has a
Release Lever
Tray in Load
Posion
When loaded, li the tray front up so that the tray
is level and push back into posion.
NOTE: Make sure the wheels on the front of the
tray are engaged properly in the side rails and the
release lever is in the forward posion.
