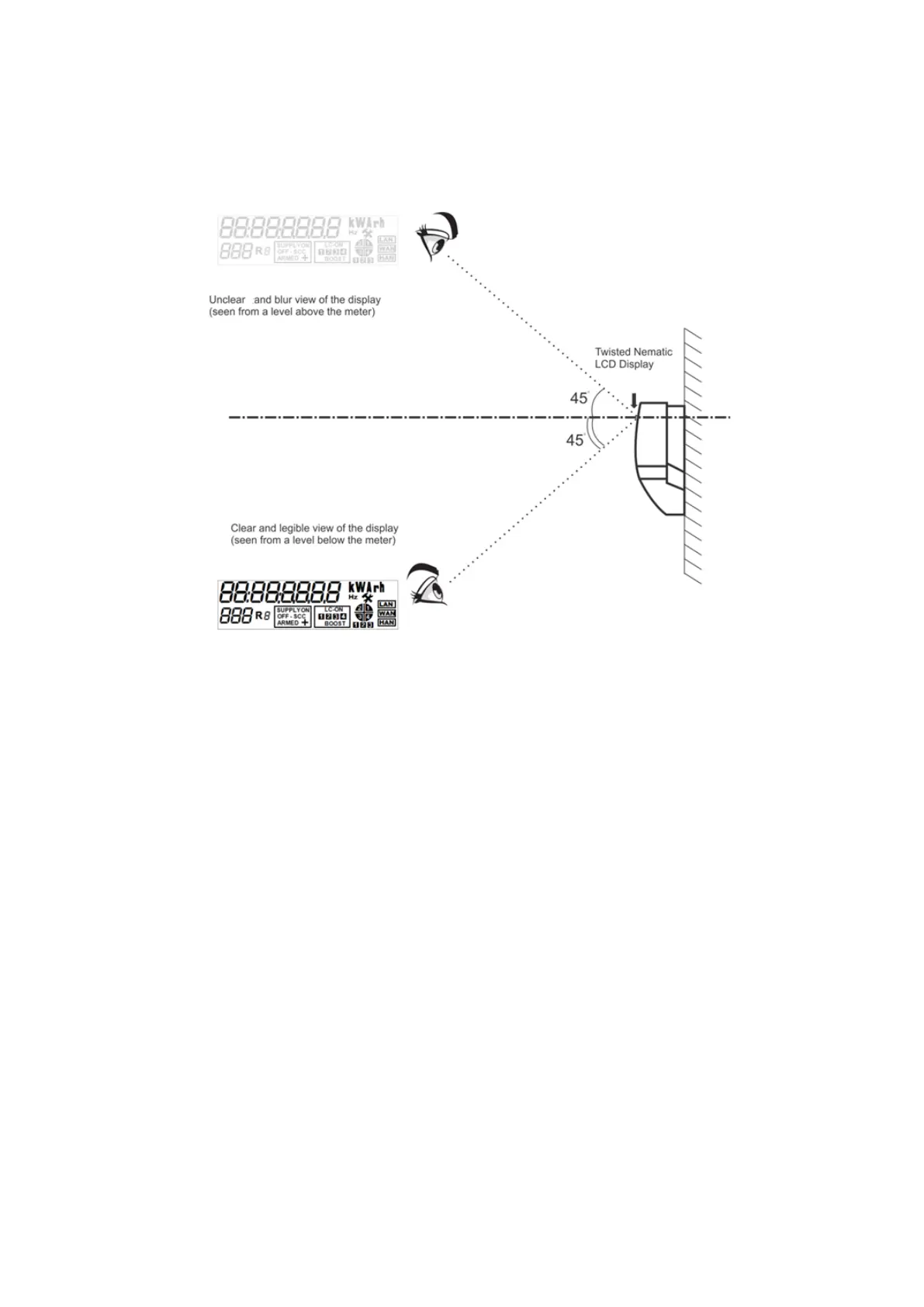

The figure below illustrates the meter display from two different positions:
Case 1: When the meter display is viewed from a level above the meter.
Case 2: When the meter display is viewed from a level below the meter.
Figure 10: LCD Viewing Angle
Page 30 of 48 Sprint 211 Installation Manual BGX701-160-R01
