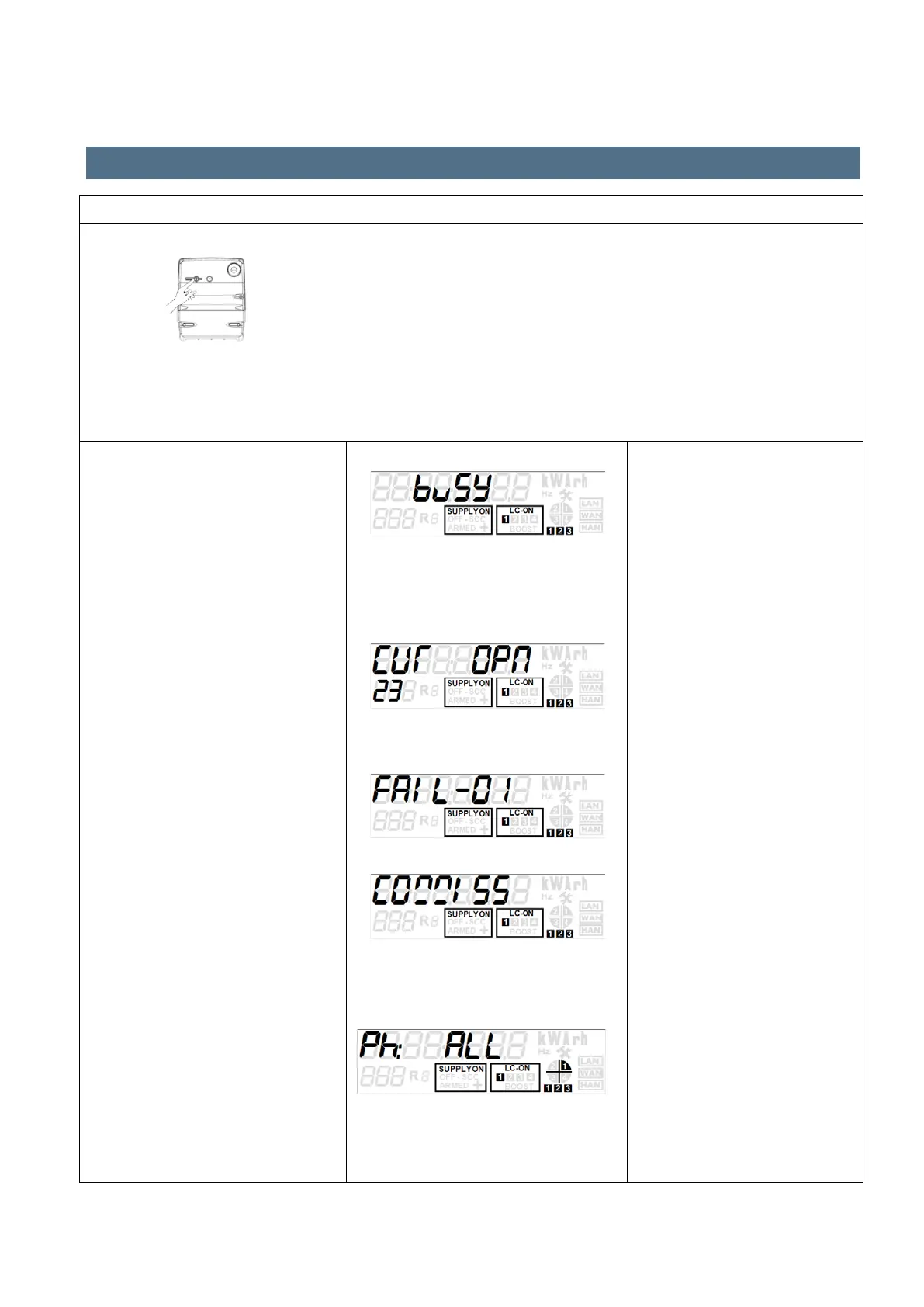

6 Appendix 1: Commissioning
Sprint 211 Electricity Meter
Step 1: Press left push button
Press left push button continuously for 5 seconds on the electricity meter to activate the commissioning
process.
Note: “LC ON 1” display is only applicable for Sprint 211 Aux variant.
Note: ‘Busy’ indicates the wait
period for the communication
module ready state (20 seconds)
The commissioning cycle begins
with the detection of following event
conditions:
1) Meter cover open, terminal cover
open and communication module
removal
OR
2) Battery fail or memory corruption
This displays appear directly If none
of the conditions stated above are
detected by the meter
The All phase displays appears
automatically after a time out period
of 2 secs
OR
(Timeout 2 seconds)
Note: An already comissioned
meter automatically displays
the default display cycle.
Cover Removal Codes
1 indicates Meter cover open
2 indicates Terminal cover
open
3 indicates communication
module removal
Note: If no button is pressed
within the configured time-out
period ( 30 minutes) then the
display automatically returns to
the default display cycle .
BGX701-160-R01
Sprint 211 Installation Manual Page 31 of 48
