Front Panel Menu Operation
20
Battery Voltage
This option reports on the voltage level of the battery.
Step 3: Select Node and Loop number
• Select a Node and Loop number by using and
to scroll through the numbers.
• Select the Node by pressing .
• Select the loop number by pressing . Use
and to scroll the cursor through the CO
Maint, if viewing on the screen.
• Press to exit to the Reports Menu.
An example of the information displayed on screen:
The first and second line pinpoint the exact CO
device which needs to be replaced. The other report
will say “No CO Devices to report”.

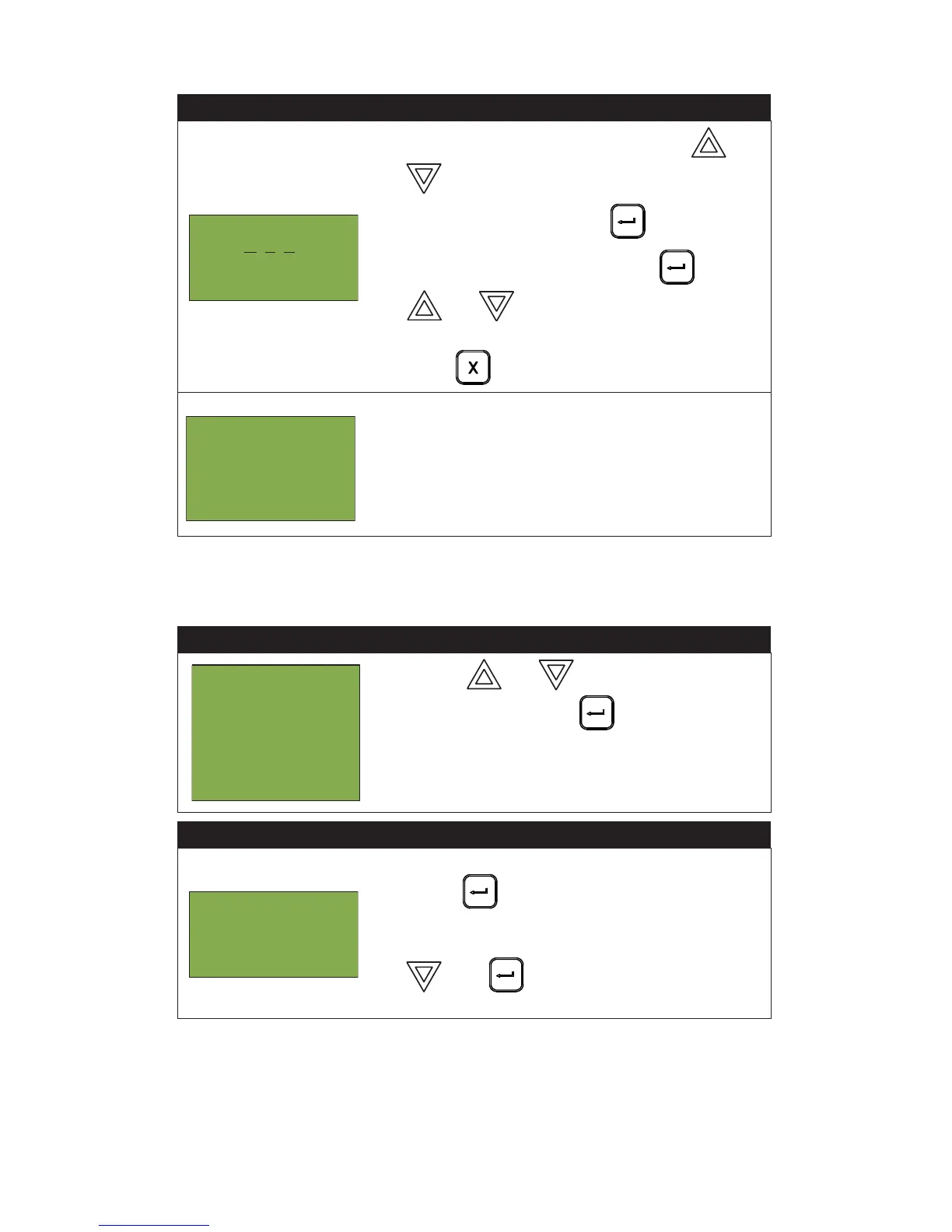

Step 1: Select Battery Voltage
1. Use and to scroll the cursor to “Bat-
tery Voltage”. Press to continue.
Step 2: Print or View the Battery Voltage Report
• To print the Battery Voltage Report to the printer,
press when the cursor flashes beside
“Printer”.
• To view the Battery Voltage on the screen, press
then when the cursor flashes beside
“Screen”.
-Select Node & Loop -
Node: A
L L
Node 33 Lp2 Addr 1
R e p l a c e C O d e t e c t o r
^
^
- Reports Menu -
6 Current PWs
7 Obscuration
8 CO Maint
9 Battery Voltage
- Report to -
1 Printer
2 Screen
To Next Page
