Sena SRL3 - 1.2 Product Details

1 ABOUT THE SRL3
SRL3 Motorcycle Communication System for Shoei Comlink | 8
1.2 Product Details
1
5 6 7 8
12 13 15 1716 1811
2
43
10 14
9

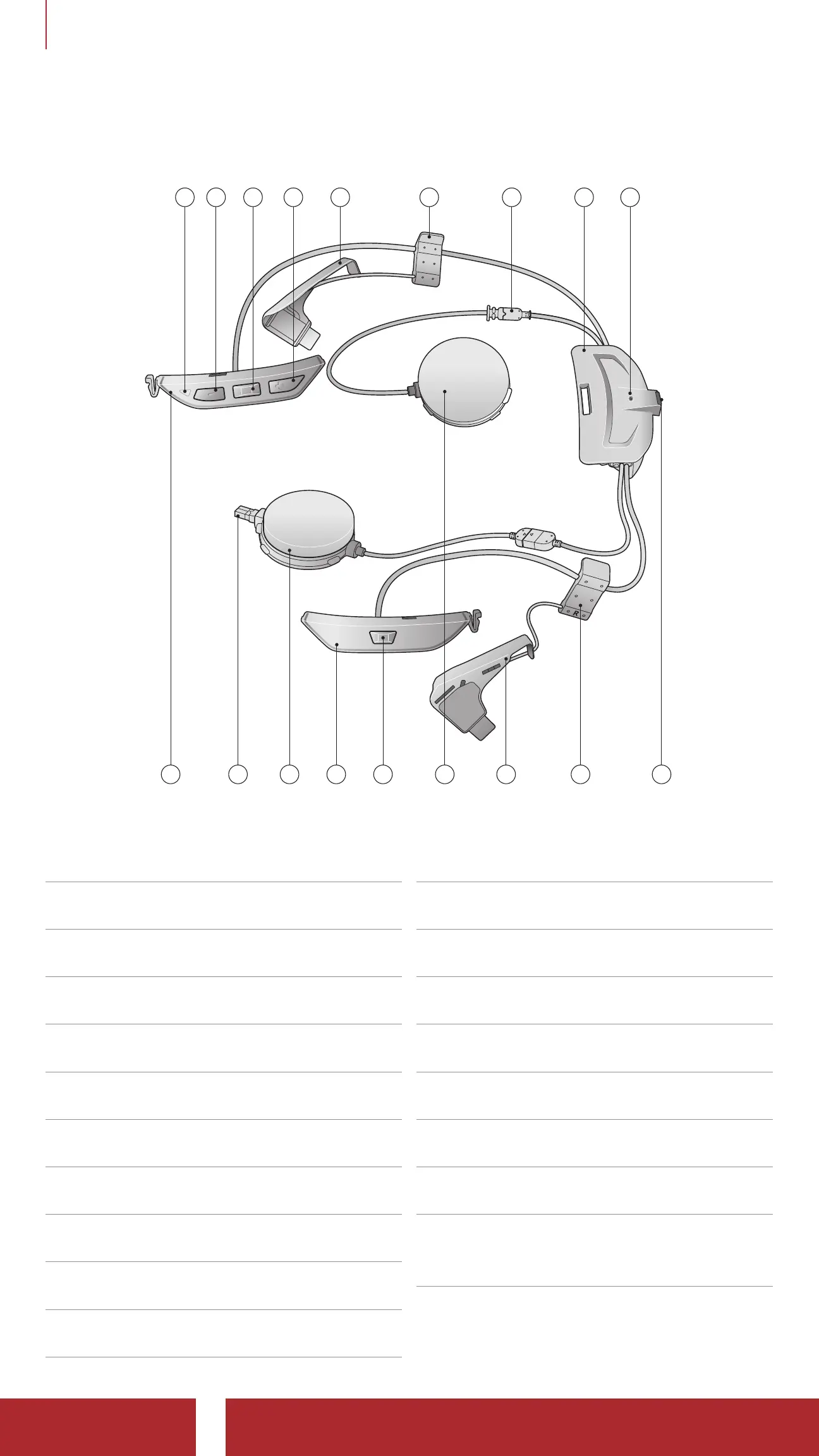

①
Status LED
②
(-) Button
③
Center Button
④
(+) Button
⑤
Antenna (L)
⑥
Clip (L)
⑦
Speaker Connector
⑧
Battery Module
⑨
Charging LED
⑩
Button Module (L)
⑪
Microphone Connector
⑫
Speaker (R)
⑬
Button Module (R)
⑭
Mesh Intercom Button
⑮
Speaker (L)
⑯
Antenna (R)
⑰
Clip (R)
⑱
DC Power Charging & Firmware
Upgrade Port
