MRD 5800 – User Manual
Page 11 (116)
1.1 Product Introduction
The flagship MRD 5800 Advanced Modular Receiver continues Sencore’s long history of
leadership in the receiver/decoder space. The product boasts a full complement of
cutting-edge features, including 4:2:2 H.264 8bit/10bit decoding, up to 8 individual audio
PIDs, 16/32APSK satellite demodulation, and 1080p60 video support with 3G-SDI
output. This feature set makes the MRD 5800 the ideal choice for contribution reception
or demanding distribution applications which require a future-proof set of specifications.
Every MRD 5800 ships with a full complement of basic inputs and outputs built-in,
including ASI input and output and dual SD/HD/3G-SDI outputs. The addition of a digital
video output means that video monitoring is as easy as finding the nearest standard
consumer television or PC monitor. In addition, available factory-configurable MPEG
over IP I/O and DVB-S2 receiver modules make adapting the product to almost any use
case easy.
The receiver also maintains Sencore’s long tradition of ease of use, with a straight-
forward web interface accessible via all major browsers and complete control of the unit
via the front panel keypad, and is backed by Sencore’s best-in-class staff of ProCare
support engineers.

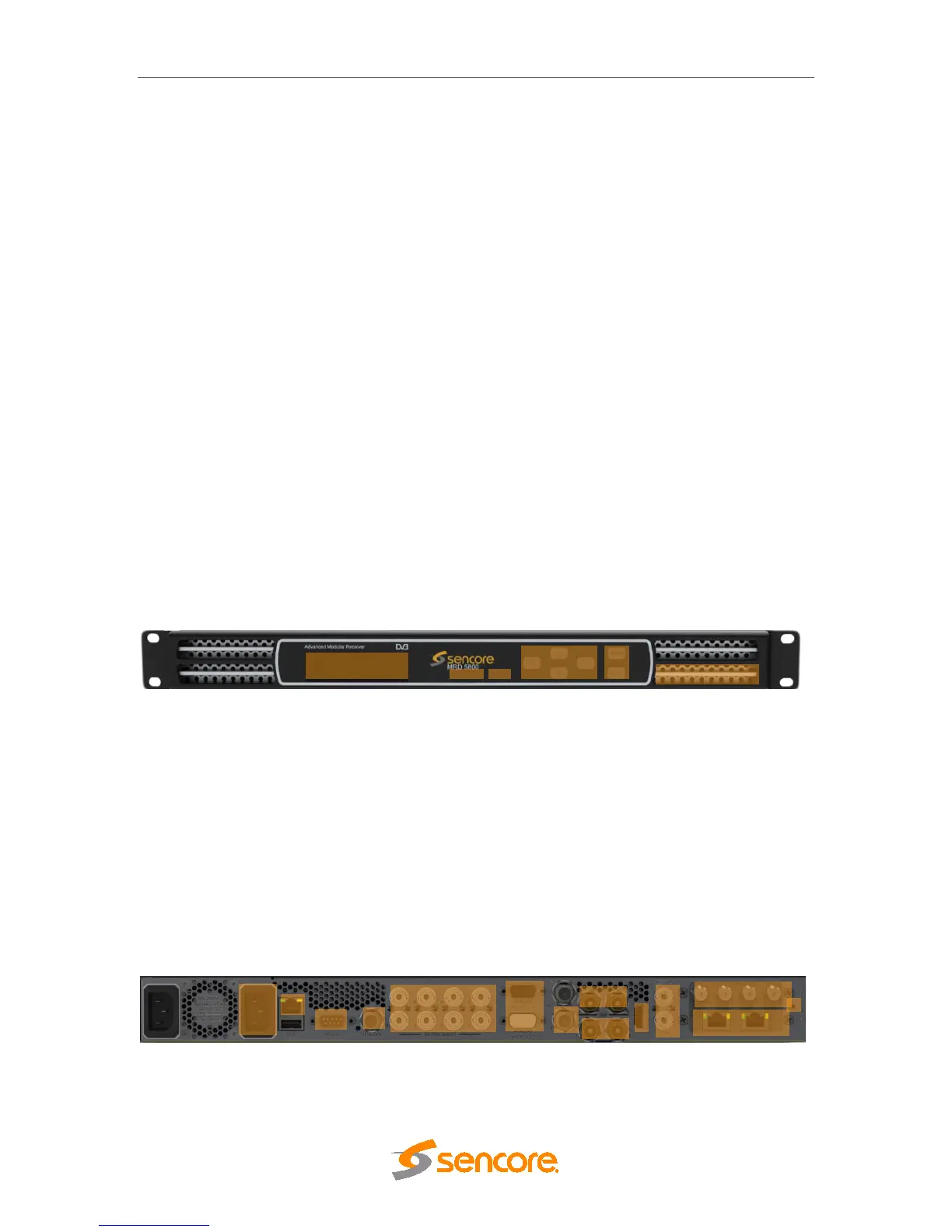

1.2 Front Panel Overview
The MRD 5800 can be controlled from the front panel using the LCD screen and buttons
that are shown below. A detailed description of using the front panel can found in
Section 3.1. All hardware listed below comes standard except for the DVB-CI slots which
are a factory installed option.
1. LCD screen
2. Input Indicator
3. Error Indicator
4. Up, Down, Left, Right buttons
5. Back and Enter Buttons
6. 2x DVB-CI Slots (Factory Option)
1.3 Rear Panel Overview
The MRD 5800 comes standard with all of the hardware listed below except where noted
as a factory installed option. The two option cards available for the MRD 5800 are the
Quad Input DVB-S/S2 card or dual port MPEG/IP Input/Output card. ASI is the standard
input on all MRD 5800 units. The external genlock reference connection is also a factory
installed option.
1. RJ45 Management Port
